Regular Spangle Hot Dipped Galvanized Steel Coil DX51D for Building Material, Roofing, and Appliance Panels

1. Product Overview

Hot dipped galvanized steel coil for building material applications is widely used where corrosion resistance, stable forming performance, and visible galvanized appearance are required. In roofing sheets, wall panels, appliance housings, and light fabricated parts, the zinc coating helps protect the steel surface from moisture exposure during storage, transport, and service.

For this type of product, regular spangle is often selected for standard visible galvanized finish, especially in general construction use where decorative paint-free metallic appearance is acceptable. At the same time, the material can also be processed into panels, strips, and cut sheets for downstream manufacturing.

2. Technical Solution

Product performance is based on the following technical characteristics:

• Continuous hot dip galvanizing with controlled zinc coating mass
• Zinc layer providing barrier protection and sacrificial protection
• Commercial forming grades suitable for roofing and appliance fabrication

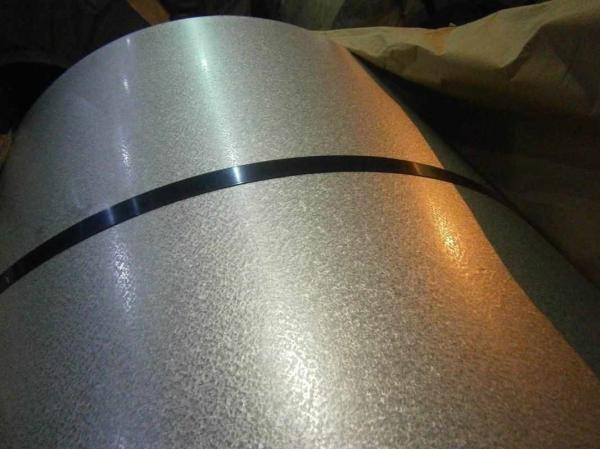

• Regular spangle surface for conventional galvanized appearance
• Passivated, oiled, or anti-finger treatment for storage and downstream processing

In actual use, coating mass affects corrosion resistance, while elongation and tensile properties influence bending, forming, and roll profiling behavior. This makes the material suitable for both sheet conversion and direct profile production.

3. Specifications

4. Application

• Roofing sheets and roof accessories
• Wall cladding and modular building panels
• Garage doors and shutters
• Refrigerator, washing machine, and appliance panels
• Electrical cabinets and industrial enclosures
• General cut-to-length and slit strip fabrication

5. Processing

• Cut-to-length sheet production
• Slitting into narrower strips
• Roll forming for roofing and profile sections
• Bending and folding
• Stamping and punching
• Surface painting or secondary coating when required

6. Advantages

• Regular spangle gives a standard galvanized appearance for visible building use
• Wide zinc coating range supports both indoor and outdoor service environments
• Commercial grades such as DX51D are suitable for common forming operations
• Multiple surface treatments improve storage and downstream handling flexibility
• Standard coil dimensions fit common decoiling, slitting, and roll forming equipment
• Suitable for both construction sheets and appliance panel fabrication

7. How to Choose

• Visible galvanized roofing or wall panels → regular spangle is commonly selected
• Painting or cleaner surface requirement → minimized or zero spangle is usually preferred
• Outdoor or humid environment → higher coating such as 180–275 g/m² or above is often selected
• Appliance panel forming → choose grades and elongation suitable for bending and stamping
• Continuous production lines → confirm width, coil ID, and coil weight with equipment capacity

8. FAQ

Q1: Why is regular spangle commonly used for building materials?
Because it provides a standard galvanized appearance and is widely accepted in roofing and cladding applications.

Q2: Can this coil be used for home appliance panels?
Yes, it is commonly used for refrigerator, washing machine, and other appliance housings after cut-to-length or stamping.

Q3: Can the coil be processed into sheets or strips?
Yes, it can be slit or cut to length according to downstream processing requirements.

Q4: Which surface treatment is suitable for storage before processing?
Passivated or oiled surface is commonly selected to improve temporary corrosion resistance during storage and shipment.

Q5: What standard applies to this galvanized steel coil?
Common reference standards include ASTM A653, JIS G3302, and EN 10147 depending on order specification.
