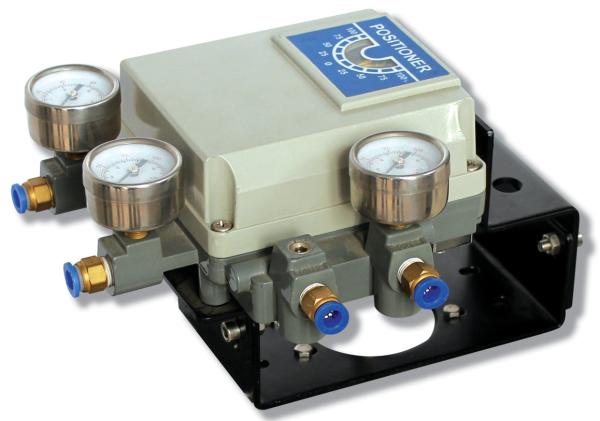

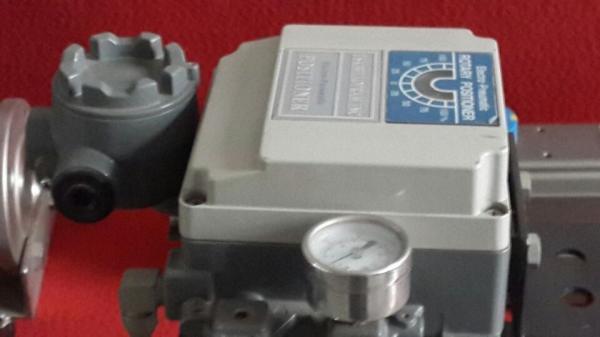

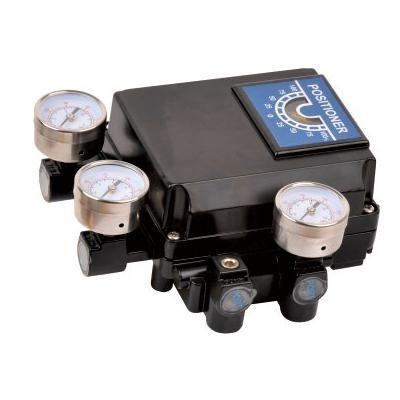

electro pneumatic valve positioner YT1000 R/L for pneumatic valve E/P positioner
electro pneumatic valve positioner YT1000 R/L for pneumatic valve E/P positioner
electro pneumatic valve positioner YT1000 R/L for pneumatic valve E/P positioner
electro pneumatic valve positioner YT1000 R/L for pneumatic valve E/P positioner
electro pneumatic valve positioner YT1000 R/L for pneumatic valve E/P positioner
electro pneumatic valve positioner YT1000 R/L for pneumatic valve E/P positioner
electro pneumatic valve positioner YT1000 R/L for pneumatic valve E/P positioner
electro pneumatic valve positioner YT1000 R/L for pneumatic valve E/P positioner
Specifications
Brand Name :
YT
Model Number :
1000L/R
Certification :
CE ATEX
Place of Origin :
Jiangsu
MOQ :
1 set
Price :
200USD per set
Payment Terms :
T/T
Delivery Time :
3-5 work days
Packaging Details :
cartoon box
input signal :
4-20ma
supply pressure :
1.4-7kgf/㎡(20-100psi)
stroke :
10-105mm
explosion proof :
ExdIIBT6
temperature :
-20—70℃
weight :
2.7KG-2.8KG
Size :
YT1000R/L
Type :
Pneumatic Valve Accessories
Description

electro pneumatic valve positioner YT1000 for pneumatic valve E/P positioner

E/P positioner description:

  • Achieve CE Certificate
  • Pass explosion proof ( ExIa BT6,Exdm BT6,Exdm CT6)authentication
  • Pass Ip66 authentication
  • High anti-vibration (none effective in 5 to 200 Hz)
  • The linking of alr duct is perforated form, convenient for the linking in all direction
  • Convenient for the transform of positive action and counteraction
  • 1/2spllt range available by simple adjustments without changing parts
  • Easy maintenance
  • SImpie structure for feed back connection
  • Economical energy saving

​YT-1000R series can have options of position transmitter (PTM), which outputs 4-20mA, and/or limit switch (L/S).

  1. - It is designed for high durability and performance in high vibration environment.
  2. - Durability has proven after testing of 1 million times minimum.
  3. - Response time is very short and accurate.
  4. - Simple part change can set 1/2 Split Range.
  5. - It is economical due to less air-consumption.
  6. - Direct/Reverse action can be set easily.
  7. - Zero & Span adjustment process is simply.
  8. - Feedback Connection is easy.

​electro pneumatic valve positioner YT1000 R/L for pneumatic valve E/P positioner
