Fluke 2042 Cable locator F2024
Fluke 2042 Cable locator F2024
Specifications
Brand Name :
Fluke
Model Number :
Fluke 2042 Cable locator F2024
Certification :
CCCI
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs
Delivery Time :
15-20days
Packaging Details :
Carton
Description

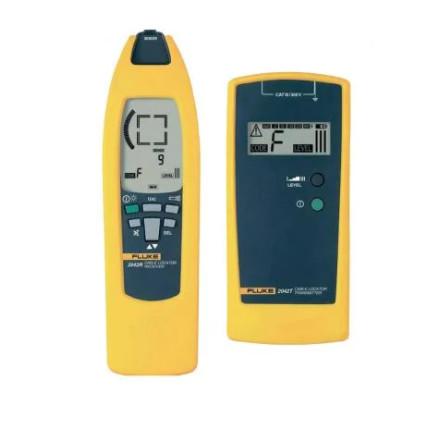

Product overview: Fluke 2042 Cable locator

The multipurpose solution to cable location

The Fluke 2042 is a professional general purpose cable locator. It is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits and locating interruptions and short-circuits in cables and electrical floor heating systems. It can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purpose-made carry case. The receiver also incorporates a torch function for working in dimly lit locations.

Specifications: Fluke 2042 Cable locator

Technical Specifications
Voltage measurement range Transmitter 12 V, 50 V, 120 V, 230 V, 400 V
Frequency range Transmitter 0 - 60 Hz
Output signal Transmitter 125 kHz
Voltage Transmitter Up to 400 V AC/DC
Tracing depth cable location Receiver 0 - 2.5 m wall/underground cables
Main voltage detection Receiver 0 - 0.4 m
Environmental specifications
Operating temperature Transmitter 0 to 40°C
Receiver 0 to 40°C
Storage temperature Transmitter -20°C to +60°C
Receiver -20°C to +60°C
Humidity (without condensation) Transmitter Max. 80% relative
Receiver Max. 80% relative
Operating altitude Transmitter Up to 2000 m
Receiver Up to 2000 m
Safety specifications
Electrical safety EN 61010-1
Overvoltage category Cat. III 300 V
Mechanical and general specifications
Size Transmitter 190 x 85 x 50 mm
Receiver 250 x 65 x 45mm
Weight Transmitter 0.45 kg
Receiver 0.36 kg
Batteries Transmitter 6 pc Batteries 1.5V
Receiver 1 pc Battery 9V
Warranty 2 years
