Fluke 1AC II Non-Contact Voltage Tester F1AC II
Fluke 1AC II Non-Contact Voltage Tester F1AC II
Specifications
Brand Name :
Fluke
Model Number :
Fluke 1AC II Non-Contact Voltage Tester F1AC II
Certification :
CCCI
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs
Delivery Time :
15-20days
Packaging Details :
Carton
Description

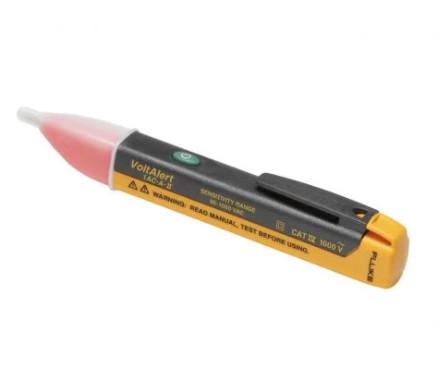

Product overview: Fluke 1AC II Non-Contact Voltage Tester

The pocket-sized voltage detector

The portable 1AC II non-contact voltage tester from Fluke are easy to use – just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there's voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home and even detect miswires of an electrical outlet.

The tip glows red and a beeper sounds when voltage is detected

  • A loud, easy to hear beeper will sound and the tip will glow red when voltage is detected
  • Optionally, the beeper can be disabled for use in quiet environments

Continuous self-test so you always know it’s working

  • When the tip blinks red you know it’s working properly
  • Provides a continual visual indication that the 1AC II is on

90 V to 1000 V AC or 200 V to 1000 V AC voltage detection range for wide application use

  • Wide voltage detection range allows for use in a broad range of applications
  • Also available in a low voltage model from 20 V to 90 V AC for controls circuits

Safety features

  • Rated to CAT IV 1000 V for added protection
  • CE and CSA approved

Additional tool features

  • Audible/Silent mode for added convenience in quiet environments
  • On/Off button
  • Batteries included
  • 2 year warranty

Specifications: Fluke 1AC II Non-Contact Voltage Tester

Specifications
Operating Principles Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage.
Voltage sensing ranges Nominally, 90 V AC to 1000 V AC
Detector tip style Flat-tip
Light source One high intensity red LED
Agency Approvals ‍‍‍
Safety IEC 61010-1: Pollution Degree 2, IEC 61010-2-030: CAT IV 1000 V
EMC IEC 61326-1: Portable
IP Rating IP 40
Operating Temperature -10°C to 50°C (-14°F to 122°F)
Operating Humidity Ranges 0% to 95% (0°C to 30°C)
0% to 75% (30°C to 40°C)
0% to 45% (40 to 55°C)
Operating Altitude 3000 m
Cleaning Clean with damp cloth
Batteries 2 AAA alkaline batteries included
Battery Life Typical battery life of greater than 1 year
Warranty Period Two years
Product does not respond to random electrostatic discharge.
