The XINGJI PVC ceiling panel program covers 12 models from 240mm to 300mm width plus a 595x595mm square ceiling tile. The range includes flat joint, V-groove, center groove, double groove, wave, 3-section, 4-section, 10-groove and square tile designs, so any kitchen, bathroom, corridor, balcony or living room ceiling can be matched with one program.
All panels are made of waterproof PVC ceiling-grade material, lightweight at 2.2 - 3.2 kg/m², moisture resistant and fire retardant. Surfaces are available in white and wood grain. Panels install fast with the clip system on wooden battens and are easy to wipe clean.
Combined orders of mixed models are welcome with low MOQ. Custom colors, patterns and OEM branding available.
| Item | Specification |
| Material | PVC (ceiling grade) |
| Widths | 240 / 250 / 300 mm + 595x595 mm square tile |
| Thickness | 7 / 7.5 / 8 / 8.5 / 9 mm |
| Weight | 2.2 - 3.2 kg/m² |
| Surface | White / wood grain |
| Installation | Clip system on wooden battens |

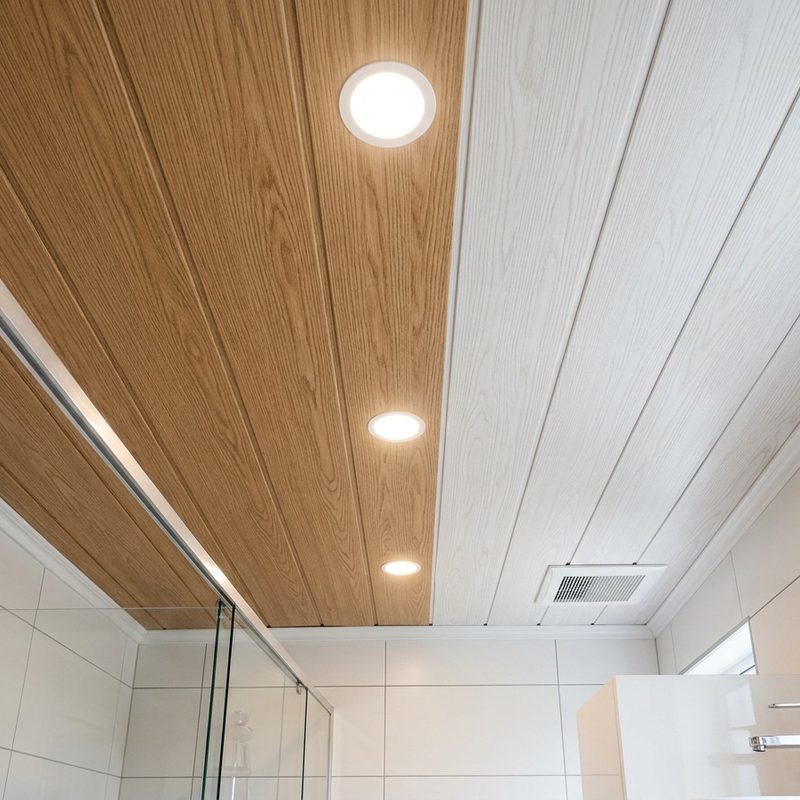

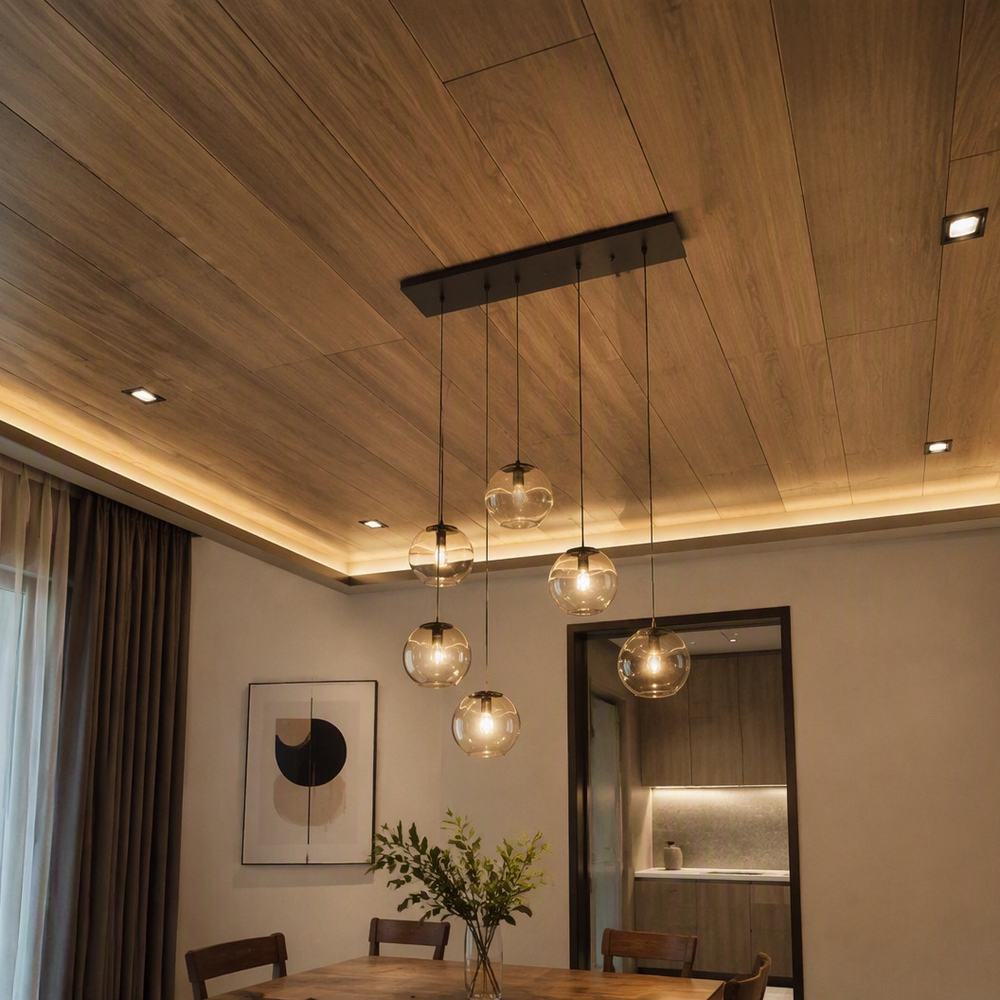

| Application | Kitchen, bathroom, corridor, balcony, living room ceiling |
| Certification | CE / RoHS (TBD) |

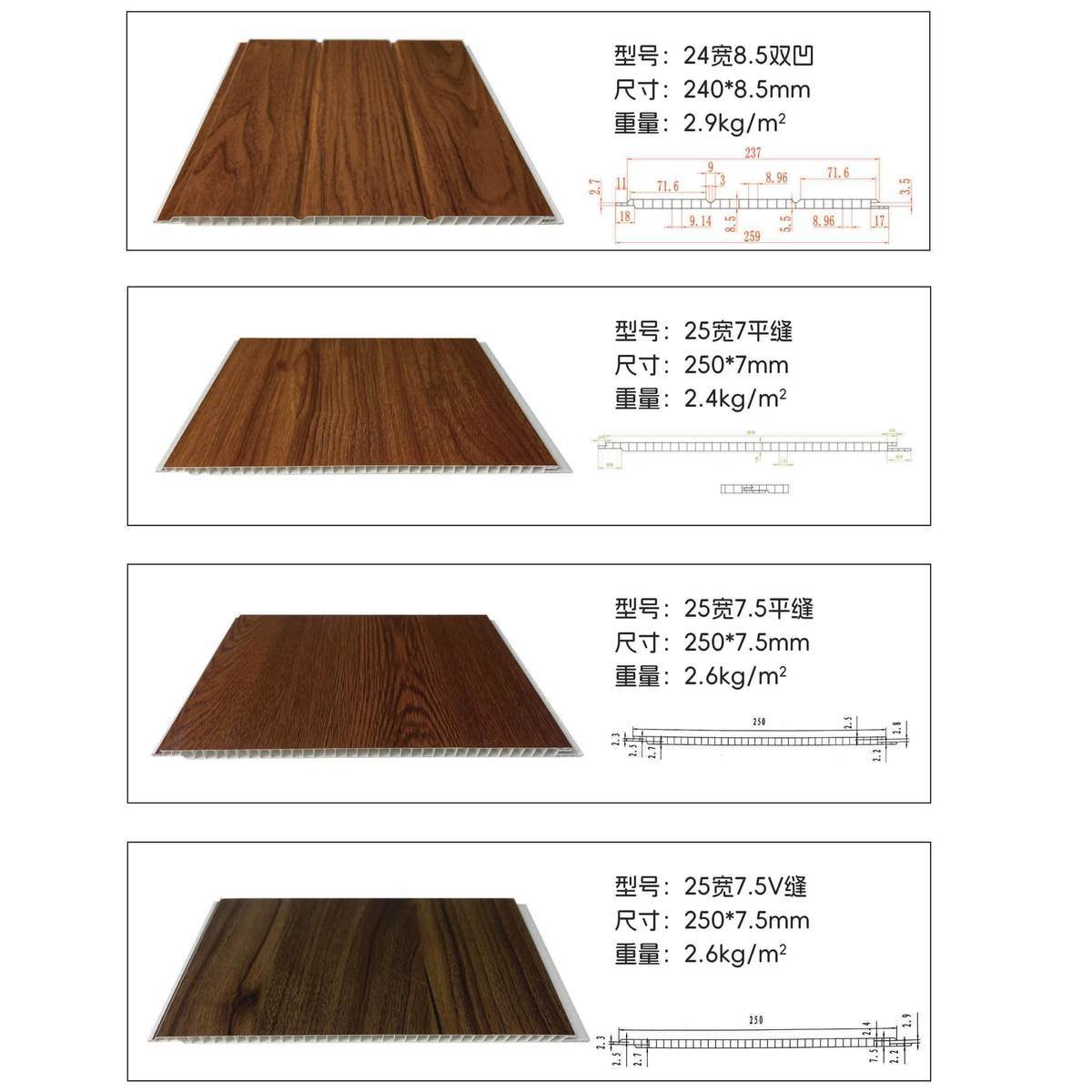

| Model | Description | Size | Weight |
| 240-8.5 double groove | 240mm double groove panel | 240x8.5mm | 2.9 kg/m² |
| 250-7 flat | 250mm flat panel | 250x7mm | 2.4 kg/m² |
| 250-7.5 flat | 250mm flat panel 7.5mm | 250x7.5mm | 2.6 kg/m² |
| 250-7.5 V-groove | 250mm V-groove panel | 250x7.5mm | 2.6 kg/m² |

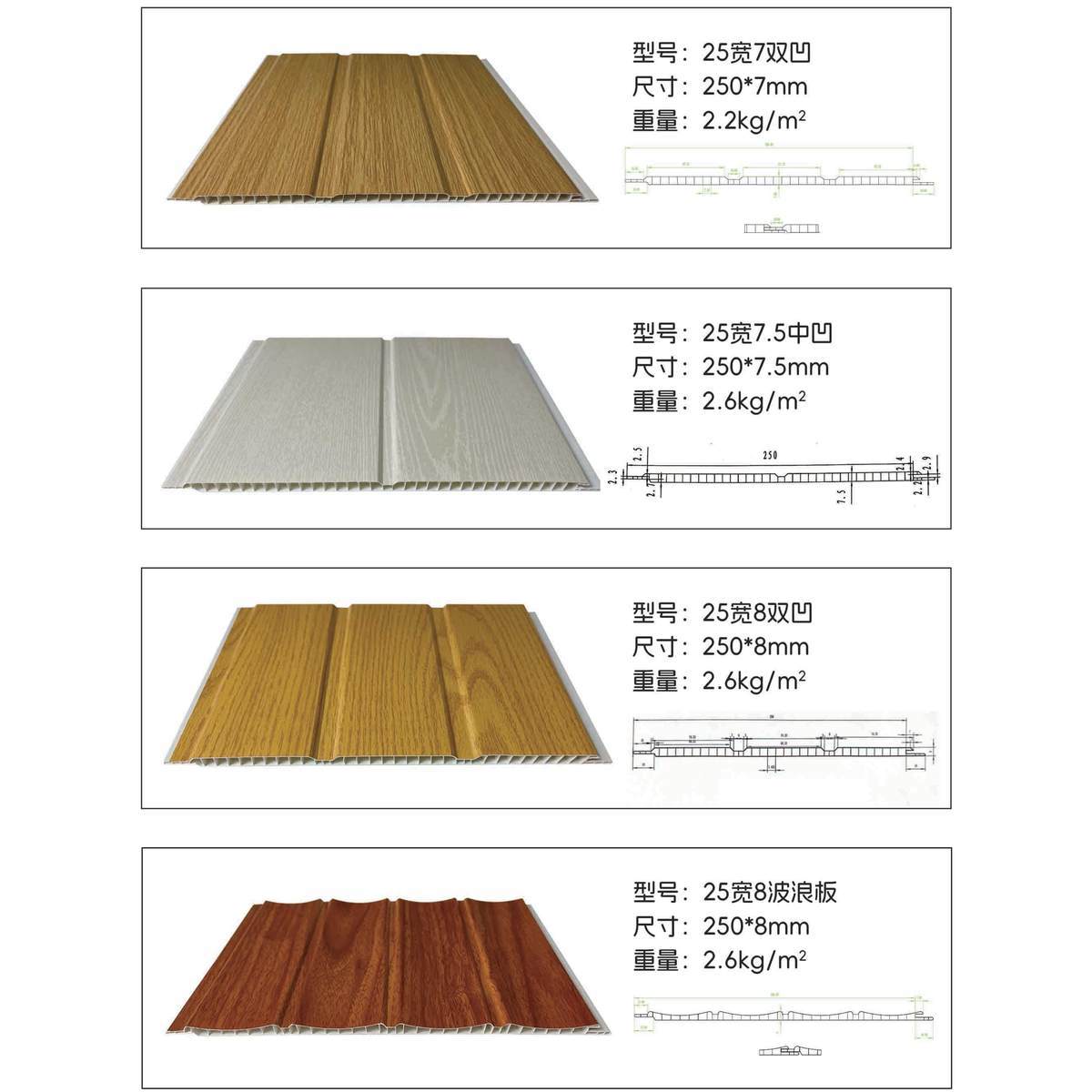

| 250-7 double groove | 250mm double groove panel | 250x7mm | 2.2 kg/m² |
| 250-7.5 center groove | 250mm center groove panel | 250x7.5mm | 2.6 kg/m² |
| 250-8 double groove | 250mm double groove panel 8mm | 250x8mm | 2.6 kg/m² |
| 250-8 wave | 250mm wave panel | 250x8mm | 2.6 kg/m² |

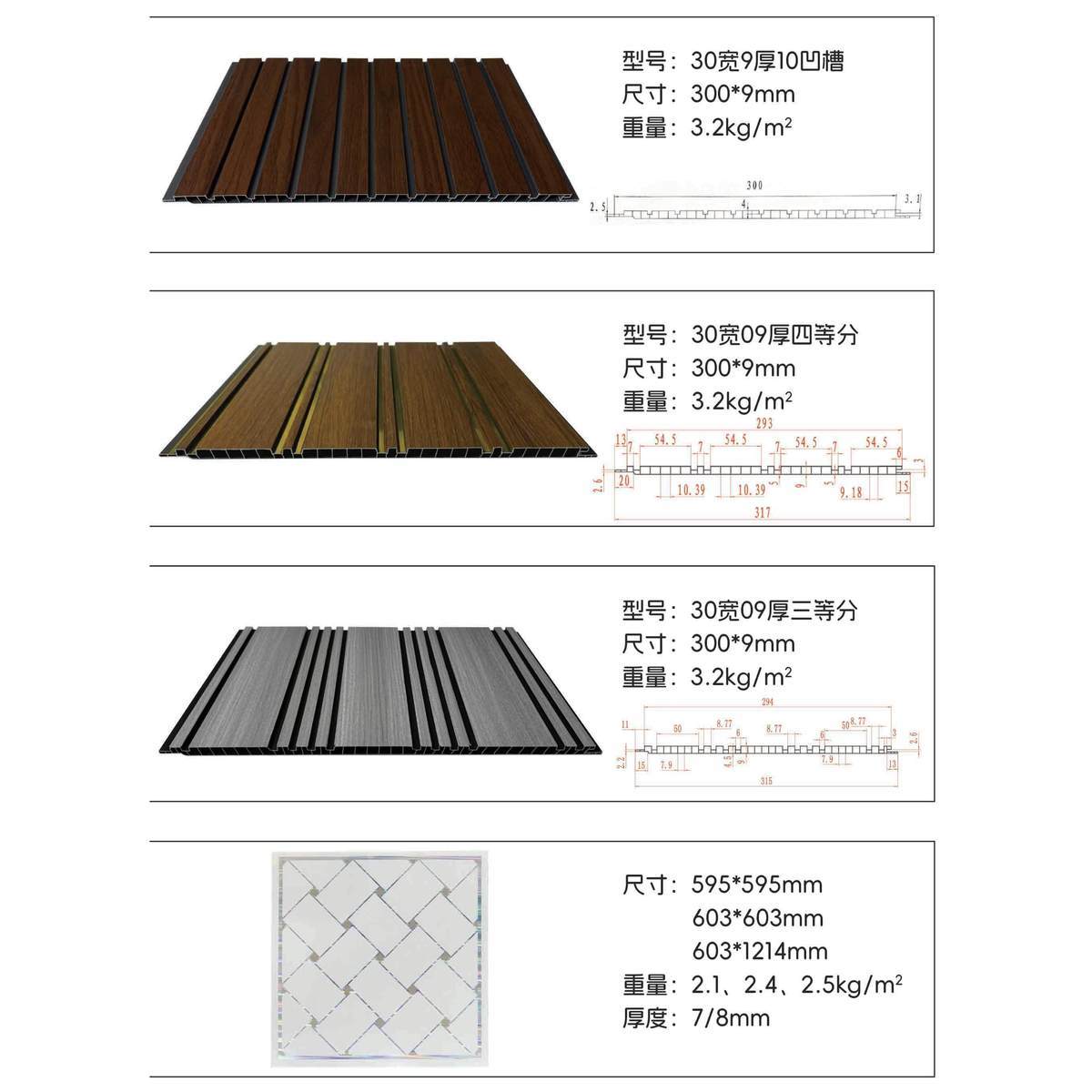

| 300-9 ten groove | 300mm 10-groove panel 9mm | 300x9mm | 3.2 kg/m² |
| 300-9 four-section | 300mm 4-section panel | 300x9mm | 3.2 kg/m² |
| 300-9 three-section | 300mm 3-section panel | 300x9mm | 3.2 kg/m² |
| Square tile 595x595 | 595x595mm square ceiling tile | 595x595 / 603x603 / 603x1214mm | 2.1 / 2.4 / 2.5 kg/m² |
Q1. Which panel for kitchen ceiling?
All models are waterproof; the flat and V-groove series are the most common for kitchens.
Q2. Can models be mixed in one container?
Yes, mixed models are acceptable with low MOQ per model.
Q3. What about the square tile?

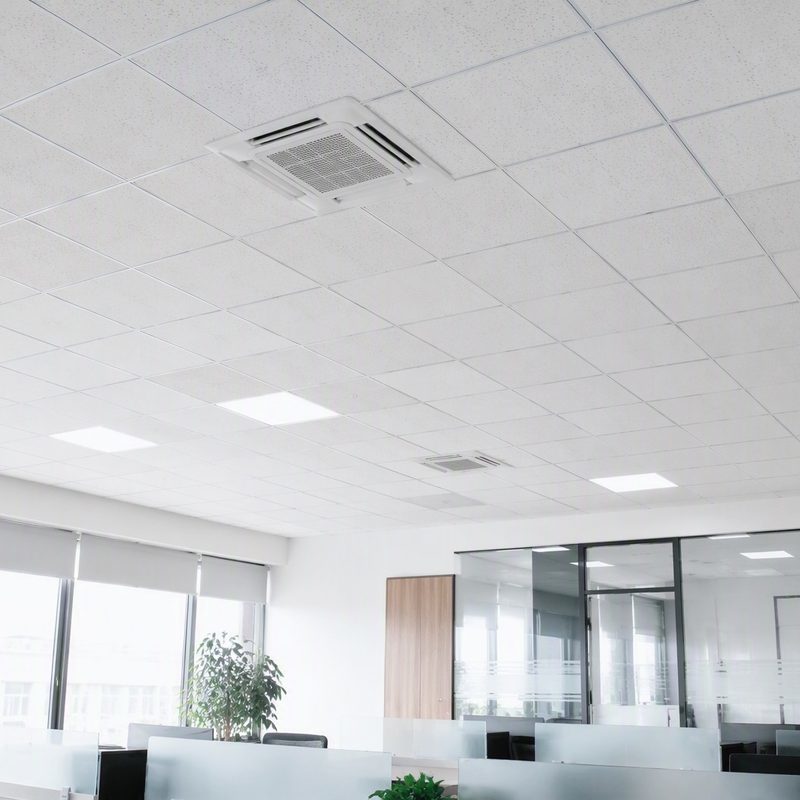

The 595x595mm square ceiling tile is available for grid ceilings.
Q4. Sample?
Yes, freight by buyer.
Q5. Lead time?
Sample 3-5 days; bulk 15-25 days.
Q6. Custom patterns?
Custom colors and printed patterns available.
