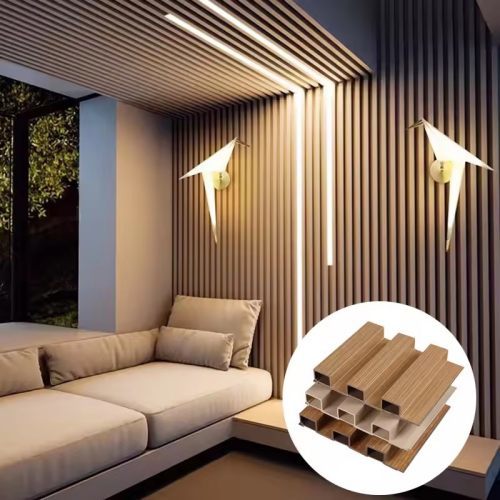

Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel
Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel
Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel
Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel
Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel
Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel
Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel
Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel
Specifications
Certification :
SGS,ISO
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Color options :
Multiple colors available
Water resistance :
Waterproof
Water Absorption Rate :
≤0.5%
Model Number :
FS-160-24
MOQ :
200meters per color or negotiation
Material Composition :
60% Reclaimed Hardwood Fiber + 30% Eco-HDPE + 10% Non-toxic Additives
Brand Name :
Haining Vanshine
Packaging Details :
Carton packing,9960pcs/40HQ
Fire Retardancy Rating :
Class B-s1, d0
Fire resistance :
Class B1 fire retardant
Material :
Wood Plastic Composite
Colorfastness :
Grade ≥4
Supply Ability :
100000pcs per week
Heavy Metals :
0% Detected
Price :
$0.9or negotiation
Delivery Time :
5-7working days
Place of Origin :
Zhejiang，China
Length :
2.9m, 3m or as customer's demand
Formaldehyde Emission :
≤ 0.05 mg/m³
Linear Thermal Expansion :
≤0.15%
Description
Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel
Product Summary
This next-generation architectural fluted louver system is engineered specifically to eliminate visible section joints and deliver a completely seamless, continuous linear expanse. Utilizing high-precision thermal micro-coextrusion, the traditional interlocking mechanism is upgraded into a zero-gap hidden dual-clasp tracks system, forcing adjoining profiles to merge into a singular, unbroken rhythm. Enhanced by a micro-groove geometric pattern, the panel creates an organic, "breathing" linear aesthetic that flows flawlessly around corners and integrates with hidden trim profiles.
Key Features

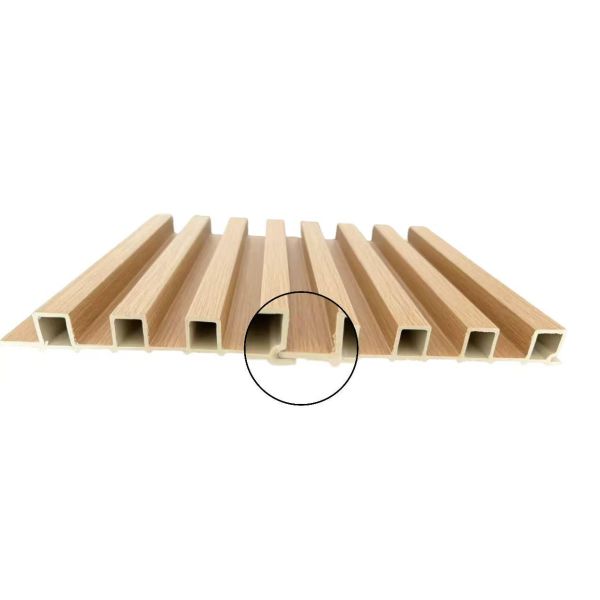

  • Zero-Gap Seamless Clasp System
    Engineered with a high-precision interlocking lip, this interior WPC wall panel creates a perfectly continuous horizontal flow, making the transition between panels entirely invisible to the naked eye.
  • Integrated Micro-Trim Edging
    Specially designed with dedicated matching 90-degree corner trims and start-end clips, the fluted pattern wraps effortlessly around pillars and sharp architectural edges without exposed plastic seams.
  • Micro-Ventilated Breathing Pattern
    The fluted profile utilizes a refined, tight linear frequency that mimics natural micro-slat carpentry, softening indoor shadows and allowing long hallway walls to "breathe" visually without causing optical fatigue.
  • Snap-Lock Fast-Fix Foundation
    Featuring an extended, reinforced rear nail-flange, carpenters can secure the profile directly to wall battens using hidden screws, cutting manual installation steps while keeping the outer facade free of blemishes.
Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel
Technical Specifications
No. Test Item Test Method Specification & Performance
1 Material Composition Manufacturing Standards 60% Reclaimed Hardwood Fiber + 30% Eco-HDPE + 10% Non-toxic Additives
2 Formaldehyde Emission EN 717-1 / SGS ≤ 0.05 mg/m³ (EU E0 Standard / Passed)
3 Water Absorption Rate ASTM D1037 ≤0.5% (24-hour full immersion testing)
4 Fire Retardancy Rating EN 13501-1 Class B-s1, d0 (Self-extinguishing, low smoke density)
5 Linear Thermal Expansion ASTM D696 ≤0.15% (Under severe global temperature changes)
6 Colorfastness (UV Aging) ISO 105-A02 / ASTM Grade ≥4 (After 2,000 hours of accelerated xenon-arc exposure)
7 Heavy Metals & SVHCs RoHS 2.0 / REACH 0% Detected (Lead, Mercury, Cadmium, Asbestos free)
Certification
Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel

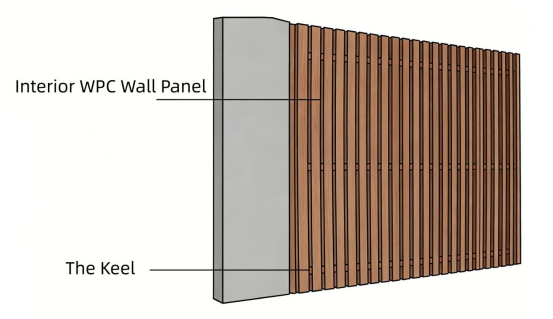

Installation Guide
Dedicated Metal Clip Method
Applicable Surfaces: Used in conjunction with light steel framing or timber substrates, ideal for high-end commercial projects.
Core Tools: Stainless steel mounting clips, self-tapping screws.
Step-by-Step Installation:
  • Positioning the First Panel: Secure the position of the starting panel.
  • Fixing the Clips: Slide the stainless steel clips onto the panel's side lip, then drive self-tapping screws through the clip holes into the batten or substrate.
  • Engaging the Next Panel: Slide the next panel's groove in; it will completely cover and hide the clip and screw.
Key Installation Tips:
  • Corner Trimming: For 90-degree external corners, you can do a 45° miter joint or use matching L-shape trim profiles for a clean finish.
  • Handling Switches and Outlets: When dealing with switch plates, pre-cut the openings using a hole saw or hand saw. Because of the panel's thickness, electrical box extensions (or longer screws) are usually required to flush the switch plate with the fluted surface.
Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel

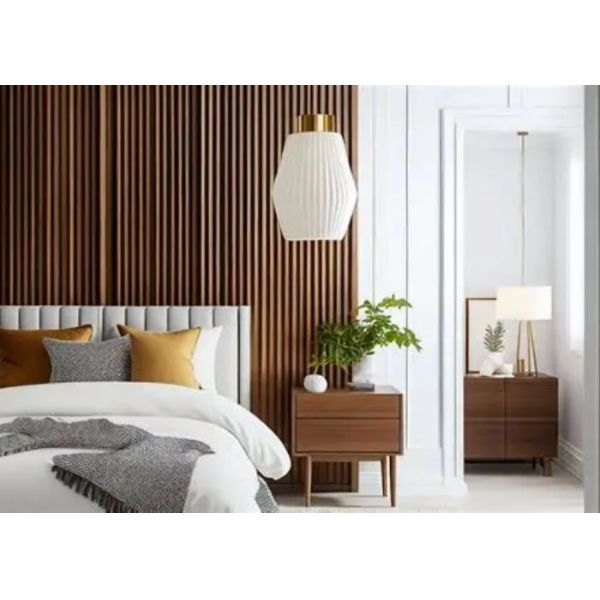

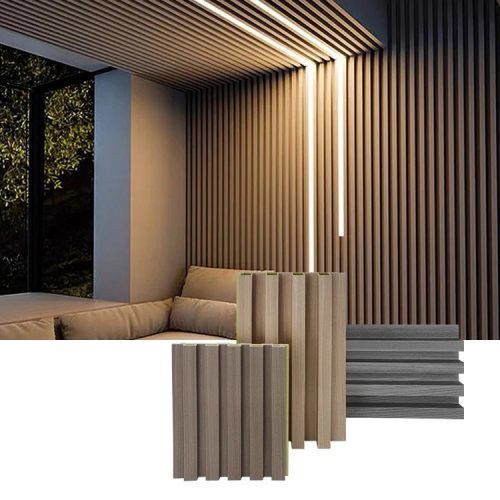

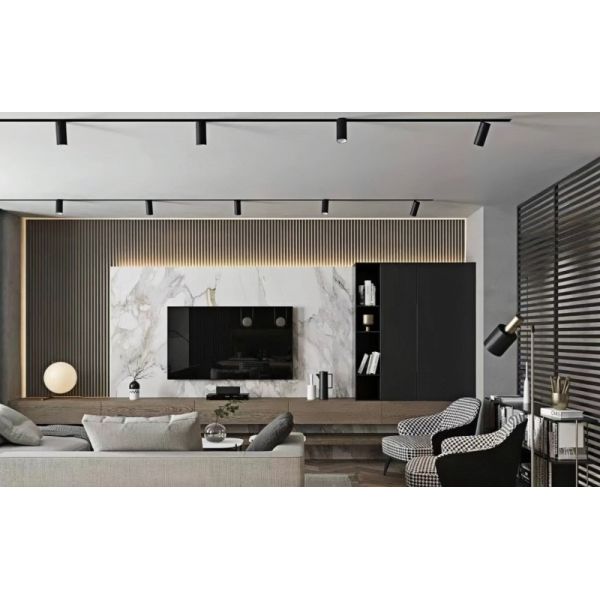

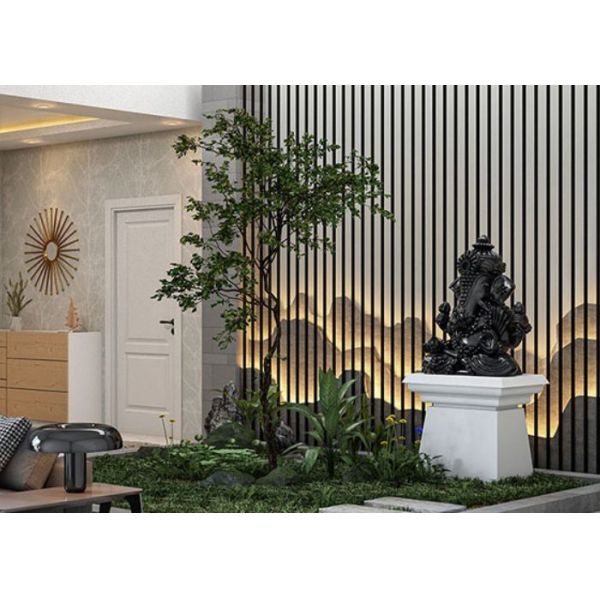

Application Gallery
Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel

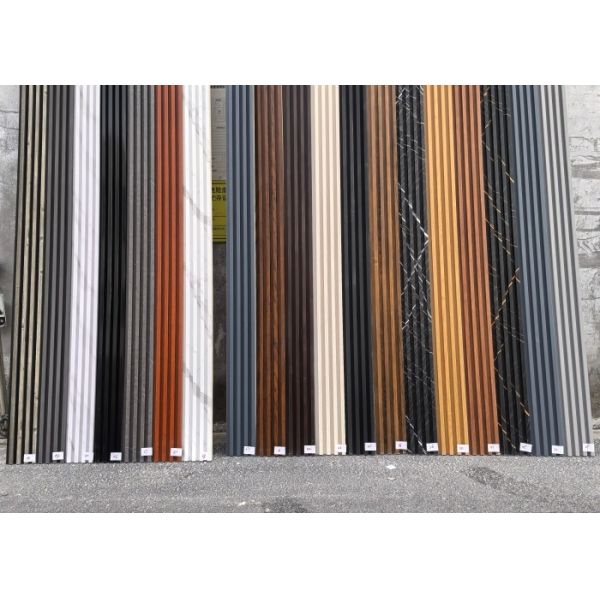

Available Colors
Zero Gap Seamless Interior Fluted WPC Wall Panels Cladding Louver WPC Wall Panel
Frequently Asked Questions
Will the joints of this interior WPC wall panel look obvious over time if the building settles slightly?
No, that is the main upgrade of our zero-gap clasp system. Standard tongue-and-groove profiles have shallow tracks that easily separate and show gaps if the wall shifts. Our interior WPC wall panel features deep-nesting interlocking dual clasps that flex within the joint to absorb micro-movements, ensuring the wall facade looks completely monolithic and seamless for life.
How do you handle installation on pillars or curved walls with this 160mm fluted profile?
For structural square pillars and 90-degree wall corners, we offer precision-matched co-extruded corner profiles that click directly into the 160mm panel, maintaining a continuous fluted rhythm. If you are wrapping a gentle architectural curve or a wave-shaped wall, the high-flex polymer core allows the panel to back-score and bend slightly to hug structural curves without snapping.
Do I need to buy aluminum edge trims to close the top and bottom of the wall?
No aluminum trims are necessary. We have developed a complete ecosystem of color-matched WPC start-clips, top-caps, and skirting profiles. This allows the fluted design to stop perfectly against white ceilings or hardwood floors with zero gap, providing a clean, upscale minimalist aesthetic that contractors and high-end designers love.
Because the seams are zero-gap and hidden, does it make removing a damaged panel in the middle of the wall impossible?
While the inter-locking system is incredibly secure once clicked together, the progressive snap-lock design means panels are installed in a sequential order. If a middle panel is severely damaged by an extreme accident, a professional carpenter can easily cut out the damaged section along its recessed groove shadow line and snap-in a replacement tongue profile without tearing down the entire wall.
