Lightweight Aluminum Composite Panels For Outdoor Wall Cladding

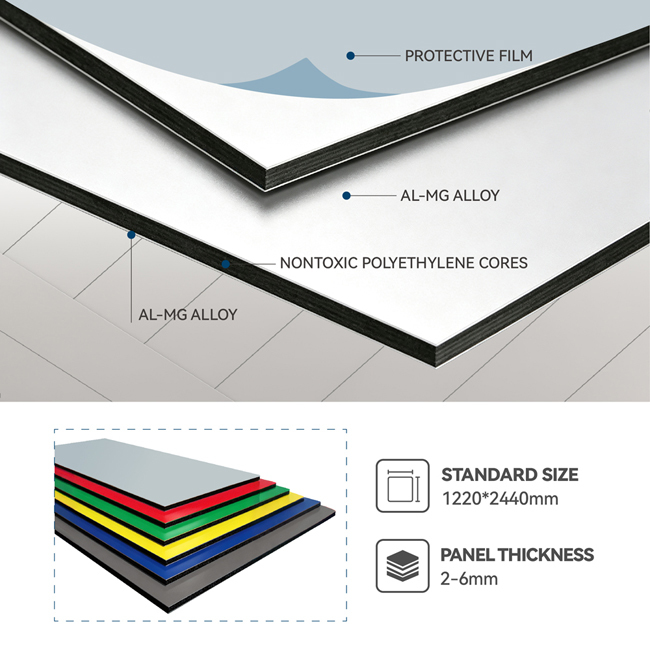

1) Material:
A) Front : aluminium alloy sheet coated fluoro-carbon resin (PVDF) with Nano lacquer.
B) Core: nontox low density polyethylene.
C) Back: aluminium alloy sheet coated with polyester resin painting.
D) Surface coating thickness: 32μ±1μ.
E) Aluminium alloy: 3003 H24.
F) Sheet thickness: 0.3mm,0.4mm,0.5mm .
2) Dimensions:
A) Thickness: 3mm,4mm,6mm,8mm,10mm.
B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max).
C) Length: 2440mm,3050mm,3200mm( max:6000mm).
D) Weight: 5.5kg/sqm baesd on 0.5/4mm thickness.
E) Standard size:1220*2440mm.
F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm.
G) Non-stanard size are available according to requirement.
3) Standard:
A) West Europe standard ( Germany DIN Standard).
B) The EAST Europe standard ( Russian standard ).
C) The commonweathlth standard (U.K BS Standard ).
D) The North America ASTM standard.
4) Sonsill® ACP compared with different products( Lightness / Rigidity ):
The composite structure of Sonsill® results in an impressive strength-to-weight ratio, even when comparing large panel sizes.
Despite its low weight, which makes Sonsill® easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes. Comparison of thickness and weight of panels with equal rigidity.
5) Sonsill® ACP compared with solid aluminium:
Required thickness and actual weights of panels with same rigidity
| Sonsill® ACP | Aluminium | ||||
| Rigidity (E J) | Section modulus | Thickness | Weight | Thickness | Weight |
| 1250 kN cm2/m | 1.25 cm3/m | 3 mm | 4.5kg/m2 | 2.7 mm | 7.3kg/m2 |
| 2400 kN cm2/m | 1.75 cm3/m | 4 mm | 5.5kg/m2 | 3.3 mm | 8.9kg/m2 |
● Extremely flat surface
● Lightweight yet superb rigidity
● Unlimited color range and versatile finishes
● Innovative digital printable panel with high Dyne and easy-peel film
● Excellent mechanical formability allowing easy folding, curving and shaping
● Outstanding resistance against weather, radiation, chemical and pollution
● Environmentally friendly production and trouble-free maintenance
