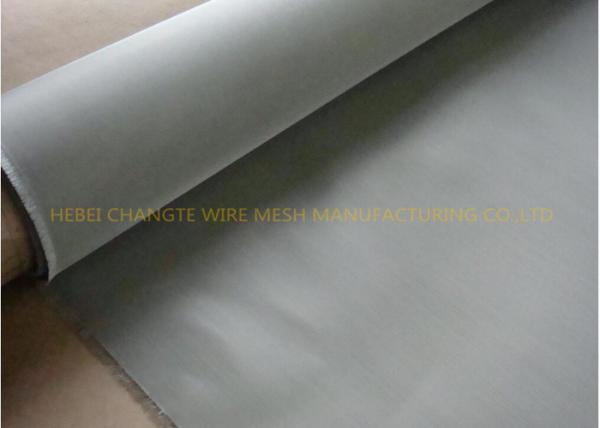

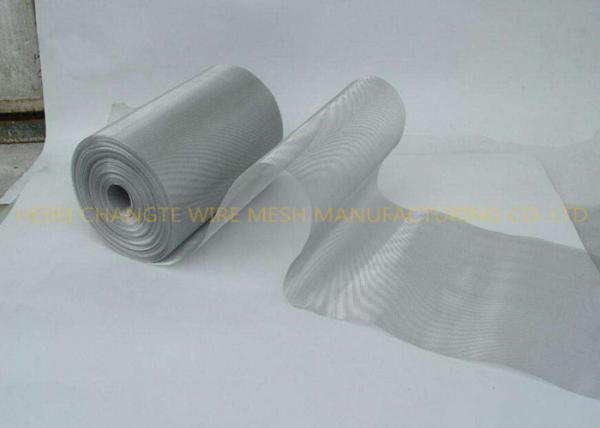

304 316 316l 2-635 5MM Stainless Steel Screen Wire Mesh
304 316 316l 2-635 5MM Stainless Steel Screen Wire Mesh
304 316 316l 2-635 5MM Stainless Steel Screen Wire Mesh
304 316 316l 2-635 5MM Stainless Steel Screen Wire Mesh
304 316 316l 2-635 5MM Stainless Steel Screen Wire Mesh
304 316 316l 2-635 5MM Stainless Steel Screen Wire Mesh
Specifications
Brand Name :
CHANGTE
Model Number :
S-14
Certification :
ISO9001:2015
Place of Origin :
CHINA
MOQ :
10M
Price :
5.2USD/M
Payment Terms :
L/C, T/T
Supply Ability :
10000M
Delivery Time :
3-10 days
Packaging Details :
box or pallet
Product name :
Stainless Steel Security Wire Mesh,SS304 316 dutch weave micronic stainless steel wire mesh
Mesh :
1-635mesh
Wire diameter :
0.1-5MM,0.02-2mm
Width :
0.5m-3m or customized
Length :
1-30m,30m-100m or customerized
Weave style :
Plain Weave,Plain/Twill Weave,Dutch/Plain/Twill Weave
Technique :
Woven
Application :
Filters,Woven Wire Mesh,mining
Description

304 316 316L 2-635 Stainless Steel Screen Wire Mesh

1. Feature of the stainless steel wire mesh

Corrosion resistance.

Anti-acid and alkali resistance

Anti-high temperture.

Good filter performance.

Long using life

2. Application of the stainelss steel wire mesh

In acid, alkali environment conditions sieving and filtering.

Petroleum industry as mud mesh,.

Chemical fiber industry as screen mesh.

Plating industry as acid cleaning mesh.

3. Uses of wire mesh include:
Sizing
Particle separation and filtering
Particulate sifting
Safety and equipment protection.
Industries served include aerospace, automotive, construction and oil & gas.


4. Custom manufacturing services include:
Wide selection of metals and alloys, including special wire selections such as cable mesh and plastic-coated wire.
Extra wide wire cloth, up to 240" width for selected items
Wire cloth in long rolls, up to 2000' long coils or rolls with no seams
Woven edges
Full range of conversion services, including slitting, shearing, calendaring, stretching and annealing.
Oblong opening and high aspect ratio wire cloth designs are available.

erial

common material:stainelss steel 304 316 904L 2205 2207 430 310 317 309 etc.

304L 316L

special material:pure nickel wire, Ni-cr wire, monel, inconel wire etc.
wire diameter 0.023-2.8mm
weaving type

plain weave, twill weave and dutch weave, bamboo weave

Hollander weave etc.
mesh counts 1-2300meshes
micron size 500 400 300 200 100 80 70 25 micron
technique woven wire mesh
mesh rolls size 1x30m 2x30m 1.524x30m 0.914x30m etc.
sample free and avaliable
surface flat and bright

Plain weave mesh Specifications of mesh
Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 0.08 2.03 0.92 23.37 84.6 41.1
2X2 0.063 1.6 0.437 11.1 76.4 51.2
3X3 0.054 1.37 0.279 7.09 70.1 56.7
4X4 0.063 1.6 0.187 4.75 56 104.8
4X4 0.047 1.19 0.203 5.16 65.9 57.6
5X5 0.041 1.04 0.159 4.04 63.2 54.9
6X6 0.035 0.89 0.132 3.35 62.7 48.1
8X8 0.028 0.71 0.097 2.46 60.2 41.1
10X10 0.025 0.64 0.075 1.91 56.3 41.2
10X10 0.02 0.51 0.08 2.03 64 26.1
12X12 0.023 0.584 0.06 1.52 51.8 42.2
12X12 0.02 0.508 0.063 1.6 57.2 31.6
14X14 0.023 0.584 0.048 1.22 45.2 49.8
14X14 0.02 0.508 0.051 1.3 51 37.2
16X16 0.018 0.457 0.0445 1.13 50.7 34.5
18X18 0.017 0.432 0.0386 0.98 48.3 34.8
20X20 0.02 0.508 0.03 0.76 36 55.2
20X20 0.016 0.406 0.034 0.86 46.2 34.4
24X24 0.014 0.356 0.0277 0.7 44.2 31.8
30X30 0.013 0.33 0.0203 0.52 37.1 34.8
30X30 0.012 0.305 0.0213 0.54 40.8 29.4
30X30 0.009 0.229 0.0243 0.62 53.1 16.1
35X35 0.011 0.279 0.0176 0.45 37.9 29
40X40 0.01 0.254 0.015 0.38 36 27.6
50X50 0.009 0.229 0.011 0.28 30.3 28.4
50X50 0.008 0.203 0.012 0.31 36 22.1
60X60 0.0075 0.191 0.0092 0.23 30.5 23.7
60X60 0.007 0.178 0.0097 0.25 33.9 20.4
70X70 0.0065 0.165 0.0078 0.2 29.8 20.8
80X80 0.0065 0.165 0.006 0.15 23 23.2
80X80 0.0055 0.14 0.007 0.18 31.4 16.9
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325X325 0.0014 0.0356 0.0017 0.0432 30 4.4
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8
635X635 0.0008 0.0203 0.0008 0.0203 25 2.63
