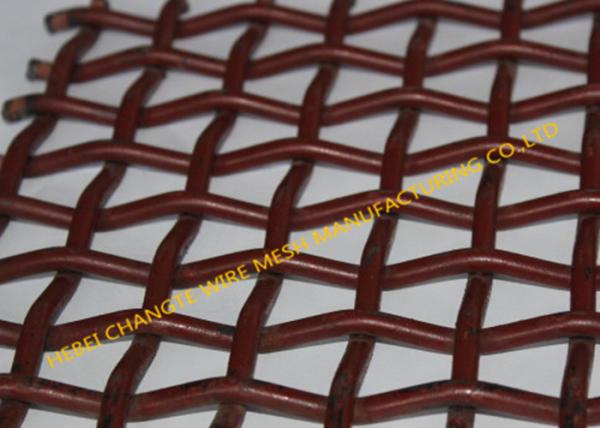

Pre Crimped 65Mn SWG 8 high Carbon Steel Wire Screen
Pre Crimped 65Mn SWG 8 high Carbon Steel Wire Screen
Pre Crimped 65Mn SWG 8 high Carbon Steel Wire Screen
Pre Crimped 65Mn SWG 8 high Carbon Steel Wire Screen
Specifications
Brand Name :
CHANGTE
Model Number :
CT-C02
Certification :
ISO9001:2015
Place of Origin :
HEBEI ,CHINA
MOQ :
1m
Price :
3.5USD/M
Payment Terms :
Determined in consultation
Supply Ability :
500tons
Delivery Time :
5-8 days
Packaging Details :
Wooden pallet, Tito tray
Material :
45#,65Mn
Product name :
low carbon galvanized steel wire,high carbon wire,steel wire from scrap tires,lifting carbon 3mm pvc coated galvanized steel wire rope,Galvanized Iron Wire
Diameter :
0.08mm-13mm
Usage :
for Vibrating, for Mining Industry, Sieve, Protect
Packing :
Roll Packing,Wooden box
Sell Specification :
1.5X2.0m, 2.07X2.47m
Type :
Main Sieving Mesh
Application :
Construction Wire Mesh, Protecting Mesh, Filter
Description

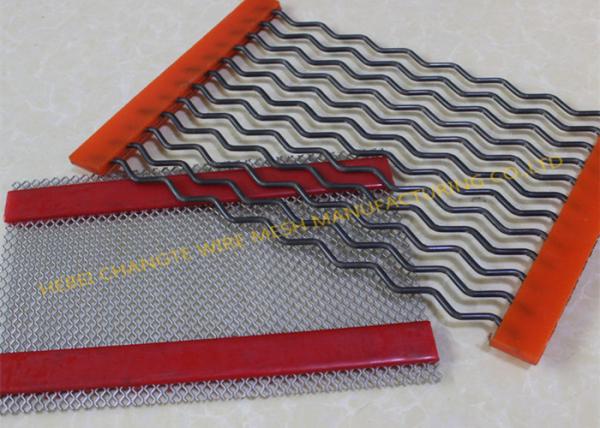

Heavy Duty Double Weave Spring Carbon Steel Wire Screen Woven Wire Mesh Screen

Product introduction

1. Material: Stainless steel wire, high carbon steel, carbon steel, nickel steel and nonferrous wire.
2. Weaving type: Plain, intermediate, crimped
3. Wire diameter: 0.05-22mm
4. Used in industry

Wire Gauge (SWG) Wire Diameter (mm) Mesh/ Inch Aperture (mm) Weight (kg)
6 4.8 1 20.6 11.5
8 4.05 2 9 16.5
10 3.2 2 10 10.5
12 2.6 3 5.9 10.5
14 2.0 3 6.5 6
16 1.6 4 5 5.5
17 1.4 5 5.1 5.0
18 1.2 5 4 3.6
19 1.0 6 3.2 3.0
21 0.8 7 2.8 2.3
22 0.7 8 2.5 2


Process:

Made with pre-crimped wire in the method of locked crimp, double plain weave, single wave weave, double plain weave, double crimp, space weave.


Application:

Screening in mine, petroleum, chemical, building and food industry. Used in machinery parts, packing, barbecue, hardware products, handicrafts, wire baskets, food machinery, road and railway, etc. Also used in screening and grading of solid materials and filtering of liquid and quarry, etc.

our services

1.We could make small samples for customer before the order according to your request .

2.If client come to visit us ,we shall pick you up at beijing airport ,arrange hotels,and send you return to the airport on time .

3.We shall attach importance to your feedback to our products or company .

WIRE DIA APERTURE WEIGHT
0.75 1.00 4.29
1.00 1.50 5.33
1.50 2.00 8.57
2.00 3.00 10.67
3.00 4.00 17.15
3.00 5.00 15.00
3.50 6.00 17.20
4.00 8.00 17.44
4.00 10.00 14.95
4.50 12.00 16.05
4.50 12.50 15.58
4.50 14.00 14.32
5.00 16.00 15.57
5.50 18.00 16.84
5.50 19.00 16.15
5.50 20.00 15.52
6.50 22.00 19.39
6.50 24.00 18.12
6.50 25.00 17.55
6.50 28.00 16.02
7.00 32.00 16.44
7.50 35.00 17.31
7.50 38.00 16.17
7.50 40.00 15.49
7.50 45.00 14.02
8.00 50.00 14.43
9.00 63.00 14.72
9.00 75.00 12.61
11.00 100.00 14.26


Pre Crimped 65Mn SWG 8 high Carbon Steel Wire Screen
