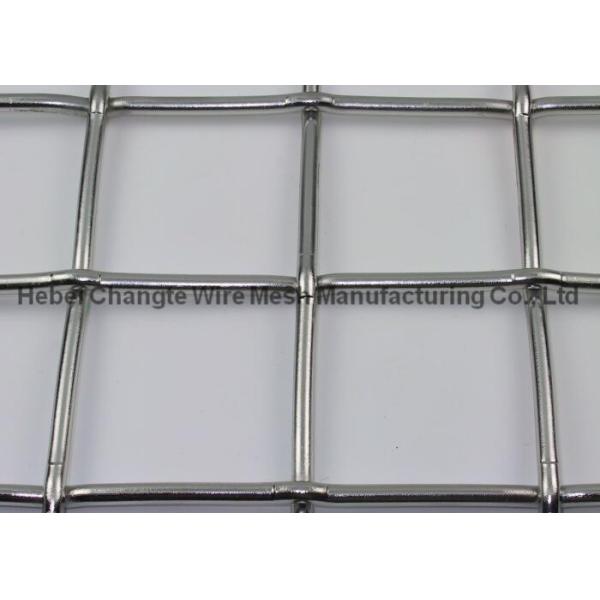

C Hooked Vibrating Screen Mesh
C Hooked Vibrating Screen Mesh
C Hooked Vibrating Screen Mesh
C Hooked Vibrating Screen Mesh
Specifications
Brand Name :
Changte
Model Number :
CT-VSM05
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 Pieces
Payment Terms :
Can be negotiated
Supply Ability :
2000 ton per year
Delivery Time :
3-20 work days
Packaging Details :
Inside the plastic outside the woven bag，Wooden pallets or iron tray, can be customized according to customer requirements.
Tolerance :
2%-4%
Colour :
Black Red etc.
Material :
65Mn, 45#, 50#, 55#, 60#, 70#, 72A
Wire dia :
0.3mm - 16mm
Hole size :
0.5mm - 100mm
Surface treatment :
Antirust oil or antirust paint
Description

65Mn Quarry Multi Decks Circular Vibrating Sieve Screen for Sand Gravel Crusher

What types of vibrating screen can we supply?

Woven vibrating screen mesh. it is the most popular and widely used type of vibrating screen mesh. It contains high tensile spring steel vibrating screen mesh, manganese steel vibrating screen mesh and stainless steel vibrating screen mesh.
Woven vibrating screen mesh has different weaving method and various edge types.

Woven vibrating screen mesh has various weaving types.

Screens feature:

· Wire:Ø0.3mm - 12.5mm Mesh aperture:0.5mm - 100mm Accurately mesh size

· Tolerance : 2%-4% Wear and abrasion resistant Heavy impact resistant

· Long working life

Weaving type:

Plain weave

Pre-crimped

Flat top

Intermediate crimped

Lock crimped

Mesh type:

Square Rectangular slot Long slot

Hook type:

Bending.

Welding.

Metal sheet hook. (End bent C-V hook, hooks at 30°-180° ).

Features ,

Optimum bending strength

High abrasion resistance

Accurate dimensions

Excellent stability

Applications ,

Mining industry

Coal factory

Construction industry

Food processing and meat industry

What material should we choose?

If you need more hardness, pls choose the high carbon steel, like 45#, 55#, 60# or spring steel wire.
If you need more abrasive resistance, pls choose the manganese steel like 65Mn, which is more flexible, it's more suitable for the big objects, which need thick and flexible wires woven mesh.
If the environment is corrosive, you can choose the stainless steel wires like 304, 316, 304L, 316L.

Item Wire diameter
Mm		 Open size
Mm		 Width
M		 Length
M		 Weight
Kg
1 2 3 1.5 2 32
2 3 5 1.5 2 42.6
3 4 8 1.5 2 51.13
4 4.5 12 1.5 2 46.77
5 5 16 1.5 2 45.52
6 5.5 18 1.5 2 49.37
7 6 20 1.5 2 52.7
8 6 22 1.5 2 48.96
9 6.5 24 1.5 2 52.87
10 6.5 27 1.5 2 48.12
11 7 30 1.5 2 50.63
12 8 50 1.5 2 42.29
13 12 75 1.5 2 64
