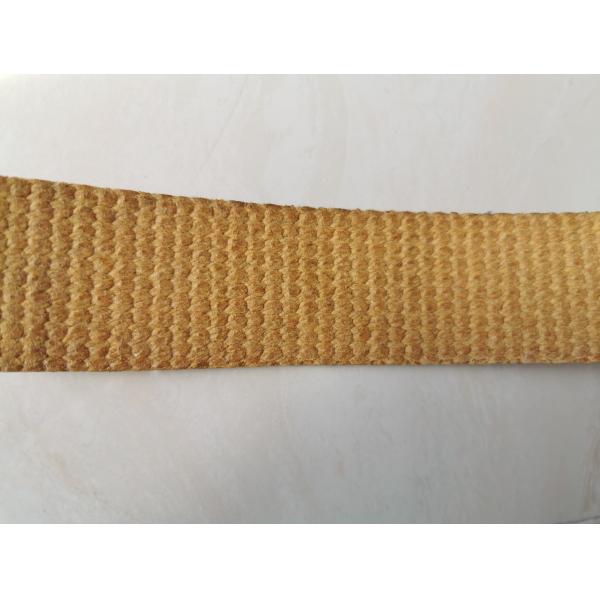

Woven Brake Lining Non Asbestos Winch Brake Lining In Roll Asbestos Free
Woven Brake Lining Non Asbestos Winch Brake Lining In Roll Asbestos Free
Woven Brake Lining Non Asbestos Winch Brake Lining In Roll Asbestos Free
Woven Brake Lining Non Asbestos Winch Brake Lining In Roll Asbestos Free
Woven Brake Lining Non Asbestos Winch Brake Lining In Roll Asbestos Free
Woven Brake Lining Non Asbestos Winch Brake Lining In Roll Asbestos Free
Specifications
Brand Name :
DALU
Model Number :
BXS-M
Certification :
GB/T 19001-2016/ISO 9001:2015
Place of Origin :
CHINA
MOQ :
0.5 Tons
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Tons
Delivery Time :
6 weeks after down payment
Packaging Details :
exporting wooden case
Product Name :
good quality woven brake lining non asbestos winch brake lining in roll asbestos free
Product Color :
Brown
Application :
It's widely used in decelerating and braking of engineer machines, industry machine and mining machines, such as Winch, Windlass, Tractor, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, etc.
Size :
10, 15, 20 meters/roll
Material :
brass wire, resin, viscose,
Type :
BXS-M
woven :
Non-asbestos Woven Brake Lining Roll With Brass Wire Ship anchor brake lining
resin :
melamine resin
main raw material :
non-asbestos yarns
color :
yellow
Description

good quality woven brake lining non asbestos winch brake lining in roll asbestos free

Products Advantage is that we produce the raw materials of non asbestos yarns and weave into brake lining rolls, so that we have the best cost performance.

This product is made of woven material with brass wire, resin glass fiber, and viscose fiber, is applicable to industrial machinery that requires a high degree of friction, can be used in oil wells, dredges, sugar mills, winch, cranes, construction machinery, power generators, voltage controllers, cutters of paper, stamping machines, glass melting machinery, among many other applications. Its coefficient of friction has a high capacity to absorb loads by impact and excellent resistance to mechanical stress.

Quick Detail:good quality woven brake lining non asbestos winch brake lining in roll asbestos free


Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7

Specifications:good quality woven brake lining non asbestos winch brake lining in roll asbestos free​
