Specifications
Brand Name :
DALU
Model Number :
BXS-M
Certification :
GB/T 19001-2016/ISO 9001:2015
Place of Origin :
CHINA
MOQ :
0.5 Tons
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Tons
Delivery Time :
6 weeks after down payment
Packaging Details :
exporting wooden case, pallet, woven bags
Product Name :
Asbestos Free Woven Brake Lining Material For Sugar Mill Tractor Crane Hoist,Non-asbestos Brake Lining
Product Color :
Yellow
Application :
winch and windlass brake, hoist brake, crane brake, winder brake, drilling machine brake
Size :
10, 15, 20 meters/roll
Material :
brass wire, resin, viscose,
Type :
BXS-M
woven :
woven brake lining asbestos free woven brake lining rolls
resin :
melamine resin
main raw material :
non-asbestos yarns
Description

Asbestos Free Woven Brake Lining Material For Sugar Mill Tractor Crane Hoist,Non-asbestos Brake Lining

Description:

Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

Our company has more than 25 years experience in manufacturing Woven Brake Linings, which can bring mutual benefit and profits to you and us.

Q: Can you offer sample to test?

A: Yes, we can offer free sample, customer only need to pay the shipping charge.

Q: Are you trading company or manufacturer?
A: We are a big manufacturer.

Q: Can you make different colors?
A: Yes. We can customize 3 kinds of colors.

Q: What's your acceptable payment term?
A: Our usual payment term is T/T.

Q: Can I visit your factory?
A: You are warmly welcomed to visit our factory, and we offer free hotel and free car service.

Materials:Asbestos Free Woven Brake Lining Material For Sugar Mill Tractor Crane Hoist,Non-asbestos Brake Lining
Brass wire, glass fiber, viscose fiber, resin and friction materials, etc. Its coefficient of friction has a high capacity to absorb loads by impact and excellent resistance to mechanical stress.

Characteristics:

1. Good flexibility,

2. Excellent oil resistance and water resistance,

3. High tenacity, shock resisting, heat resisting,

4. Good duality and anastomosis, agile brake.

Specifications:Asbestos Free Woven Brake Lining Material For Sugar Mill Tractor Crane Hoist,Non-asbestos Brake Lining

Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7

Tractor Crane Hoist Asbestos Free Woven Brake Lining

Quick Detail:Asbestos Free Woven Brake Lining Material For Sugar Mill Tractor Crane Hoist,Non-asbestos Brake Lining

Model: BXS-M Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.

Working Conditions: 250℃,Static Pressure: 4.0Mpa

Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.

Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Color: Yellow

Competitive Advantage:Asbestos Free Woven Brake Lining Material For Sugar Mill Tractor Crane Hoist,Non-asbestos Brake Lining

We produce non-asbestos yarns by ourself and weave yarns to non-asbestos brake lining. We can control the whole quality from raw materials to finished products. You don't need feel worry about the quality. I can say that we have the best cost performance in Chinese market.

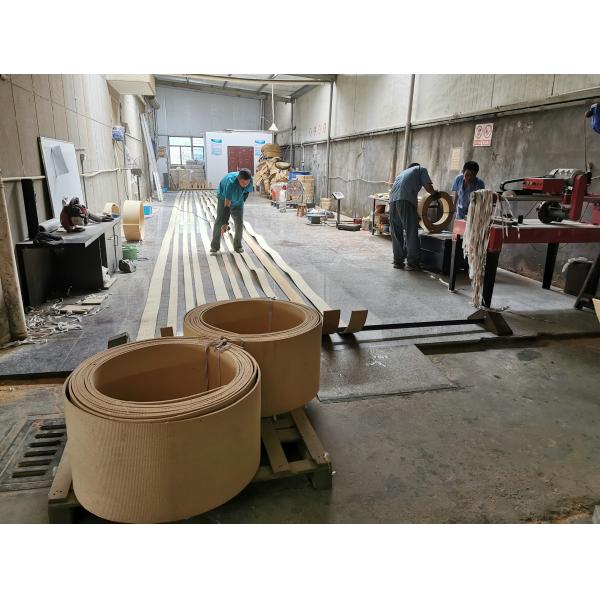

We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.
