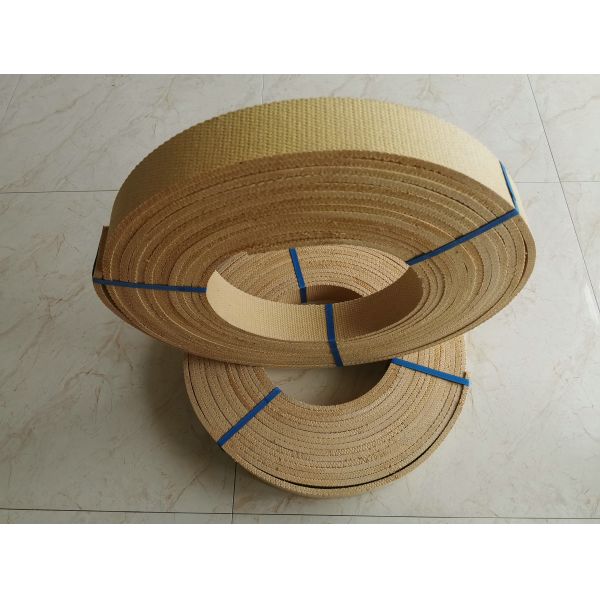

20 Meter Sugar Mill Asbestos Free Woven Brake Lining Roll
20 Meter Sugar Mill Asbestos Free Woven Brake Lining Roll
20 Meter Sugar Mill Asbestos Free Woven Brake Lining Roll
20 Meter Sugar Mill Asbestos Free Woven Brake Lining Roll
20 Meter Sugar Mill Asbestos Free Woven Brake Lining Roll
20 Meter Sugar Mill Asbestos Free Woven Brake Lining Roll
Specifications
Brand Name :
DALU
Model Number :
BXS-M
Certification :
GB/T 19001-2016/ISO 9001:2015
Place of Origin :
CHINA
MOQ :
0.5 Tons
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Tons
Delivery Time :
6 weeks after down payment
Packaging Details :
exporting wooden case
Product Name :
Windlass Sugar Mill Asbestos Free Woven Brake Lining For Construction Machinery
Product Color :
Brown
Application :
Anchor Winch Non Asbestos Woven Brake Lining Brass Wire Inforced
Size :
10, 15, 20 meters/roll
Material :
brass wire, resin, viscose,
Type :
BXS-M
woven :
Anchor Winch Non Asbestos Woven Brake Lining Brass Wire Inforced
resin :
melamine resin
main raw material :
non-asbestos yarns
color :
yellow
Description

Windlass Sugar Mill Asbestos Free Woven Brake Lining For Construction Machinery

Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.

Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.

20 Meter Sugar Mill Asbestos Free Woven Brake Lining Roll

Quick Detail:Windlass Sugar Mill Asbestos Free Woven Brake Lining For Construction Machinery


Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7

Description:Windlass Sugar Mill Asbestos Free Woven Brake Lining For Construction Machinery

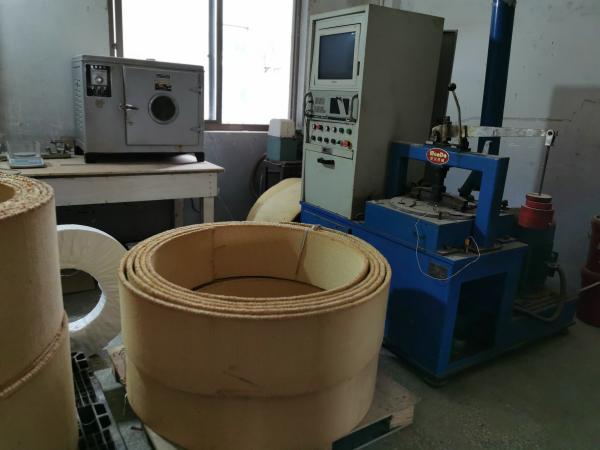

Ningbo Xinyan is a professional manufacturer of Non-asbestos friction material in China. More than 80% of our products have been exported to European, Asian, Africa, South American markets. As the leading manufacturer of woven brake lining in the world, we are stable and sustaining partner of the world famous winch maker. Relying on superior quality, strong technical power, excellent service, prompt delivery, We win good reputation and recognition from the domestic and abroad market, and has built long-term and friendly business relationship with the large state-owned enterprise and world famous companies. With comprehensive test equipment, Ningbo Xinyan is capable to offer the compared testing service and customized friction products.


20 Meter Sugar Mill Asbestos Free Woven Brake Lining Roll

20 Meter Sugar Mill Asbestos Free Woven Brake Lining Roll

Specifications:Windlass Sugar Mill Asbestos Free Woven Brake Lining For Construction Machinery

Model: BXS-L Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Asphalt resin.

Working condition: 100℃~150℃, Static Pressure:4.0Mpa

Applied field: Widely used for braking deceleration and transmitting power of farm machinery and engineering machinery.

Specification: T(5~30)x W(≤500)mm; Available Length: 10m,15m,20m

Color: Black

Competitive Advantage:Windlass Sugar Mill Asbestos Free Woven Brake Lining For Construction Machinery

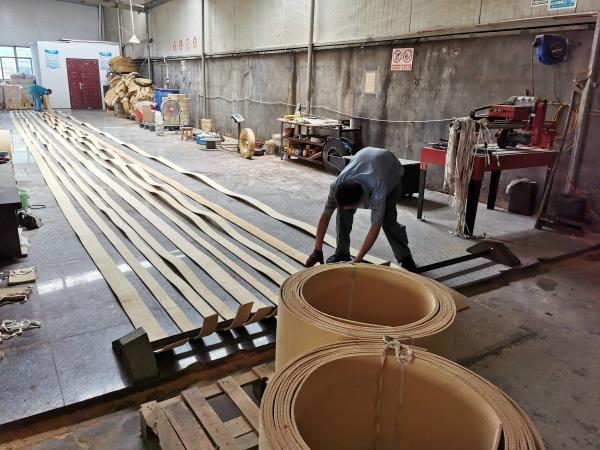

Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.

Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.

Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
