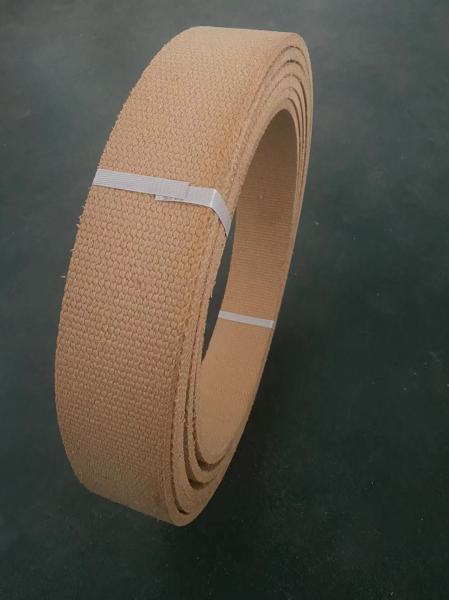

10m 15m 20m Melamine Resin Non Asbestos Woven Brake Belt For Ship Anchor
10m 15m 20m Melamine Resin Non Asbestos Woven Brake Belt For Ship Anchor
10m 15m 20m Melamine Resin Non Asbestos Woven Brake Belt For Ship Anchor
10m 15m 20m Melamine Resin Non Asbestos Woven Brake Belt For Ship Anchor
10m 15m 20m Melamine Resin Non Asbestos Woven Brake Belt For Ship Anchor
10m 15m 20m Melamine Resin Non Asbestos Woven Brake Belt For Ship Anchor
Specifications
Brand Name :
DALU
Model Number :
BXS-M
Certification :
GB/T 19001-2016/ISO 9001:2015
Place of Origin :
CHINA
MOQ :
0.5 Tons
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Tons
Delivery Time :
6 weeks after down payment
Packaging Details :
exporting wooden case
Product Name :
Melamine Resin Non Asbestos Woven Brake Belt For Ship Anchor Asbestos brake lining
Product Color :
Brown
Application :
It's widely used in decelerating and braking of engineer machines, industry machine and mining machines, such as Winch, Windlass, Tractor, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, etc.
Size :
10, 15, 20 meters/roll
Material :
brass wire, resin, viscose,
Type :
BXS-M
woven :
Non-asbestos Woven Brake belt ship anchor brake heavy vehicle brake linging
resin :
melamine resin
main raw material :
non-asbestos yarns
color :
yellow
Description

Melamine Resin Non Asbestos Woven Brake Belt For Ship Anchor Asbestos brake lining

Products Advantage is that we produce the raw materials of non asbestos yarns and weave into brake lining rolls, so that we have the best cost performance.

Ningbo Xinyan Friction Materials Co., Ltd. was set up in 2003. We specialize in producing Asbestos and Non-asbestos friction and sealing materials. We have the modern production line, with the best and professional machine, which can control the whole quality. the good density can make the brake lining much more strenght and decease the changing rate.

We have the latest production line which can make sure about the whole weaving, impregnating and heating process, and assure you good wear rate and friction coefficient.

Friction Products are widely used for braking deceleration and transmitting power of big power machinery, such as ship winch, dock crane, drilling machinery, lifting machine, building machinery etc.


Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7

Specifications:Melamine Resin Non Asbestos Woven Brake Belt For Ship Anchor Asbestos brake lining

We own advanced equipment, top technology and skillful workers which ensure the goods high quality. Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, which can make you save the cost on some extent. We are always playing great role in international market such as America, Europe and Southeast Asia etc.

10m 15m 20m Melamine Resin Non Asbestos Woven Brake Belt For Ship Anchor

10m 15m 20m Melamine Resin Non Asbestos Woven Brake Belt For Ship Anchor

10m 15m 20m Melamine Resin Non Asbestos Woven Brake Belt For Ship Anchor

Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
