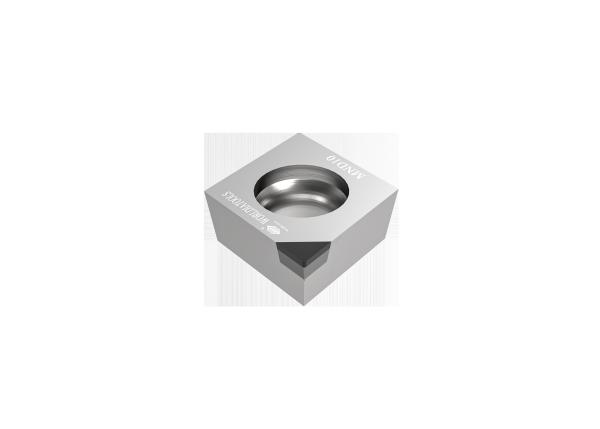

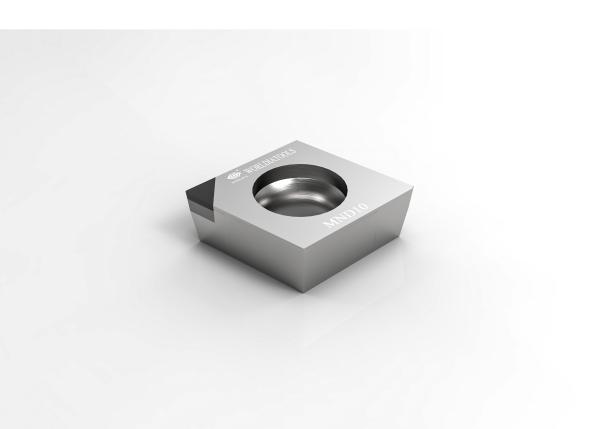

CCGW09T302 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials
CCGW09T302 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials
CCGW09T302 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials
CCGW09T302 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials
CCGW09T302 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials
CCGW09T302 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials
CCGW09T302 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials
CCGW09T302 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials
Specifications
Brand Name :
ManaNova
Model Number :
CCGW 09T302
Certification :
ISO9001,14001.18001, RoHS
Place of Origin :
Beijing, China
MOQ :
2 Piece
Price :
$20-40/ Piece
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
In stock
Delivery Time :
3-4days
Packaging Details :
2 PCs/Blue rose box
Product Brand :
WORLDIA
Product Family :
ManaNova
Item name :
CNC turning inserts
Material :
PCD+Carbide
Coating :
Uncoated
PCD Grade :
MND10
Tips :
1N
Application :
High-precision maching of non-ferrous materials
Description

CCGW09T302 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials

Material:

PCD tools are ideal for the use with non-ferrous metal, such as aluminum, Zinc

and magnesium alloys, GRP composites, carbon fiber reinforced plastics, “green” carbide,

and ceramic as well as all abrasive materials.

Description:

MANANOVA is the sub-brand of WORLDIA, positioned as a high-end standard series,

mainly promoting PCD / PCBN standard inserts.

The key feature of ManaNova is Easy choice and Fast delivery.

"Easy choice": It is easy to choose according to the comparison table and application.
"Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.


Main products:

PCD insert is suitable for rough and finish machining of aluminum alloy and other non-ferrous metal materials.

PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.

Providing stable, universal, high efficient cutting effect.


Advantages:
· Universal
· Easy choice
· Fast delivery
Service:
· Online store service
· Local distributor support
· Technical support

Application:

PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other

non-metal materials.

MND10 Applied to the cutting of non-ferrous materials such as aluminum alloys, etc.

Specification:

CCGW Dimensions Grade
ANSI Code ISO Code Tips IC
mm		 S
mm		 R
mm		 Φd
mm		 LE
mm		 MND
10
CCGW 21.50.5 CCGW 060202 1N 6.35 2.38 0.2 2.8 2.5 √
CCGW 21.51 CCGW 060204 1N 6.35 2.38 0.4 2.8 2.5 √
CCGW 32.50.5 CCGW 09T302 1N 9.525 3.97 0.2 4.4 2.5 √
CCGW 32.51 CCGW 09T304 1N 9.525 3.97 0.4 4.4 2.5 √
CCGW 32.52 CCGW 09T308 1N 9.525 3.97 0.8 4.4 2.5 √
C-CCGW 21.50.5 C-CCGW 060202 1N 6.35 2.38 0.2 2.8 2.5 √
C-CCGW 32.51 C-CCGW 09T304 1N 9.525 3.97 0.4 4.4 2.5 √
F-CCGW 21.51 F-CCGW 060204 2N 6.35 2.38 0.4 2.8 6.4 √

Recommendation:

Feed rate recommendation
Nose radius(mm) Ra um
0.2 0.4 0.8 1.6 3.2 6.4
Feed Rate f (mm/rev)≤
0.2 0.028 0.040 0.057 0.080 0.113 0.160
0.4 0.040 0.057 0.080 0.113 0.160 0.226
0.8 0.057 0.080 0.113 0.160 0.226 0.320
1.2 0.069 0.098 0.139 0.196 0.277 0.392
1.6 0.080 0.113 0.160 0.226 0.320 0.453
2.4 0.098 0.139 0.196 0.277 0.392 0.554


CCGW09T302 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials
