i-Ark Pad M10A Android Biometric Enrollment Tablet with Passport Reader 442 Fingerprint and Iris Scanner for ID registration

Specifications

warranty(year) :

1-Year

screen size :

10.1"

scenarios :

For Professional

drive interface :

USB Type C

processor manufacture :

ROCKCHIP

processor type :

Quad Core

memory capacity :

8GB

display resolution :

800x1280

operating system :

Android 12

Place of Origin :

China

Model Number :

M10A

type :

Industrial Tablet

network :

wifi, 3G, 4g

Description

Product Description

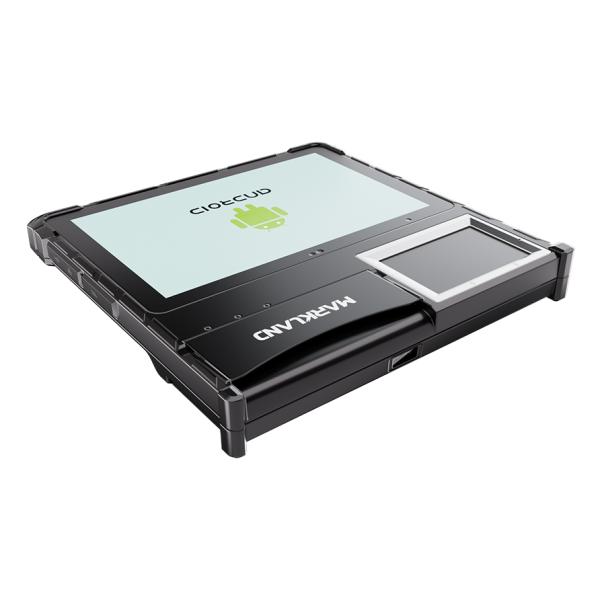

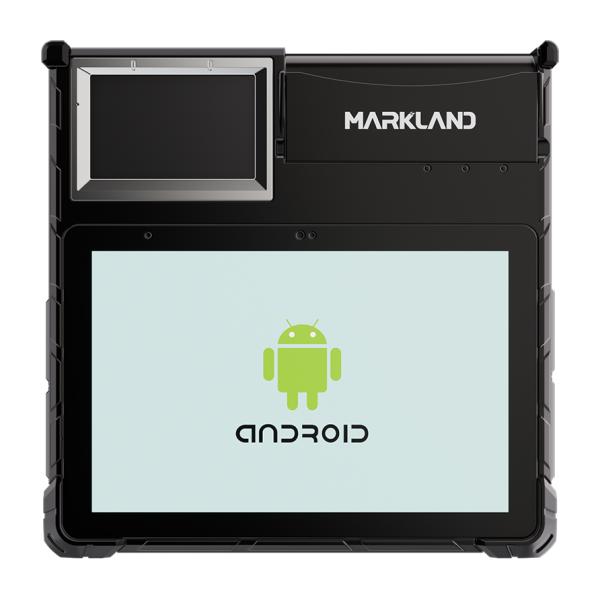

i-Ark Pad M10A Android Handheld Rugged Biometric Tablet Workstation

Specification

The i-Ark Pad M10A is a mobile workstation specifically developed to meet the needs of personnel in law enforcement, election, and border control environment. It runs on Android – the operating system most widely used in the world, and is designed with workflow in mind. The M10A integrates biometric recognition, document reading, and QR code scanning functionalities, along with optional Bluetooth or USB printers, making it suitable for any data collection scenario and enabling mobile office operations.

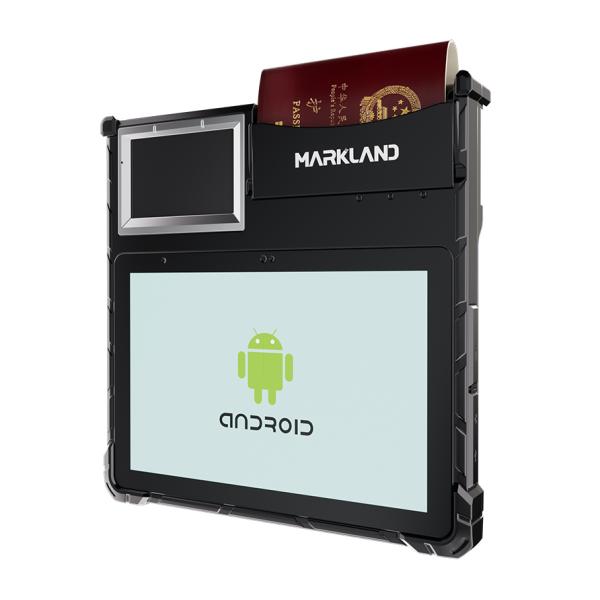

The i-Ark Pad M10A combines an ICAO9303-compliant reader with contact smart card reading capabilities, allowing it to read e-ID cards and e-Passport. It also features a standard four-finger fingerprint scanner and optional iris capture functionality. These features significantly enhance office efficiency, reduce the workload and stress of service personnel, and improve interoperability among various functions, making operations simpler and more efficient.

Personalized component configuration:

• Fingerprint Scanner: IB 4-4-2 fingerprint scanner, FAP 50, FBI Appendix F Certified. • Document Reader: MRZ document reading and NFC-enabled document reading. • Contact Smart Card Reader: Supports 2 ID-1 cards for identity verification, authorization, and other applications. • QR Scanner: Capable of reading QR code, bar code, PDF 417, and more. • Camera: Dual-camera design (front: 13MP, rear: 13MP) for photo capture, video recording, and document scanning. • Iris Scanner: Built-in iris capture module or external iris capture device. • Printer (Optional): External Bluetooth or USB printer with print width of 50mm, 80mm, 100mm, or A4.

Applications:

Voting

National ID card registration/verification, Card issuance
Census
Refugee registration
KYC, etc.

PARAMETER			Details
Hardware	CPU	RK3588 Quad-Core Cortex-A76+ Quad-core Cortex-A55
		GPU	Mali-G610 MC4
		Display size	10.1"
		Display resolution	800×1280 (IPS+HD+300ANSI) (Standrd)
		Storage	128 GB SSD
		RAM	8 GB
		Cameras	Front: 13 MP, Rear: 13 MP
		Speaker/Microphone	Supported
		Operating system	Android 12
Network	Wi-Fi	FG6252BPRX-02 2T2R 802.11 ax/ac/a/b/g/n
		Bluetooth	Bluetooth 5.0
		3G/4G LTE	4G (Optional)
Interface	USB	1 x Type-c 3.1 & 2 x USB 3.1
		SD/TF	Supports expansion up to 512GB
		SIM card slot (Optional)	For 3G/4G LTE Communication
		Audio Jack	3.5mm standard audio port
		HDMI	Micro HDMI 2.1, supports 8K@60fps video output
		Serial port	DB9 (RS232)
4-4-2 Finger-print scanner	Resolution	500 ppi
		Grayscale	256 grayscale dynamic range
		Image Size	1600 x 1000 pixels
		Supported Image Formats	RAW, JPEG2000, BMP, PNG, WSQ (FBI-approved)
		Certifications	FBI Appendix F, FAP 50, MOSIP
QR Scanner	1D Barcodes	Code 128, EAN-13, EAN-8, Code 39,UPC-A,UPC-E, Codabar, Interleaved 2 of 5, ITF-6,ITF-14, lSBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey
QR Scanner		2D Barcodes	PDF417, QR Code, Data Matrix
Smart Card Reader (Support SAM card)	Supported card types	ISO/IEC 7816 compliant smart card chips
		Card Size	2 x ID-1
		Smart Card Interface Speed	• Up to 600 kbps (depending on card) • TA1=97
Document Reader	MRZ/OCR reading	Supported Font OCR-B
	MRZ/OCR reading		MRZ/OCR reading	ICAO 9303 standard documents • 3 lines MRZ - ID1: eID, Resident Permit... • 2 lines MRZ - ID3: Passport, Visa... - ID2: ID Card... • 1 line MRZ - ID1: Driving Licence...
		Contactless/RFID/NFC reading	ISO/IEC 14443, ISO/IEC 18092
				MIFARE® Classic Family, MIFARE Ultralight Family, MIFARE Plus Family, MIFARE DESFire Family, FeliCa™, NFC Forum Tag Types 1/2/3/4
				106/212/424/848 kbits/s, depending on card IC
Power supply	Battery Capacity	8000mAh
Iris scanner	Professional	Built-in iris capture module, or external CMITECH BMT-20, binocular-type iris biometric imaging
Iris scanner		Aperture image standard	ISO/IEC 19794-6
Optional components	Printer	Bluetooth or USB printer with print width of 50mm, 80mm, 100mm or A4
		High-brightness display	1200×1920 (IPS+FHD+600ANSI)
		Docking station	USB2.0, power charging, RJ45, RS232
		Network/Positioning	4G, BD2 (BeiDou), GPS
		Portable carrying case	Shockproof, Waterproof and Dustproof
