Specifications
private mold :
Yes
products status :
Stock
type :
MRZ Scanner
scan element type :
OCR
interface type :
usb
max paper size :
Size of passport
scan speed :
1-3s
Brand Name :
MarkLand
Place of Origin :
China
warranty(year) :
1-Year
after-sales service :
Call Center and on-line Technical Support
software development kit (sdk) :
Yes
color :
Black
Host Interface :
USB 2.0 CCID (USB 1.1/3.0 compliant)
Power Supply :
Bus-powered USB
Connector :
1.5m USB cable with USB type C connector
Dimensions(L*W*H) :
176.5*140.6*28.8 mm
Supported Font :
OCR-B
MRZ/OCR reading :
ICAO 9303 specification Parts 1-4
Contact smart card reading :
ISO/IEC 7816 Part 1 to 4
Contactless/RFID/NFC reading :
ISO/IEC 14443, ISO/IEC 18092
Supported Documents :
Passport,Visa,eID,Resident Permit,Driving Licence,ID Card...
QR Scanner :
1D 2D code
Description
Product Description

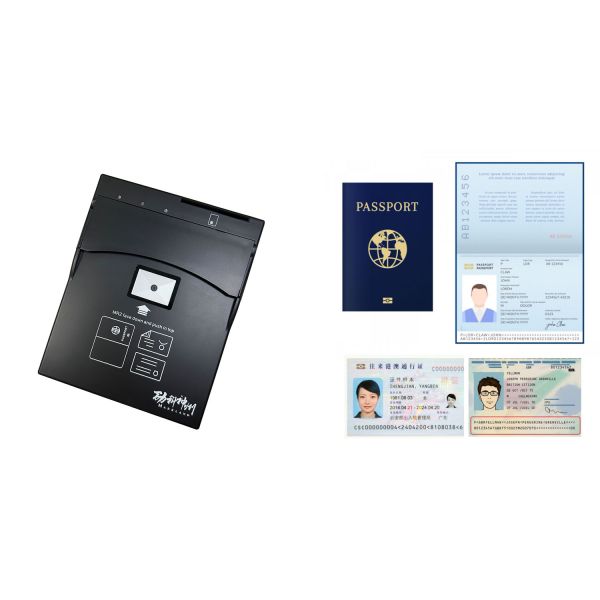

MEPR10-QR Multi-function Document Reader

Half-Page e-Passport Reader, Scans MRZ, reading of barcodes, RFID and SmartCard chips
The MEPR10 series are a machine readable zone (MRZ) data reader with RFID functionality to simultaneously decode the contents of an e-Passport or contactless smart card. In addition, MEPR10 series also have one built-in contact smart card reader, which supports reading ISO7816 protocol contact smart card. The MEPR10 series automatically detect when a document with machine readable data has been inserted, and its advanced recognition engine provides highly accurate and instant data capture and decoding.The MEPR10 series can also choose to add QR scanners to recognize and read 1D and 2D bar codes from documents and screens on mobile devices.
Sample Use MEPR10-QR 1D 2D Code MRZ Passport Scanner ICAO 9303 ID Document Reader to Verify the Identity

Supported Documents

Features:

The compact, robust design enables easy integration into kiosk, automat, vending machine and gates etc, or use as a desktop device. MEPR10 can read all e-passports and ICAO9303-compliant identity documents, such as national ID cards, driving licenses, residence permits, etc...

Benefits:

MEPR10 series half-page multifunctional e-passport reader, by integrating a contactless/RFID reader, the device simultaneously and efficiently capture and process data fields from the chip, including the image of the holder. This combined capability provides a powerful and cost-effective alternative to full-page, multi-illumination passport readers.

Markets:

Any place where complete datapage scan is not needed and ease of use is required: Police identification, Airport check-in, Self service terminals, Border control, Hotels, Banks, Car rental companies, ...

Customers:

Public and private companies requiring automatic identity verification. Integrators or third parties in need of adding ID document reading functions onto kiosks, terminals, etc.

MEPR10 series Half Page Passport & Document Reader

Sample Use MEPR10-QR 1D 2D Code MRZ Passport Scanner ICAO 9303 ID Document Reader to Verify the Identity
Product Range:
Model/Function
MEPR10-OCR
MEPR10
MEPR10-QR
MRZ/OCR Scanner
√
√
√
Contact Smart Card Reader
√
√
√
Contactless/RFID/NFC Reader
X
√
√
QR Scanner
X
X
√

Available Model Number:

MEPR10-OCR (MRZ/OCR+Contact) MEPR10 (MRZ/OCR+Contact+Contactless/RFID) MEPR10-QR (MRZ/OCR+Contact+Contactless/RFID+QR)
Specifications:
Multi-purpose Passport Reader
MEPR10-QR
Parameter
Details
MRZ/OCR reading
Supported Font:
OCR-B
Supported Stardards:
• ICAO 9303 specification Parts 1-4;
• ISO 18013 Driving Licence
Supported Documents:
• 3 lines MRZ
- ID1: eID, Resident Permit...
• 2 lines MRZ
- ID3: Passport, Visa...
- ID2: ID Card...
• 1 line MRZ
- ID1: Driving Licence...
Contact Smart Card reading
Supported Standards:
ISO/IEC 7816 Part 1 to 4; T=0, T=1
Supported Card Types:
5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
Card Size:
ID-1
Smart Card Interface Speed:
• Up to 600 kbps (depending on card)
• TA1=97
Communication:
Compliant with CCID and PC/SC standards
Contactless/RFID/NFC reading
Supported Standards:
ISO/IEC 14443, ISO/IEC 18092
Supported Card ICs:
MIFARE® Classic Family, MIFARE Ultralight Family, MIFARE Plus Family, MIFARE DESFire Family, FeliCa™, NFC Forum Tag Types 1/2/3/4
Data Transfer Rate:
106/212/424/848 kbits/s, depending on card IC
Communication:
Compliant with CCID and PC/SC standards
Bar code reading
1D Code
Code 39, Code 32, Code 128, UPC/EAN/JAN, Code 93, Interleaved 2 of 5, Codabar, Matrix 2 of 5, Industrial 2 of 5 ...
2D Code
QR Code, Data Matrix,Aztec Code, PDF417 ...
General
Host Interface :
USB 2.0 CCID (USB 1.1/3.0 compliant)
Communication:
12 Mbps (USB 2.0 full speed)
Power Supply:
Bus-powered USB
Connector:
1.5m USB cable with USB type C connector
Dimensions(L*W*H):
176.5*140.6*28.8 mm
Weight:
260g± 5%(MEPR10-OCR) / 300g± 5%(MEPR10) / 315g± 5%(MEPR10-QR)
Status Indicator:
3 LEDs
Body:
Black, ABS
Temperature:
• In operation: 0°C to 50°C
• Storage: -40°C to 80°C
Humidity:
0-95% non-condensing
Host operating systems:
Windows, Linux, Android
Sample Use MEPR10-QR 1D 2D Code MRZ Passport Scanner ICAO 9303 ID Document Reader to Verify the Identity
Full-page Passport Reader and Half-page Passport Reader
Company Profile
Markland(MTTEK) was established in 2009, headquartered in Hong Kong, and has branches in Shenzhen and Beijing. We are an innovative smart card solution provider, focusing on the fields of physical security and information security, and providing customers with high-end solutions and service. We provide solutions from hardware to software: - Solutions: e-ID/passport solutions, e-payment solutions, NFC solutions, SIM card read-write solutions，Biometric Solutions; - Hardware: Contact smart card readers and modules that follow the ISO/IEC 7816 protocol standard, Contactless smart card readers and modules based on 13.56MHz, E-passport reader and module that comply with ICAO 9303 standard, And optical identification based fingerprint readers and modules； Markland is the important cooperation partner in Asia of Identiv Group which is the world’s security products manufacturer ,and we are the only agent of Identiv in mainland China.Through years of unremitting efforts, we have benefited from IDENTIV's technical support, customized and developed products and solutions that are more suitable for market needs, and cooperated with IDENTIV to customize products and solutions for its global customers.

OEM & ODM：

Support customer customization and provide personalized smart card solutions
