Edge Banding Machine Double Polishing Unit Edgebander Oscillatory Buffing Unit
Edge Banding Machine Double Polishing Unit Edgebander Oscillatory Buffing Unit
Edge Banding Machine Double Polishing Unit Edgebander Oscillatory Buffing Unit
Edge Banding Machine Double Polishing Unit Edgebander Oscillatory Buffing Unit
Edge Banding Machine Double Polishing Unit Edgebander Oscillatory Buffing Unit
Edge Banding Machine Double Polishing Unit Edgebander Oscillatory Buffing Unit
Specifications
Brand Name :
Tshare
Place of Origin :
China
MOQ :
5 sets
Price :
Contact us for quotation!
Supply Ability :
50sets per month
Delivery Time :
7~35 work days
Packaging Details :
Packed in standard carton boxes.
Model Number :
XEPG-A
Product Name :
Double Buffing Unit
Model :
XEPG-A
Panel Thickness :
10 – 60 mm
Working Pressure :
0.2 – 0.4 MPa
Installation Method :
Vertical Installation
Installation Location :
Upper & Lower Beam of Edgebander
Overall Dimensions :
L320 × W440 × H730 mm
Application :
Supports machines with edge running distance of 20–35 mm, covering narrow-edge edgebanders, tracking edgebanders, and standard models.
Description

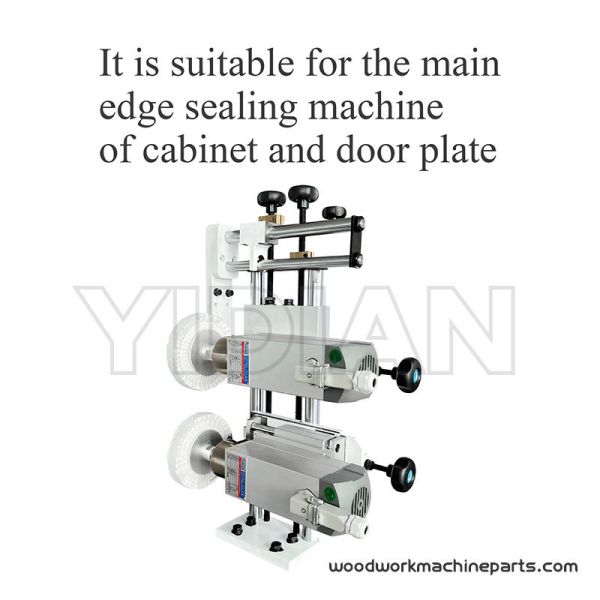

Edge Banding Machine Double Polishing Unit


Edgebander Buffing Unit (Oscillating Type)

The Double Polishing Unit is a high-performance buffing solution designed for modern edgebanding machines. Featuring an advanced oscillating polishing structure, it ensures smooth, consistent, and high-precision finishing for cabinet panels and doors.

Engineered for flexibility and efficiency, this unit delivers superior polishing results on straight edges and radius (R) edges, enhancing the overall appearance and quality of finished panels.



Key Features

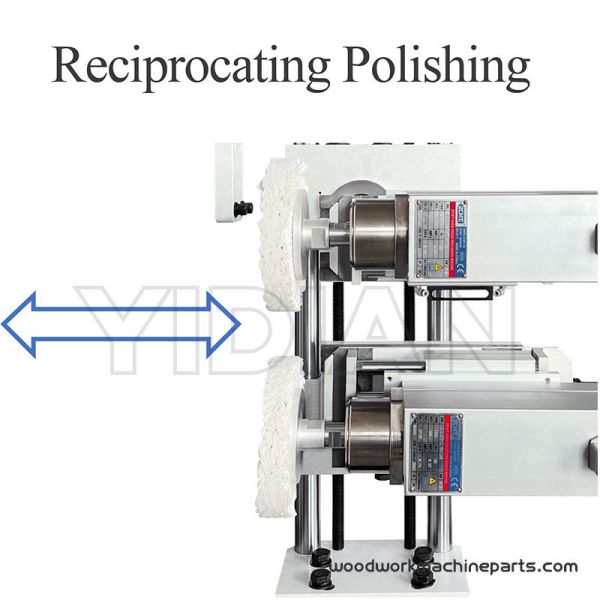

Oscillating Polishing Design
Swing-type (oscillating) polishing motion improves surface consistency and enhances overall polishing performance.

Flexible Polishing Control
Equipped with an induction control system to adjust reciprocating stroke and frequency, ensuring optimal polishing results for different materials and edge types.

High-Precision Finishing
Maintains uniform contact across the polishing area, delivering consistent and high-quality surface finishes.

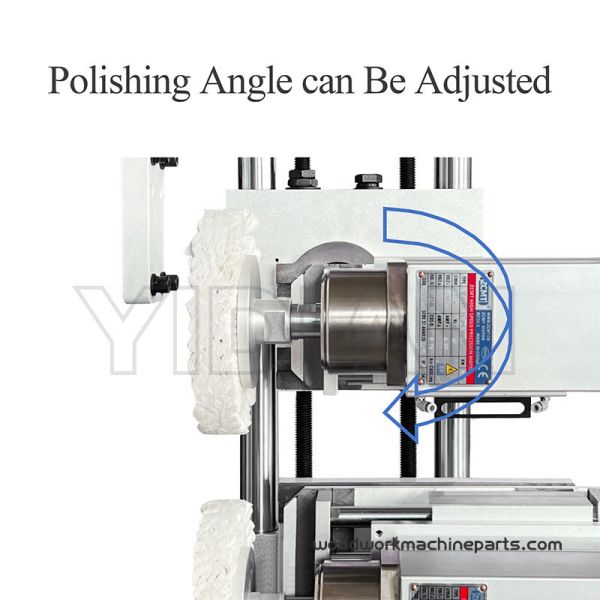

Adjustable Polishing Angle
The polishing angle and wheel position can be easily adjusted via screw mechanisms, providing convenient setup and fine-tuning.

Targeted R-Edge Polishing
Optimized for radius edge (R-edge) polishing, improving stability and consistency on curved edges.

High Efficiency
Enhances processing speed while maintaining excellent surface quality, suitable for continuous production.



Compatibility

Suitable for a wide range of automatic edgebanding machines, including brands such as KDT, Nanxing, HOMAG, and other domestic and international models.

Supports machines with edge running distance of 20–35 mm, covering narrow-edge edgebanders, tracking edgebanders, and standard models.



Specifications

Item Specification
Model XEPG-A
Product Name Double Buffing Unit
Panel Thickness 10-60mm
Working Pressure 0.2-0.4 MPa
Installation Method Vertical Installation
Installation Location Upper & Lower Beam of Edgebander
Overall Dimensions L320 x W440 x H730mm
