Specifications
Model Number :
03A-2 A500309
Place of Origin :
China
MOQ :
10pcs
Price :
Contact us for a quote!
Payment Terms :
,T/T
Supply Ability :
100pcs/week
Delivery Time :
5~8 work days
Packaging Details :
packed in standard carton box
Product Description :
Large Sprocket (22T)
Part Number :
03A-2 A500309
Application :
MX40 Power Feeder
Outer Diameter (OD) :
68.5mm
Inner Bore Diameter (ID) :
30mm
Thickness :
5.3mm
Net Weight :
80.9 g
Origin :
China
Description

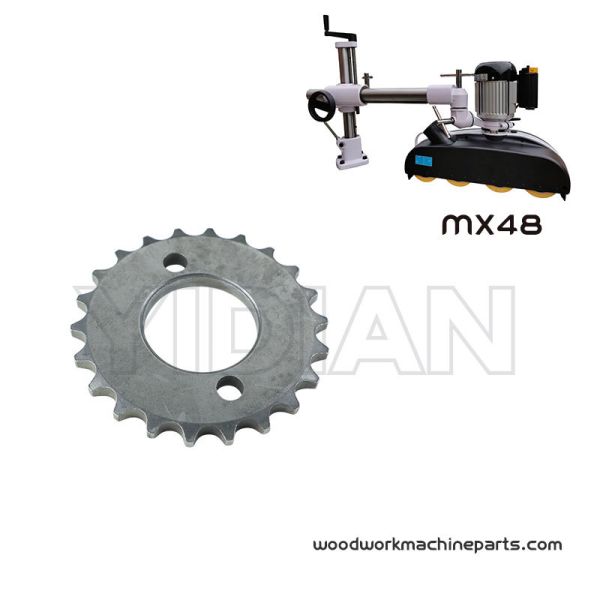

03A-2 A500309 Large Sprocket (22T) for MX48 Power Feeder

The 03A-2 A500309 Large Sprocket (22 Teeth) is a precision-engineered transmission component designed for the MX48 power feeder, ensuring smooth and reliable power transfer between the drive system and the feeder mechanism.

This sprocket features an outer diameter of 68.5 mm, an inner diameter of 30 mm, and a thickness of 5.3 mm, providing accurate fit and stable installation on the drive shaft. The bolt hole diameter of 6.82 mm ensures secure mounting and proper alignment, reducing the risk of vibration and chain misalignment during operation.

Manufactured from high-quality, wear-resistant steel, the sprocket offers excellent durability, high strength, and long service life under continuous industrial use. Its 22-tooth design ensures optimal torque transmission and smooth chain engagement, helping maintain consistent feeder speed and stable material feeding.



Specifications

Part No.: 03A-2 / A500309

Application: MX48 Power Feeder

Type: Large Sprocket

Number of Teeth: 22T

Outer Diameter: 68.5 mm

Inner Diameter: 30 mm

Thickness: 5.3 mm

Bolt Hole Diameter: 6.82 mm

Weight: 80.9 g

Material: High-strength wear-resistant steel



Key Features

Precision-machined for exact fit on MX48 power feeders

22-tooth design for smooth and stable power transmission

Reduces vibration and chain wear

Durable steel construction for long service life

Easy to install and replace

The 03A-2 A500309 Large Sprocket (22T) is an essential accessory for maintaining efficient power transmission and reliable feeding performance in MX40 power feeder systems.


Item Specification
Part Number

03A-2 A500309
Product Name Large Sprocket (22T)
Application MX48 Power Feeder
Outer Diameter (OD)

68.5 mm
Inner Bore Diameter (ID) 30 mm
Thickness 5.3 mm
Net Weight 80.9 g

Bolt Hole Diameter

 6.82
Function Power Feeder MX48 Accessories
