Tshare XE DTGZ-B Maglev Single-Head Tracking Unit Servo Auto Tool Adjustment For Edge Banding Machine

28m/min Maglev Tracking Device For Precise Corner Finishing On Beveled, Right And R-Angle Edges

After edge banding, panel corners must be trimmed and finished precisely to achieve a clean, consistent look. Traditional tracking devices struggle with beveled, right and R-angle edges and require manual tool adjustments whenever the edge banding thickness changes. Developed with 4.0 smart edge banding patent technology, the Tshare XE DTGZ-B is a maglev single-head tracking unit that delivers fast response, high adaptability and precise corner finishing for whole-house customization and panel furniture production.

Key Advantages:

• 28m/min Maglev Speed: Fast response and precise tracking for a major boost in production efficiency.
• Servo Auto Tool Adjustment: The servo motor automatically moves the tracing knife to the correct position, compatible with various edge banding thicknesses and eliminating manual setup.

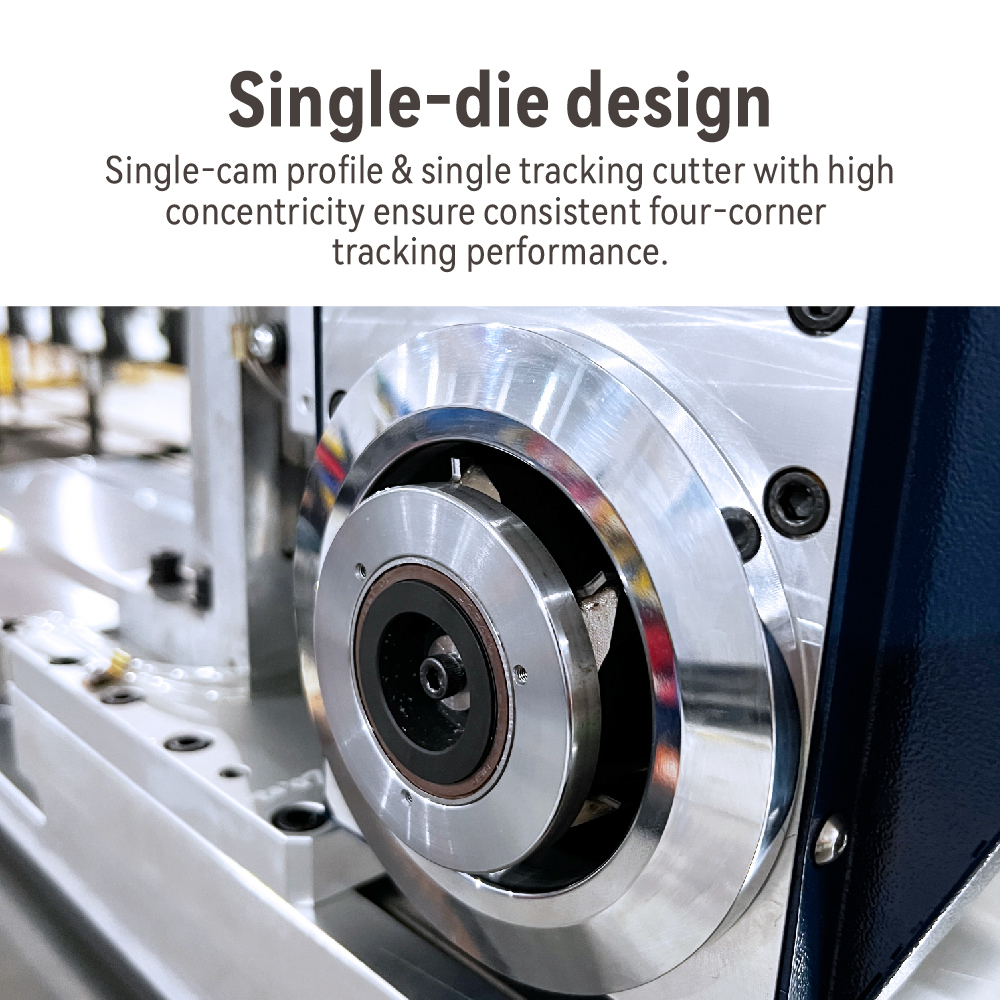

• Single Template And Tracing Knife: High concentricity guarantees consistent corner finishing on every panel.
• Avoidance Cylinder: Keeps the device clear of the board when tracking is disabled.
• High Adaptability: Suitable for beveled, right and R-angle edges, with stable performance for whole-house customization.
• High Precision, Low Energy Use: Fast and precise response boosts efficiency while minimizing energy consumption.

Application:

The XE DTGZ-B is mounted on edge banding lines after installation and fine finishing, making it ideal for whole-house customization and panel furniture production that requires precise corner trimming on beveled, right and R-angle edges. Typical applications include panel closets and wardrobes, kitchen cabinet doors, desks and tabletops, and high-mix production lines where edge banding thickness changes frequently.

Note: Please confirm compatibility with your edge banding line and mounting space (L1500 x W530 x H1040mm) before purchasing.
