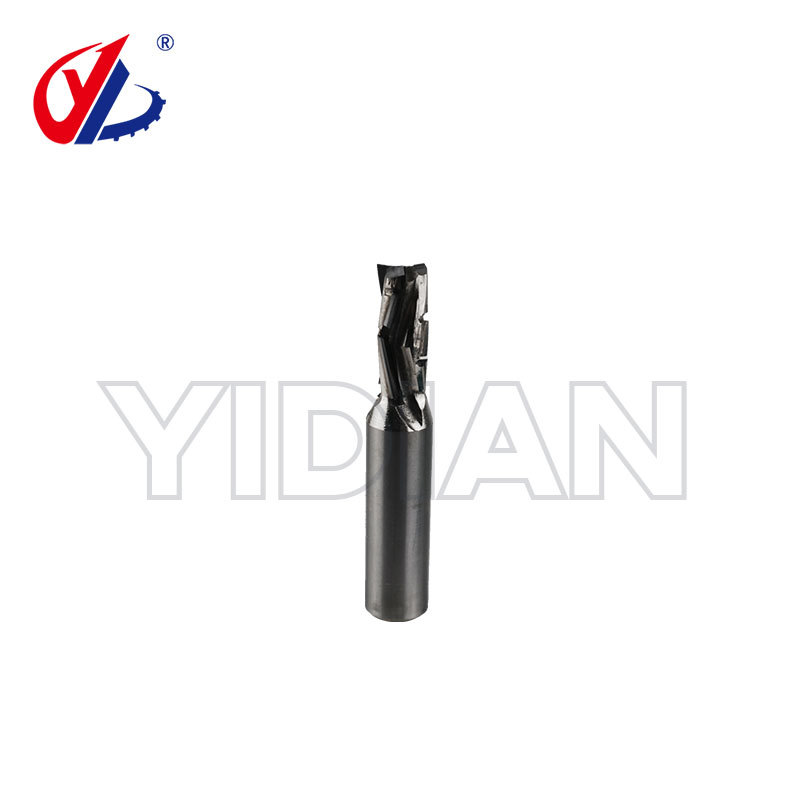

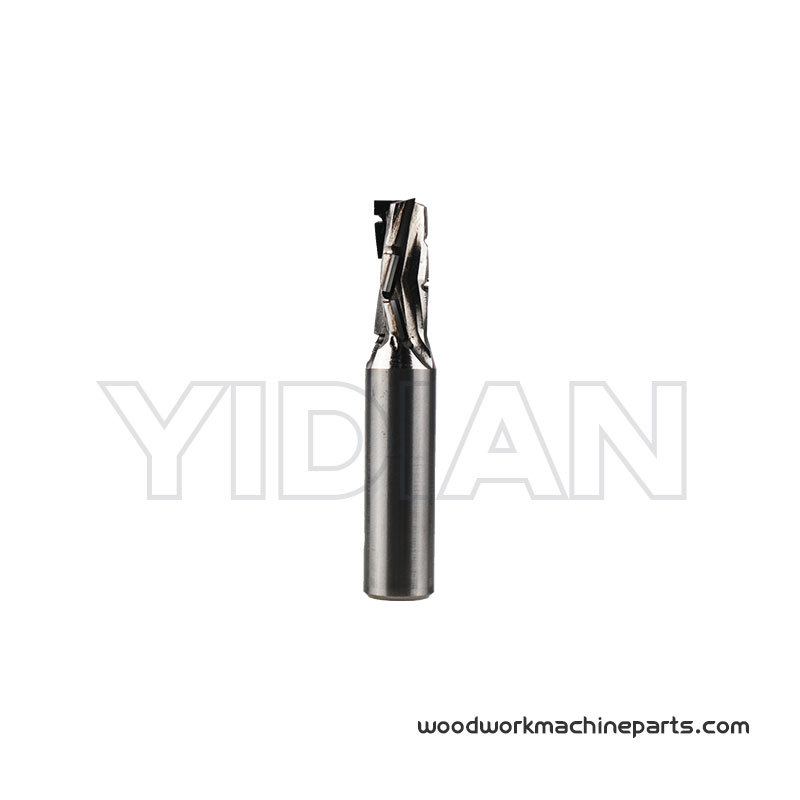

The PCD Diamond Router Bit with Tungsten Nickel Iron Body is a high-performance cutting tool designed for CNC woodworking machines and machining centers. Featuring PCD (Polycrystalline Diamond) cutting edges and a high-density tungsten nickel iron tool body, it provides excellent wear resistance, cutting stability, and long service life.

With a 12 mm cutting diameter, 10 mm shank diameter, 25 mm cutting height, and 75 mm overall length, the Z3+3 configuration provides efficient material removal and smooth cutting performance. It is particularly suitable for machining abrasive wood-based panels and composite materials in high-volume production environments.

The PCD cutting edges offer significantly higher wear resistance than conventional carbide tools, making this router bit an ideal choice for applications involving MDF, HDF, particle board, melamine-coated panels, laminated boards, and other abrasive materials.

• PCD diamond cutting edges for excellent wear resistance
• Tungsten nickel iron body for high rigidity and dimensional stability
• Z3+3 cutting configuration for efficient chip removal
• Long tool life for continuous CNC production
• Excellent cutting precision and surface quality
• Suitable for high-speed and high-volume machining
• Reduces tool changes and production downtime
• Designed for demanding woodworking and panel processing applications

• Product Type: PCD Diamond Router Bit
• Body Material: Tungsten Nickel Iron
• Cutting Diameter: 12 mm
• Shank Diameter: 10 mm
• Cutting Height: 25 mm
• Overall Length: 75 mm
• Number of Teeth: Z3+3
• Cutting Material: PCD (Polycrystalline Diamond)
• Application: CNC Woodworking Machinery

This PCD diamond router bit is suitable for CNC machining of:

• MDF
• HDF
• Particle Board / Chipboard
• Melamine Board
• Laminated Panels
• Plywood
• Veneered Panels
• Other abrasive wood-based composite materials

Recommended Product Title:
PCD Diamond Router Bit with Tungsten Nickel Iron Body D12 * D10 * H25 * L75 Z3+3
