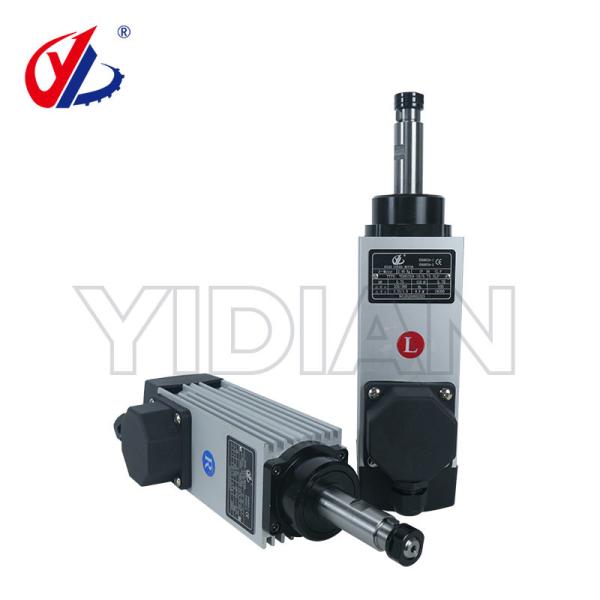

YD High Speed Fine Trimming Motor for Edge Banding Machine 0.75kw 0.55kw 0.37kw

Description:

Other Name: High Speed Motor

Type Number: YD35B-12/0.75 SLF, YD35B-18/0.75 SLF,

YDHM3140B-12/0.55 SC, YDHM4147A-12/0.75 SC

YDHS35A-12/0.37SLF, YDHS35A-18/0.37SLF

Applications: Spindle, Woodworking Edge - banding Machine

Protection Class: IP54

Other Characteristic: frequency, high - speed, high - precision

power: 0.55KW, 0.75kw

rotational speed: 12000rpm and 18000rpm available

Package: Packed In Standard Export Carton Boxes.

Oringe: Made In China

Specification 1 - YD35B-12/0.75 SLF and YD35B-18/0.75 SLF:

Specification 2 - YDHM3140B-12/0.55 SC and YDHM4147A-12/0.75 SC:

Specification 3 - YDHM3140B-12/0.55 SC and YDHM4147A-12/0.75 SC:

YD Series Characteristics:

1. YD series edge banding machine trimming motors are widely used in the rough and fine repair devices of automatic edge banding machines in the woodworking industry. They are used to repair and remove excess edge banding material from the upper and lower parts of the processed board edge banding belt to ensure the flatness of the upper and lower parts of the trimmed board. smooth.

2. It is used in conjunction with the frequency converter to make the electric shaft rotate at high speed, so that the mechanism can be simplified, the volume can be miniaturized, and the electric shaft can be operated at high speed and high precision.

3. The high-speed spindle motor has low noise, no vibration, large torque, long life and stable operation under high-speed rotation.

About Shipment - To be negotiated

Shipment could be arranged by our clients.We can also provide a proper shipping method. We hope to provide the most economic and fast express to our clients to reduce shipment time and shipping cost.

YIDIAN provides a wide range of woodworking machinery accessories, tools and spare parts for woodworking machine such as CNC machines, beam saws, edge banding machines, moulders. etc. Feel free to contact us if you have any questions!
