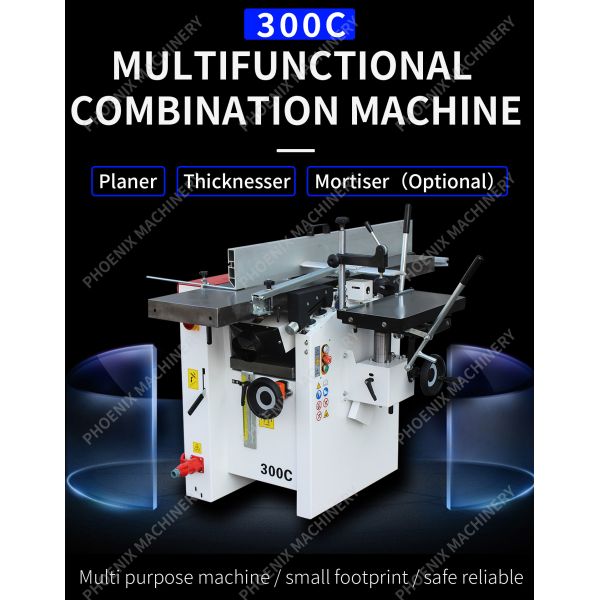

300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
Specifications
Place of Origin :
Shandong, China
Brand Name :
PHOENIX EQUIPMENT
Condition :
New
Machine Type :
Woodworking Combination Machine
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2024
Warranty of core components :
1 Year
Core Components :
Motor
Warranty :
1 Year
Weight (KG) :
290 KG
Power (kW) :
3
Key Selling Points :
Easy to Operate
Showroom Location :
None
Applicable Industries :
Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works
Name :
woodworking combination machine
Product name :
Multi function 3 in 1 universal combination machine
Application :
Furniture Manufacturing
Function :
planer,thicknesser,mortister
Cutterblock rotation speed :
5700 r.p.m
Feed speed :
7m/1'
Max. cutting depth :
4mm
Longitudinal stroke :
205mm
Trasversal stroke :
95mm
Vertical stroke :
90mm
Price :
$2,300.00/units 1-1 units
MOQ :
1 set
Description
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
Products Description
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
Specification
Planer
Unit
300C
Workingtables
mm
300x1500
Cutterblockdiameter
mm
70
Cutterblockrotationspeed
r.p.m
5700
N.ofknives
n°
3
knivesdimensions
mm
300x20x3
Maxtableadjustement
mm
4
Thicknesser
Unit
300C
Working table
mm
300x660
Feed speed
m/1'
7
Max. working height
mm
220
Min. working height
mm
4
Cutterblock rotation speed
r.p.m.
5700
Max. cutting depth
mm
4

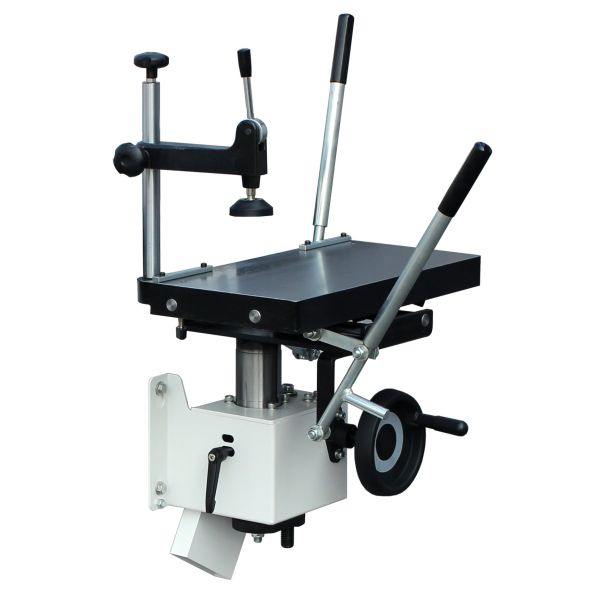

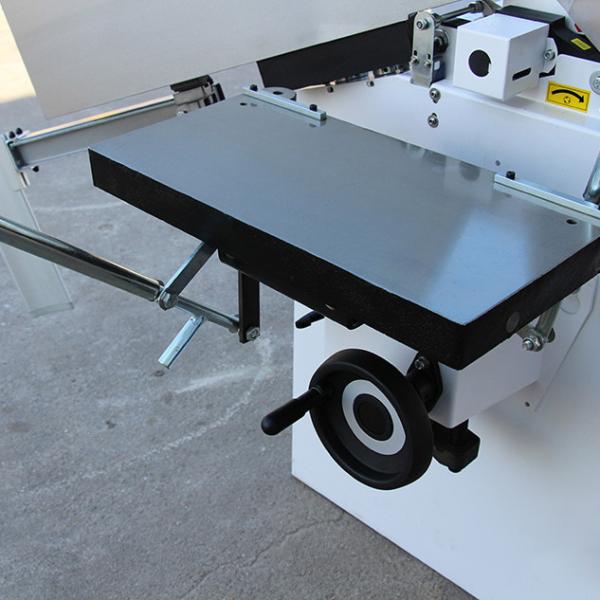

Mortiser
Unit
300C
Working table
mm
250x500
Longitudinal stroke
mm
205
Trasversal stroke
mm
95
Vertical stroke
mm
90
Churck
mm
16
Churck rotation speed
r.p.m.
5700
3-phase motor power
HP - KW
3,0 - 2,2
Weight
kg
290
Packaging size
mm
1576*766*1130
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
300C Woodworking Combination Machine Surface Planer Wood Thickness Mortising Function
Product Name
300C Woodworking Combination Machine
Brand
PHOENIX EQUIPMENT
Customized
color, logo, voltage
MOQ
1 set
Package
plywood wooden box
Payment terms
Alibaba Trade Assurance, T/T, Alipay
Usage
Furniture Making
