Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Specifications
Applicable Industries :
Building Material Shops, Manufacturing Plant, Construction works
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2024
Warranty of core components :
1 Year
Core Components :
MAGNET BLOCK
Condition :
New
Place of Origin :
Shandong, China
Brand Name :
Phoenix Equipment
Dimension(L*W*H) :
340*200*230mm
Warranty :
1 Year
Weight (KG) :
20 kg
Name :
Permanent Magnetic Lifter
Product Name :
Magnet Lifter
Rated capacity :
600Ton
Max tension :
1800kg
Net weight :
20kg
Packaging :
340*200*230mm
Handle :
Anti slip handle
Application :
According to the thickness and length of different steel plates
Material :
High performance permanent magnetic materials
Two Sides :
Stainless steel baffles are installed on both sides
Price :
$300.00/sets 1-99 sets
MOQ :
1 set
Description
Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Products Description
Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Specification
Model
Rated capacity
Max tension
Dimensions(mm)
Packaging
Net weight
L
L1
W
H
R
GD-100
100Ton
300kg
130
85
62
67
155
230*160*140mm
3kg
GD-200
200Ton
600kg
199
153
69
73
155
280*160*160mm
5kg
GD-400
400Ton
1200kg
210
155
95
92
195
290*190*190mm
10kg
GD-600
600Ton
1800kg
265
210
120
115
228
340*200*230mm
20kg
GD-1000
1000Ton
3000kg
320
257
153
135
255
400*230*250mm
37kg
GD-2000
2000Ton
5000kg
415
345
172
165
355
510*270*280mm
68kg
GD-3000
3000Ton
7500kg
500
432
175
165
355
580*280*290mm
87kg
GD-5000
5000Ton
12500kg
620
520
230
215
580
280*160*160mm
198kg
Packing Delivery

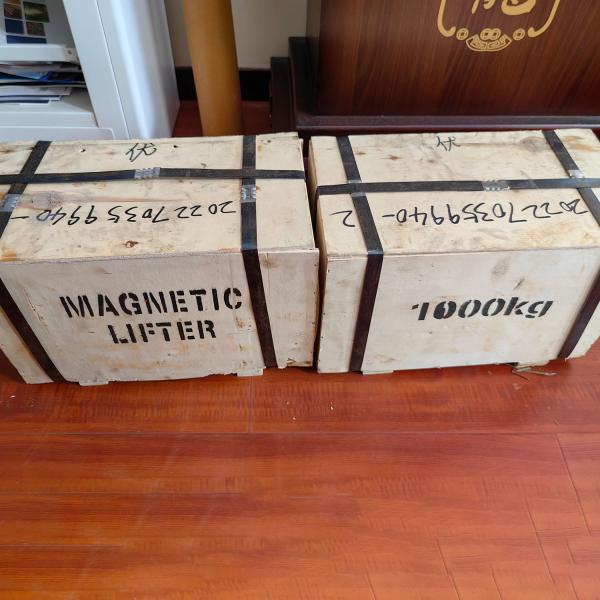

1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Stainless Steel Baffles Installed V Type Magnetic Lifting Equipment for Metal Pieces
Product Name
Permanent Magnetic Lifter
Brand
PHOENIX EQUIPMENT
Customized
color, logo, voltage
MOQ
1 set
Package
plywood wooden box
Payment terms
Alibaba Trade Assurance, T/T, Alipay
Usage

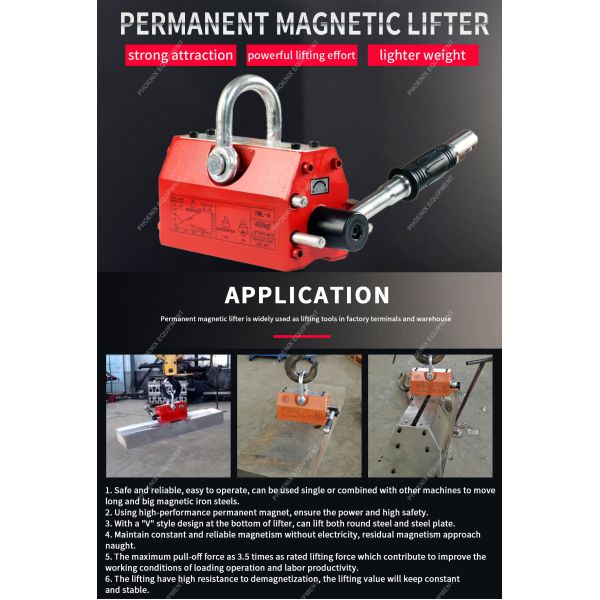

Permanent magnetic lifter is widely used as lifting tools in factory terminals and warehouse.
