3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
Specifications
Condition :
New
Range of Spindle Speed(r.p.m) :
0 - 24000 rpm
Positioning Accuracy (mm) :
0.02 mm
Number of Axes :
3
No. of Spindles :
Single
Working Table Size(mm) :
1300*2500mm
Machine Type :
CNC Router
Travel (X Axis)(mm) :
1300 mm
Travel (Y Axis)(mm) :
2500 mm
Repeatability (X/Y/Z) (mm) :
0.02 mm
Spindle Motor Power(kW) :
3.2kw
CNC or Not :
CNC
Place of Origin :
Shandong, China
Brand Name :
Phoenix Equipment
Voltage :
AC380V220V50Hz
Dimension(L*W*H) :
3200x1700x960mm
Weight (KG) :
1000
Control System Brand :
Syntec
Warranty :
1 Year
Key Selling Points :
Multifunctional
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor
Name :
Single Head CNC Router Machine
Product name :
CNC Wood Working Machine
Application :
Kitchen Cabinet Doors Furnitures Making
Keywords :
Cnc Wood Router Engraver
Work area :
1300*2500*200mm
Motor :
Leadshine 860 step motor
Operating system :
NC studio
Support software :
Type 3,Artcam,JD,
Bed Material :
Welded large steel pipe
Table Surface :
T-slot table
Price :
$2,850.00/sets 1-2 sets
MOQ :
1 set
Description
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
Products Description
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
Specification
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
Model
PM1325
Bed Material
Welded large steel pipe
weight
1000KGS
Table size
1300*2500mm
Work area
1300*2500*200mm
Table Surface
T-slot table
Engraving accuracy
0.02-0.03mm
Repeatability
±0.01mm

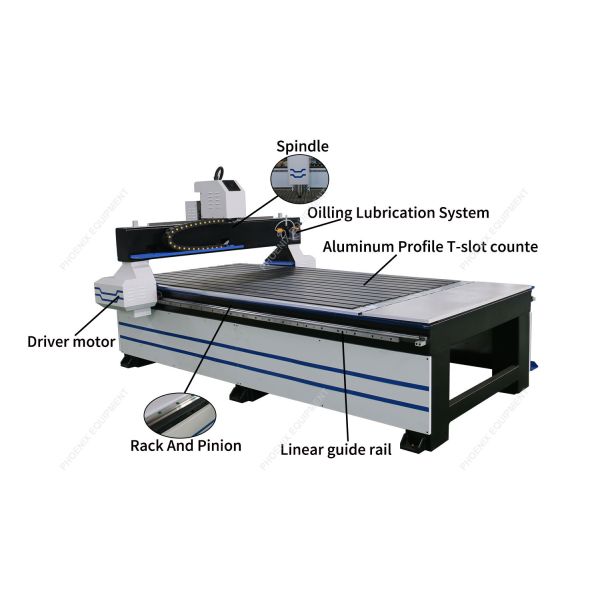

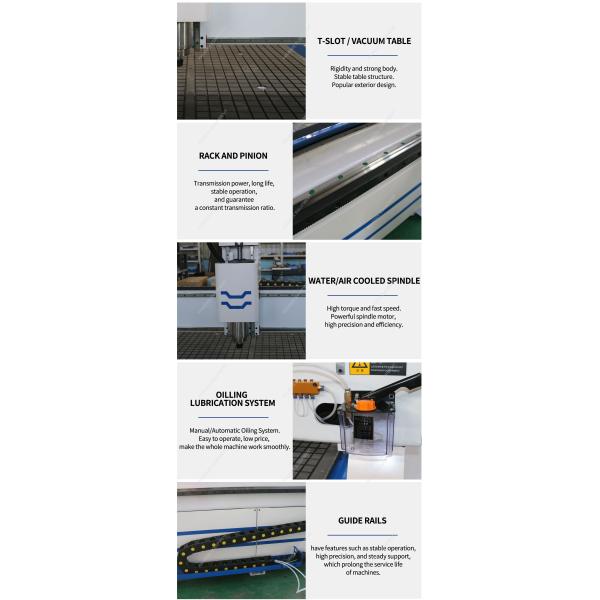

XYZ transmission
XY helical rack drive, Z screw drive
Guide
HIWIN20 square rail
Working speed
18000mm/min
Spindle power
JST 3.2KW water cooling
Frequency converter
3.7KW FULING
Spindle speed
0-24000rmp
Motor
Leadshine 860 step motor
Operating Voltage
AC380V220V50Hz
Oil System
Manal oil system
Run command
G code
Operating system
NC studio
Support software
Type 3,Artcam,JD,
Packing size
3200x1700x960mm
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
Product Name
3D CNC Router Machine for Wood Cutting Engraving woodworking industry
Brand
PHOENIX EQUIPMENT
Customized
color, logo, voltage
MOQ
1 set
Package
plywood wooden box
Payment terms
Alibaba Trade Assurance, T/T, Alipay
Usage
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble, and other nonmetal materials and light metal materials.
