Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Specifications
Condition :
New
Max.Planing Depth(mm) :
300 mm
Max.Planing Width(mm) :
70
Type of Cutter Head :
Spiral
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2023
Warranty of core components :
1 Year
Core Components :
PLC, Motor
Type :
Thicknesser, wood planer
Number of Blade :
6
Place of Origin :
Shandong, China
Sliding Table Equipped :
NO
Brand Name :
PHOENIX MACHINERY, PHOENIX MACHINERY
Voltage :
380V/50HZ
Dimension(L*W*H) :
1800*950*1500mm
Warranty :
1 Year
Weight (KG) :
380 KG
Power (kW) :
2.2
Key Selling Points :
Easy to Operate
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Farms, Food Shop, Manufacturing Plant
Model :
MB503
Automatic Grade :
Automatic
Product Name :
Surface Planer Machine
Function :
professional Wood Side and Surface Planing
Cutter shaft type :
Spiral knife
Number of blades :
6
Weight :
380kg
Packaging Details :
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Port :
Qingdao
Supply Ability :
100 Set/Sets per Month
Price :
$3,050.00/sets 1-9 sets
MOQ :
1 set
Description
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Products Description
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Specification
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Item
MB503
MB504
Surface working width
300mm
400mm
Side working width
70mm
70mm
Max. surface planing
4mm
4mm
Max. side planing
2mm
2mm
Surface spindle speed
5700r/min
5700r/min
Side spindle speed
5700r/min
5700r/min
Surface motor power
2.2KW
3KW
Side motor power
2.2KW
2.2KW

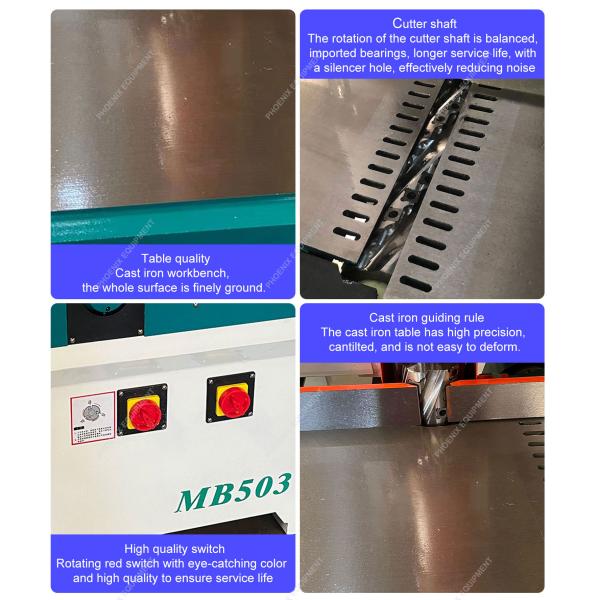

Cutter shaft type
Spiral knife
Spiral knife
Number of blades
6
6
Voltage
380V/50HZ
380V/50HZ
Machine size
1800*950*1500mm
1800*1050*1500mm
Weight
380kg
430kg

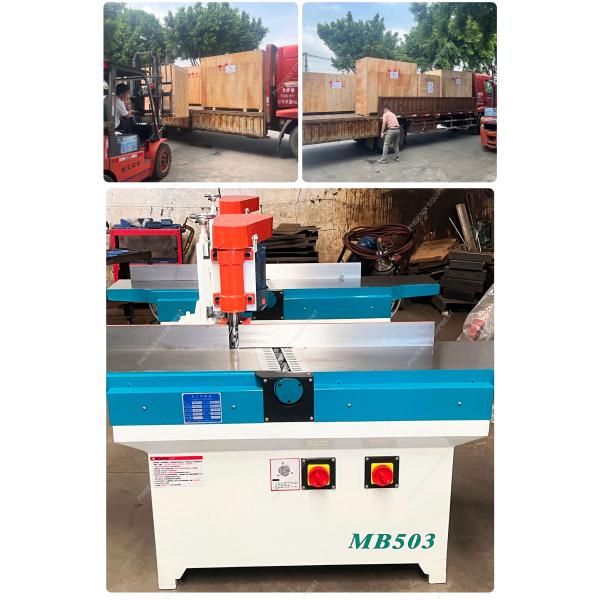

Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
Product Name

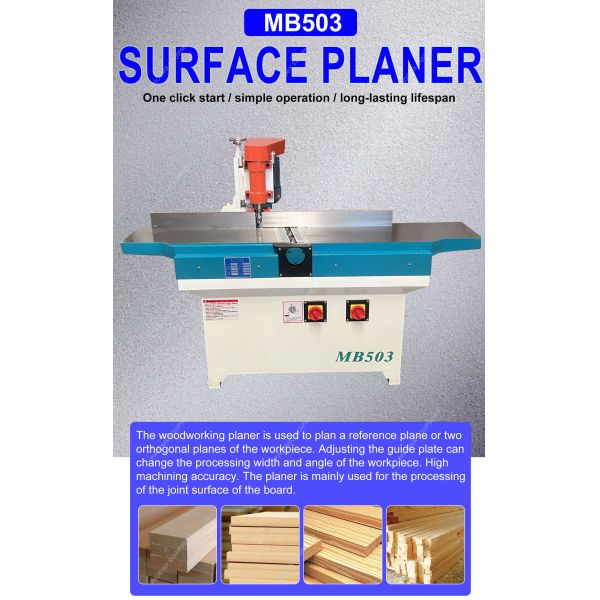

Woodworking machinery - Oblique flat planer, heavy-duty flat planer MB503/MB504 wood planer, table planer
Brand
PHOENIX EQUIPMENT
Customized
color, logo, voltage
MOQ
1 set
Package
plywood wooden box
Payment terms
Alibaba Trade Assurance, T/T, Alipay
Usage
Various wooden boards, density board side edges
Customizable Industrial Wood Planer 4 mm Deep Spiral Surface Planer with 2.2 kW Power
