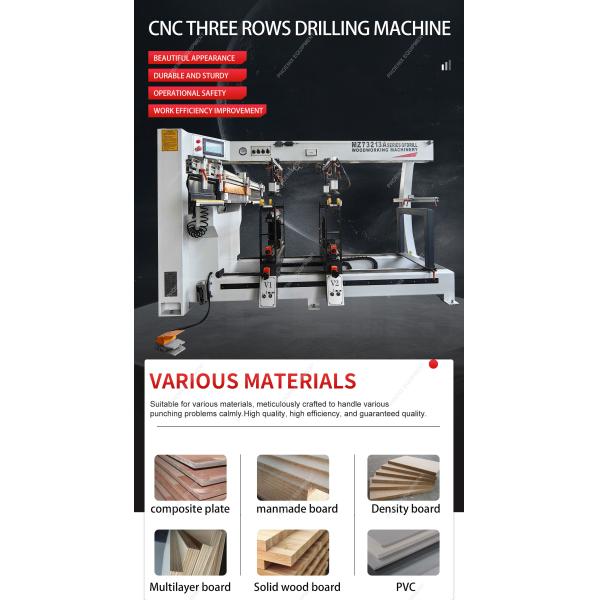

Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Specifications
CNC or Not :
Normal
Condition :
New
Line Number :
Three
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2024
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Motor
Place of Origin :
Shandong, China
Brand Name :
PHOENIX EQUIPMENT
Voltage :
380V 50HZ (Customized voltage)
Dimension(L*W*H) :
2600*2500*1600mm
Warranty :
1 Year
Weight (KG) :
900 KG
Power (kW) :
1.5kw * 3
Key Selling Points :
High-accuracy
Applicable Industries :
Hotels, Building Material Shops, Machinery Repair Shops, Other, furniture factory
Showroom Location :
United States, Italy, France, Germany, Viet Nam
Product name :
Row drilling punching machine
Function :
table drill bench drill press
Max Drill Diameter :
60mm
Vertical machining holes distance :
140-1700mm
Number of auger spindle :
21 bits * 3lines
Maximum Drilling Depth :
60mm
Air Pressure :
0.6-0.8MPa
Packing Size :
2700*1220*1700mm
Installation size :
2600*2500*1600mm
Price :
$4,380.00/sets >=1 sets
MOQ :
1 set
Description
Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Products Description
Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Specification
Model
MZ73213A
Maximum Drilling Diameter
Max.=35mm(Single drilling)
D=13mm(Multiple drilling)
Max Drill Diameter
60mm
Vertical machining holes distance
140-1700mm
Number of auger spindle
21 bits * 3lines
Maximum Drilling Depth
60mm
Rotational Speed
2840r/min
Motor power
1.5kw * 3
Air Pressure
0.6-0.8MPa
Suitable voltage
380V 50HZ (Customized voltage)
Weight
900kg
Installation size
2600*2500*1600mm
Packing Size
2700*1220*1700mm
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Accuracy MZ73213A Woodwork Multi Drilling Machine Horizontal Boring Machine Multiple Row Driller
Product Name
Wood Furniture Multi Axis Boring Machine Three Rows Drilling Machine
Brand
PHOENIX EQUIPMENT
Customized
color, logo, voltage
MOQ
1 set
Package
plywood wooden box
Payment terms
Alibaba Trade Assurance, T/T, Alipay
Usage
Suitable for all kinds of density boards, particleboard, based panels,PVC panels, organic glass plates and solid wood boards such as the drill
