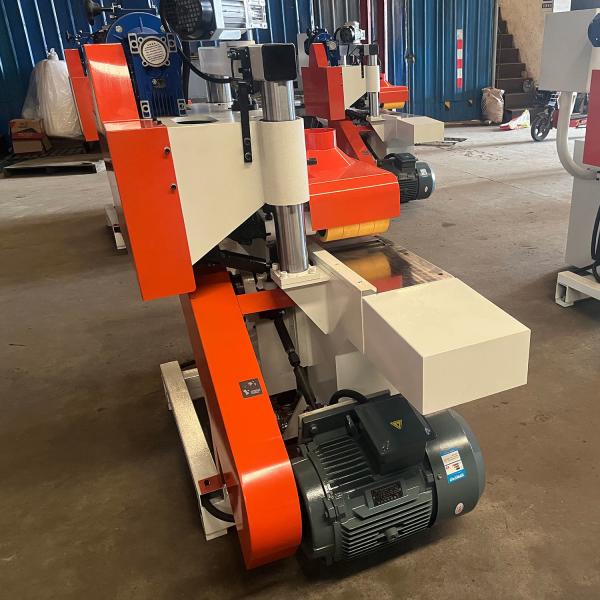

Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Specifications
Condition :
New
Type :
Circular Saw, Circular Saw
Use :
Woodworking, precision cut
Style :
Horizontal
Place of Origin :
Shandong
Brand Name :
Phoenix Equipment
Voltage :
380V
Dimension(L*W*H) :
1750*850*1550mm
Warranty :
1 Year
Application :
Manufacturing Plant, Farms, Home Use, Construction works, Building Material Shops, Single Blade Rip Saw Machine, wood saw machine, furniture
Weight (KG) :
900 KG
Power (kW) :
11
Key Selling Points :
Easy to Operate, Multiple cuts
Applicable Industries :
Building Material Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction works
Marketing Type :
New Product 2023
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor
Name :
multi blade saw
Function :
Wood Cuttiing
Usage :
Multi-blade wood sawing machine
Working length :
200-4000mm
Working width :
10-200mm
Working thickness :
10-80mm
Total Power :
12.84kW
Packaging Details :
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Port :
Qingdao
Supply Ability :
100 Set/Sets per Month
Price :
$4,800.00/sets 1-1 sets
MOQ :
1 set
Description
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Products Description
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Specification
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Model
MJ200C
MJ200D
Working length
200-4000mm
80-4000mm
Working width
10-200mm
5-200mm
Working thickness
10-80mm
5-60mm
Feed motor power
1.1kW (stepless)
1.1kw(stepless)
Feed speed
4-20m/min
4-20m/min
Spindle motor power
11kW
11kW
Spindle speed
3600r/min
3600r/min
Max blade diameter
Φ230mm
Φ230mm
Extraction outlet size
Φ125mm
Φ125mm
Spindle diameter
Φ35mm
Φ35mm
Lifting motor power
0.37kW
0.37kW
Beam lift motor power
0.37kW
0.37kW
Total Power
12.84kW
12.84kW
Air Pressure
0.6Mpa
0.6mpa
Overall size
1750*850*1550mm
1750*850*1550mm
Weight
900kg
900kg
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Product Name
200mm Multiple Blade Rip Saw for Solid Wood Saw Machine
Brand
PHOENIX EQUIPMENT
Customized
color, logo, voltage
MOQ
1 set
Package
plywood wooden box
Payment terms
Alibaba Trade Assurance, T/T, Alipay
Usage
Various wooden boards, density board side edges
Company Profile
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
Multi-Blade Circular Sawing Machine for Manufacturing Plant Automatic Conveying System
