Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Specifications
Place of Origin :
Qingdao,China
Brand Name :
TEING
Packaging Details :
Wraping film package, or according client request
Supply Ability :
800 Set/Sets per Year
Price :
$3,370.00/sets 1-5 sets
Condition :
New
Type :
Edge Banding Machine
Voltage :
380V/220V or customized
Dimension(L*W*H) :
2250x750x1250mm
Power (kW) :
6.5kw
Weight (KG) :
700 kg
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Construction works , Energy & Mining, Advertising Company, Other
Warranty :
12 months
Function :
Gluing, Fine Trimming, End Trimming, Buffing
Key Selling Points :
Automatic
Panel Feed Speed(m/min) :
14m/min
Video outgoing-inspection :
Provided
Warranty of core components :
2 Year
Core Components :
Motor
Usage :
Edge banding
Edge Banding Tape Thickness :
0.4-3mm
Panel Thickness :
10-60mm
Panel Width :
≥60mm
Panel Length :
≥120mm
Feed Speed :
14-20-23m/min
Working Pressure :
0.6Mpa
Lifting Mode :
Electric
Color :
Support Customization
Working methods :
Automatic
After Warranty Service :
Video technical support
Port :
Qingdao, China
Description
Product Overview
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Technical Data Sheet
Model
M4
Edge Banding Tape Thickness(mm)
0.4-3mm
Panel Thickness(mm)
10-60mm
Panel Width(mm)
≥60mm
Panel Length(mm)
≥120mm
Feed Speed(m/min)
14m/min
Working Pressure(Mpa)
0.6Mpa
Total Power (KW)
6.5kw
Overall Size(mm)
2250mm*750mm*1250mm
Lifting Mode
Manual
Details Images
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Control Panel
The touch screen adopts Taiwan Delta PLC control system, the screen programming can display alarm signals and Self-check function, adjustable parameters and alarm reset,the operation is more convenient.
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Gluing and Pressing
The glue is heated by glue pot, Adopt spiral structure to send glue,make the edge banding board and edge banding material evenly glued,press the edge band and board through the pressing wheel, to ensure the stronger adhesion. At the same time,double coating is suitable for cold areas in the north,when sealing some door panels with thickness and longer length, ensured the effective glue output.
Woodworking Machine Auto Edge Bander Machine with Custom Voltage

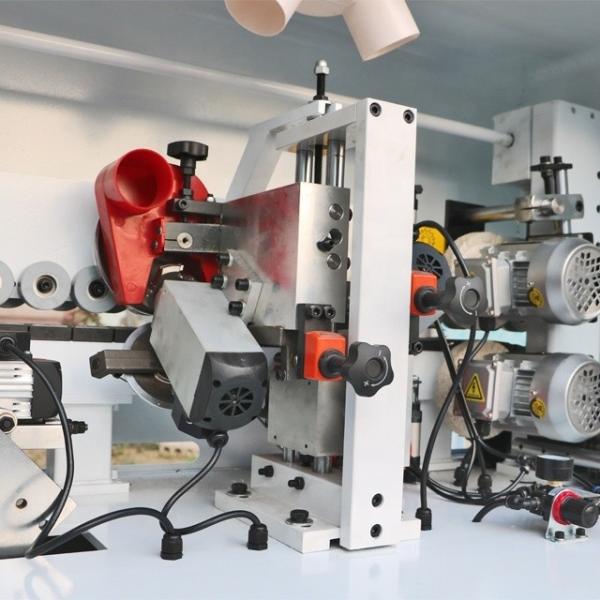

End Cutting
It is composed of front and rear cutting, and controlled by Taiwan Airtac solenoid valve, and is protected by unique head-bump protection function.cut by a special saw blade to enhance the stability of the end cutting.
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Fine Trimming
Fine trimming use oblique knife,it is used to seal some high-brightness seals without dark marks on the surface of the edge banding.
The fine trimming function could add pneumatic adjustment, when alter the edge banding tape thickness, the machine will automatic work, no need by manual adjustment.
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Polishing/Buffing
Use cotton polishing rollers to clean the processed plates, remove excess glue stains, and polish the edge-sealing tape surface
more smoothly and neatly. The high-power polishing motor makes the polishing smoother and more delicate.
Exhibition
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Company Profile
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Woodworking Machine Auto Edge Bander Machine with Custom Voltage
Qingdao Skyyi Hengtong Machinery Equipment Co.,Ltd is one of the leading manufacturer in the woodworking machinery of China. We have 10000sqm factory and well-known "TEING" brand of sliding table saw, edge banding machine, sanding machine and so on.
With more than 10 years in woodworking machine industry, our machine had sold out to more than 20 Chinese Province, and more than 30 countries and regions, such as: Vietnam, Malaysia, USA, Canada, Brazil, Preu, Pakistan, Russia, Ukraine, India, Uzbekistan, Israel, Yemen, Thailand, Mexico, Ecuador and so on.
We passed the ISO 9001:2008, SGS and other certification, we believe through our efforts to make "TEING" grow up to world famous brand in order to serve worldwide woodworking industry with our quality products.
