Small Woodworking Edge Banding Machine For Plywood High Speed
Small Woodworking Edge Banding Machine For Plywood High Speed
Specifications
Brand Name :
ZDS
Model Number :
F400
Place of Origin :
China
MOQ :
1sets
Price :
negotiate
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100sets/months
Delivery Time :
5-8 work days
Packaging Details :
Carton packing
Name :
Small High Speed Woodworking Machine Edge Banding Machine For Plywood
Voltage :
220V
Weight :
370kg
Warranty :
1 year
Dimension(l*w*h) :
240*70*120cm
Panel length :
≥6cm
Function :
gluing, scraping, end trimming, buffing
Working pressure :
0.6-0.8Mpa
Description

Small High Speed Woodworking Machine Edge Banding Machine For Plywood

F400-Edge banding machine

Main functions:

gluing, tape cutting, trimming, end trimming, scraping, polishing, vacuuming

Scope of application: straight edge sealing

Name Small High Speed Woodworking Machine Edge Banding Machine For Plywood
Model ZDS-F400
Rated voltage 220v
Rated power 3500w
Rated air pressure 0.4-0.6Mpa
Heating power 800w
Heating time 5-10min
Edge type straight line
Conveyor belt power 180w
Conveyor belt speed 0-14m/min

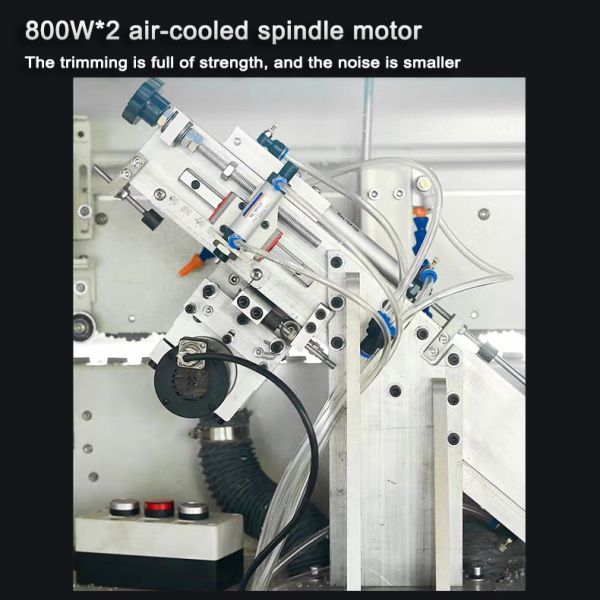

Trimming motor power 800w*2
Trimming motor speed 24000rpm
Polishing motor power 180w*2
Polishing motor speed 5500rpm
Strip width 10-55mm
Strip thickness 1-3mm
Sheet thickness 10-55mm
Sheet width ≥60mm
Size 240*70*120cm
Machine weight 370kg
