J C Type Woodworking Edge Bander Automatic 380V 0.8mpa
J C Type Woodworking Edge Bander Automatic 380V 0.8mpa
Specifications
Brand Name :
ZDS
Model Number :
JC680
Place of Origin :
China
MOQ :
1sets
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100sets/months
Delivery Time :
5-8 work days
Packaging Details :
Carton packing
Name :
Woodworking Edge Bander Edge Banding Machine
Voltage :
380V or Customer made
Total power :
28.6kw
Dimensions :
680*97*150cm
Description

J C Type Automatic Woodworking Edge Bander Edge Banding Machine

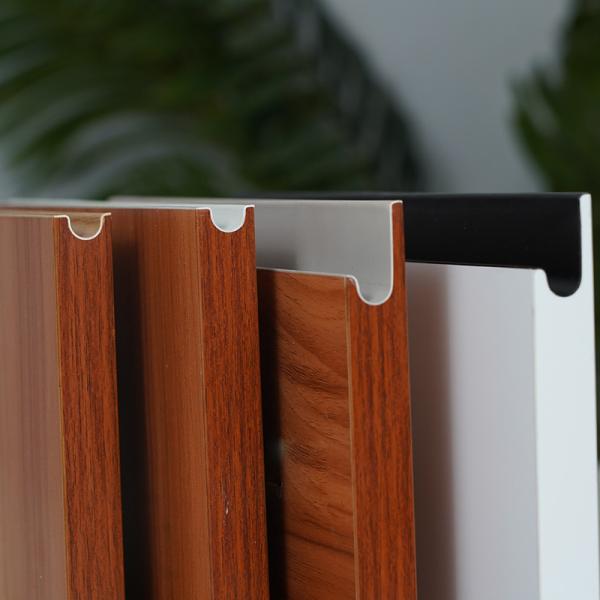

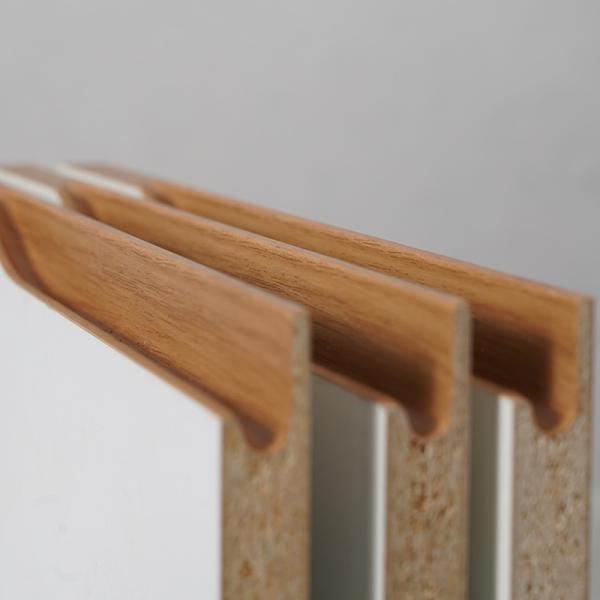

One machine for three purposes: J-type, C-type, straight edge banding

2.2kw high-torque industrial machinery conveying motor.

Aluminum alloy pressure beam + 10mm*2 steel plate.

High-power milling motor with higher efficiency.

Name J C Type Automatic Woodworking Edge Bander Edge Banding Machine
Voltage 380V Lifting motor 0.25kw Hot air gun 2kw*2
Total power 28.6kw Milling motor 7.5kw Glue pot heating 1.2kw
Weight 2060kg Polishing Motor 0.37kw*4 Glue pot capacity 2000ml
Dimensions 680*97*150cm Trimming motor 2.2kw*2 Sheet thickness 18-25mm(JC)
Barometric pressure 0.6-0.8mpa End cutting motor 0.37kw*2 Sheet width ≥100mm
Vacuum outlet φ100mm Conveying motor 2.2kw Sheet length ≥250mm

J C Type Woodworking Edge Bander Automatic 380V 0.8mpa

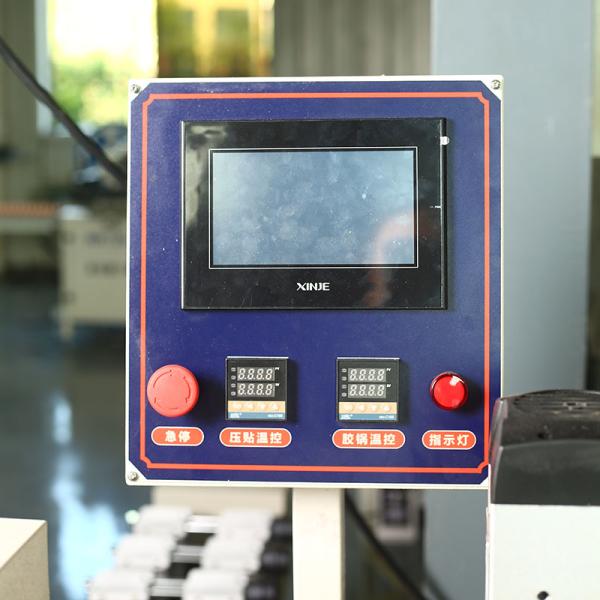

PLC control, touch screen operation, one-key switching of different types of edge banding, high stability.

J C Type Woodworking Edge Bander Automatic 380V 0.8mpa

The fuselage is made of high-strength steel, sandblasted after welding, with high strength and no deformation.

J C Type Woodworking Edge Bander Automatic 380V 0.8mpa

2.2kw high-power and high-torque industrial motor, strong transmission power.

J C Type Woodworking Edge Bander Automatic 380V 0.8mpa

7.5kw+3.7kw Milling motor, more power.

J C Type Woodworking Edge Bander Automatic 380V 0.8mpa

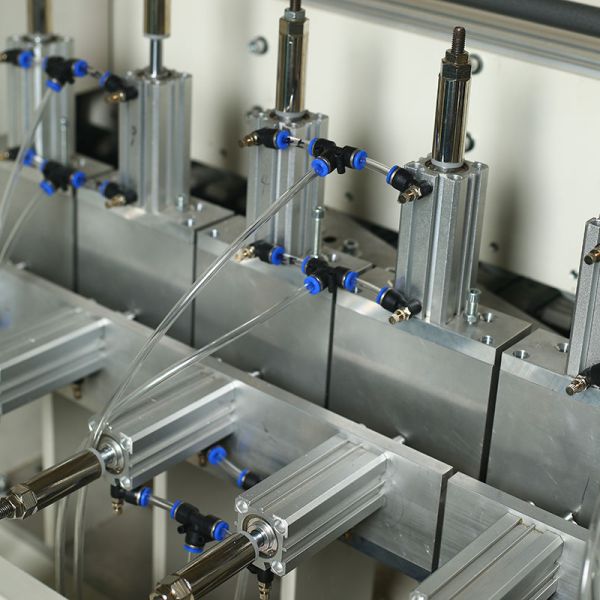

The pressing module adopts CNC milling, pneumatic operation, and more firm pressing.

J C Type Woodworking Edge Bander Automatic 380V 0.8mpa

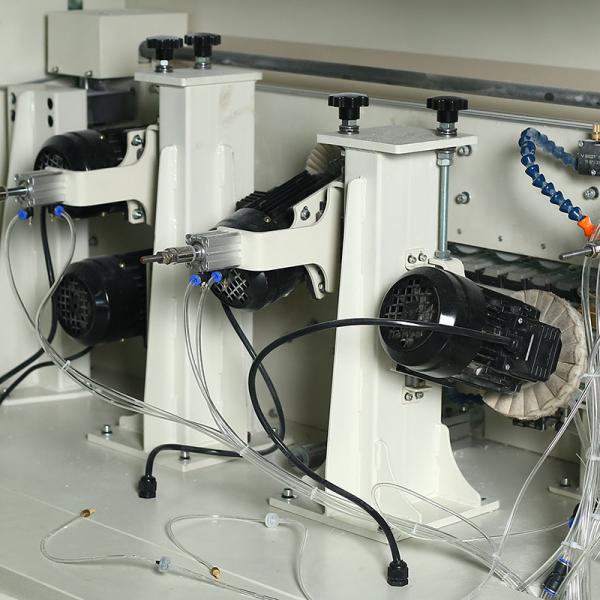

4 polishing motors, 150mm diameter polishing wheel, larger polishing width, reducing replacement frequency.

J C Type Woodworking Edge Bander Automatic 380V 0.8mpa

J C Type Woodworking Edge Bander Automatic 380V 0.8mpa
