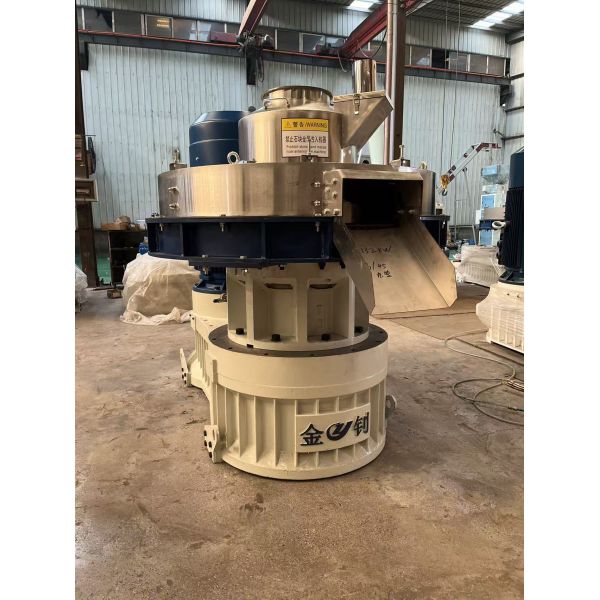

High-Efficiency Centrifugal Vertical Ring Die Wood Pellet Machine Model XGJ560
High-Efficiency Centrifugal Vertical Ring Die Wood Pellet Machine Model XGJ560
Specifications
Brand Name :
JZ
Model Number :
XGJ560
Place of Origin :
Jinan
MOQ :
1
Payment Terms :
T/T
Supply Ability :
30sets per year
Delivery Time :
5-8working days
Packaging Details :
suitable packing for sea freight
Color :
Customized
Pellet Length :
Adjustable
Application :
Biomass mateirals pellet making machine
Power :
132kw
Capacity :
1500-2000KG/H
Spare parts :
Roller shell and die
Motor Brand :
Well-known brands
Lubrication :
Auto
Description
High-Efficiency Centrifugal Vertical Ring Die Wood Pellet Machine Model XGJ560
Core Functions & Advantages:
  • Centrifugal Force Utilization: The vertical design allows the rollers to rotate while the die remains stationary. This creates a centrifugal force that distributes the raw material evenly across the inner circumference of the die.
  • Dual-Layer Die Technology: Our ring dies are manufactured from high-grade stainless steel/alloy. Once one side is worn, the die can be flipped, effectively halving your maintenance costs.
  • Independent Automatic Lubrication: A specialized oil pumping system ensures the pressure rollers and main shaft are lubricated in real-time, allowing for 24-hour continuous production.
  • High-Efficiency Gearbox: Equipped with a heavy-duty, multi-stage gear transmission system, the XGJ560 offers a 20% higher power transmission efficiency compared to belt-driven models.
Technical Specifications:
Model Main Power(KW) Capacity(t/h) Weight(T) Dimension(mm)
XGJ560A 90 1-1.5 4.6 2300*1300*1800
XGJ560-6th 132 1.5-2 4.8 2300*1300*1850
XGJ560-7th 132 1.5-2 5 2400*1250*1900
XGJ560-8th 132 1.5-2 5.1 2520*1500*1770
Versatile Product Applications
  • The XGJ560 is a versatile powerhouse capable of processing a vast array of biomass waste into premium grade A1/A2 pellets for residential heating or industrial power generation.
  • Wood Processing Waste: Sawdust, wood chips, shavings, bark, and logs (after chipping/grinding).
  • Agricultural Residue: Rice husks, sunflower seed shells, peanut shells, straw, and corn stalks.
  • Forestry Management: Tree branches, twigs, and leaves.
  • Specialized Materials: Bamboo dust, palm fiber, and EFB (Empty Fruit Bunches).
FAQ
  1. Q1. What is your payment term for 1500-2000KG/H Ring Die Cow Dung Pellet Machine 132kw Biomass Pellet Making Machine?
    A1: T/T 30% down payment, the balance to be paid before shipment.
  2. Q2: What is your main market for 1500-2000KG/H Ring Die Cow Dung Pellet Machine 132kw Biomass Pellet Making Machine?
    A2: Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia
  3. Q3: What is your delivery time for 1500-2000KG/H Ring Die Cow Dung Pellet Machine 132kw Biomass Pellet Making Machine?
    A3: Unit pellet machine can be done well within 7 working days. Complete line will be done with 15-50 working days, the specific time depends on the amount of equipment you purchased.
  4. Q4: What documents you can offer for 1500-2000KG/H Ring Die Cow Dung Pellet Machine 132kw Biomass Pellet Making Machine?
    A4: Invoice, packing list, contract for customs declaration, certificate of origin, Form E etc, If client need other documents, specifications, please confirm with service staff.
  5. Q5: If machine have some quality problem, your solutions for 1500-2000KG/H Ring Die Cow Dung Pellet Machine 132kw Biomass Pellet Making Machine?
    A5: If finally confirm our side machine quality problem within guarantee time, we will responsible for it. Change all the parts for free.
  6. Q6: When can I get the quotation for 1500-2000KG/H Ring Die Cow Dung Pellet Machine 132kw Biomass Pellet Making Machine?
    A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
