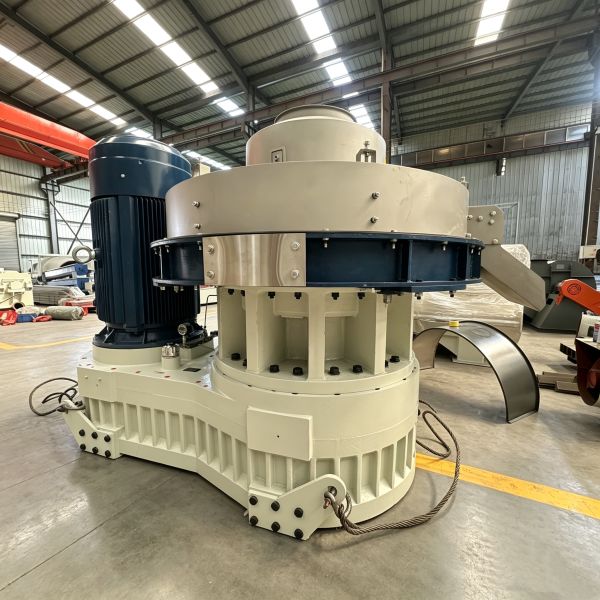

Wood Pellet Machine 220kW Industrial Pellet Press 2.5-3.5 t/h for Large-Scale Biomass Production
Wood Pellet Machine 220kW Industrial Pellet Press 2.5-3.5 t/h for Large-Scale Biomass Production
Specifications
Brand Name :
Jinzhao
Model Number :
XGJ850
Place of Origin :
Shandong, China
MOQ :
1sets
Payment Terms :
T/T 30% down payment,the balance to be paid before shipment.
Supply Ability :
50set/quarter
Delivery Time :
7 days
Packaging Details :
container
Dimension(L*W*H) :
3200 x 1500 x 2600
Production Capacity :
3.5 – 5.5tons per hour (depending on raw material density & moisture)
Final Pellet Diameter :
4 mm – 12 mm (customizable)
Capacity :
Based On Your Need
Spare Parts :
Die And Roller Shell
Roller Quantity :
2pcs
Power :
250kw
Dust collector :
Double Bag Dust Collector For Pellet Machine
Description
Wood Pellet Machine 220kW Industrial Pellet Press 2.5-3.5 t/h for Large-Scale Biomass Production
Product Overview

The XGJ850 Wood Pellet Machine is an industrial-grade ring die pellet mill designed for high-volume wood processing plants, biomass fuel production facilities, and large-scale animal feed operations. Built to handle demanding 24/7 production environments, this machine transforms raw wood chips, sawdust, shavings, and other biomass residues into high-density, premium quality pellets.

Functional Highlights

Wood Biomass Pelleting – Converts dry or slightly moist sawdust, shavings, wood chips, and bark into Bioenergy .

Agricultural Residue Processing – Pellets corn stalks, straw, peanut shells, sunflower husks, and coffee grounds (requires pre-grinding).

Animal Feed Production – Compresses mixed grain, alfalfa, and additive formulas into uniform, easy-to-store feed pellets.

Fertilizer Pelletizing – Suitable for organic fertilizer granules from poultry litter or compost.

Technical Specifications
Item Technical Specification
Product Model XGJ850
Rated Main Power 220KW
Production Capacity 2.5-3.5 Ton/Hour
Overall Dimension (L*W*H) 3000*1600*2300 (mm)
Weight (T) 8.5
Applicable Raw Materials Wood sawdust, wood chips, straw, rice husk, palm fiber, crop residues
Pellet Diameter 4-12mm (Customizable)
Transmission Mode Reducer + Elastic Coupling
Lubrication System Automatic Circulating Cooling Lubrication
Working Mode Vertical Ring Die Continuous Pressing
Competitive Advantages
  1. Lower Cost Per Ton
    Thanks to the 220kW direct-drive structure, energy consumption per ton is significantly reduced compared to smaller or gear-driven models.
  2. Faster ROI with Higher Throughput
    At 2.5–3.5 t/h, you reach monthly production targets faster. Many competitors in this price range max out at 2 t/h.
  3. Built for 24/7 Industrial Use
    Double-layer roller bearings + forced cooling system – the XGJ850 does not require a cool-down break after 2 hours of operation.
  4. Easy Maintenance & Low Wear Parts Cost
    Ring die and rollers can be replaced within 90 minutes by two technicians. Common spare parts are globally compatible.
  5. Safety & Environmental Compliance
    Fully enclosed casing reduces dust and noise. Equipped with emergency stop and vibration sensors — meets CE safety guidelines.
