XGJ700 Wood Pellet Machine High-Capacity Biomass Pellet Mill for Industrial Fuel Production
XGJ700 Wood Pellet Machine High-Capacity Biomass Pellet Mill for Industrial Fuel Production
XGJ700 Wood Pellet Machine High-Capacity Biomass Pellet Mill for Industrial Fuel Production
XGJ700 Wood Pellet Machine High-Capacity Biomass Pellet Mill for Industrial Fuel Production
Specifications
Brand Name :
Jinzhao
Model Number :
XGJ700
Place of Origin :
Shandong, China
MOQ :
1sets
Payment Terms :
T/T 30% down payment,the balance to be paid before shipment.
Supply Ability :
50set/quarter
Delivery Time :
7 days
Packaging Details :
container
Dimension(L*W*H) :
2800x1300x2100mm
Production Capacity :
1.2 – 1.8 tons per hour (depending on raw material density & moisture)
Final Pellet Diameter :
6 mm, 8 mm, 10 mm, 12 mm (customizable)
Capacity :
Based On Your Need
Spare Parts :
Die And Roller Shell
Roller Quantity :
2pcs
Power :
132kw/160kw
Dust collector :
Double Bag Dust Collector For Pellet Machine
Description
XGJ700 Wood Pellet Machine High-Capacity Biomass Pellet Mill for Industrial Fuel Production
Product Overview

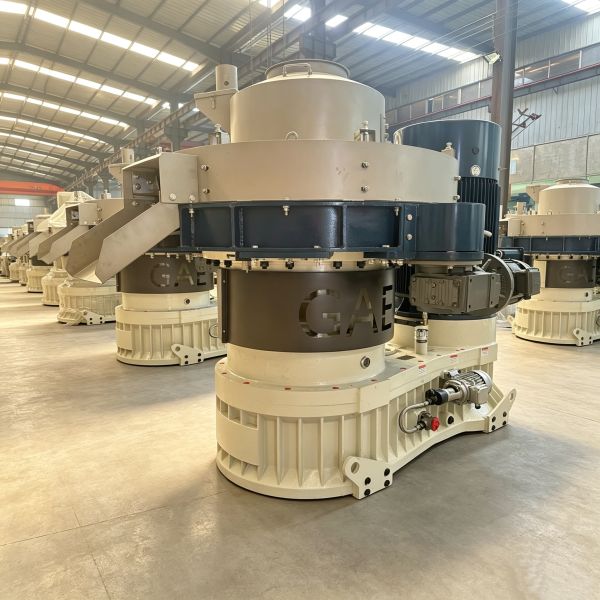

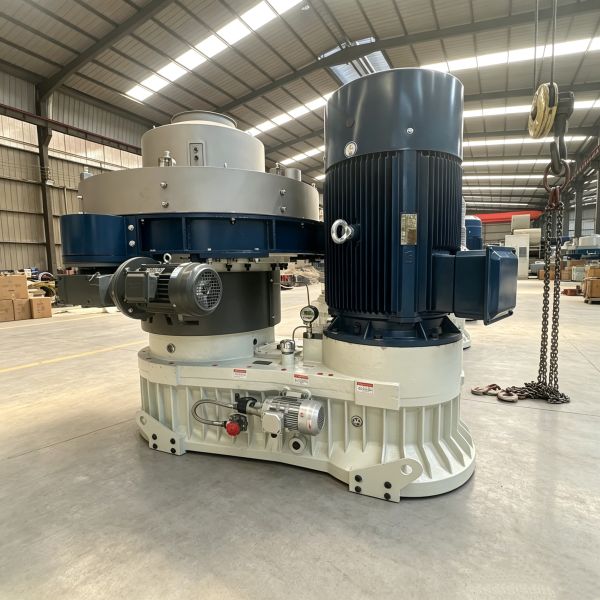

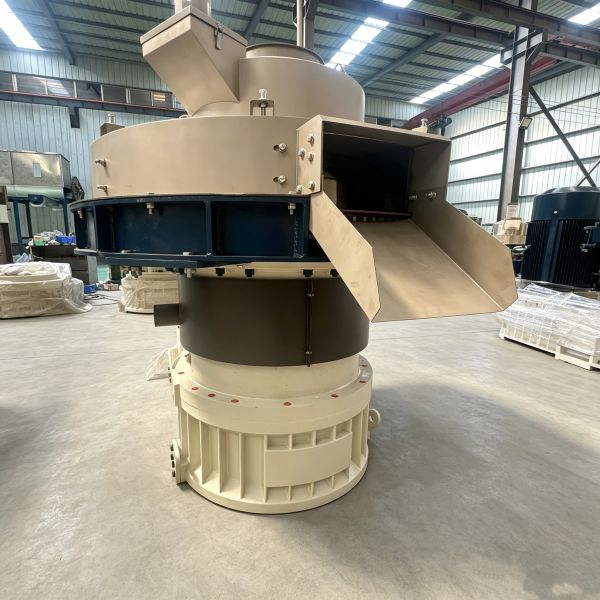

The XGJ700 Wood Pellet Machine is a heavy-duty, industrial-grade biomass pellet mill engineered for the efficient conversion of raw wood materials into high-density wood pellets. Designed for medium to large-scale production lines, this machine is the ideal solution for sawmills, furniture factories, and biomass power plants looking to transform waste materials—such as sawdust, wood shavings, logs, and agricultural stalks—into valuable renewable energy sources.

Competitive Advantages:
  • High Compression Ratio: The gear-driven transmission system provides higher torque, allowing the machine to compress hardwood and tough biomass materials that other mills might struggle with.
  • Cost-Effective Operation: The combination of a high-efficiency motor and the vertical ring die design reduces electricity consumption per ton of pellets produced, lowering your operational costs.
  • Durability: Critical wear parts, such as the ring die and rollers, are made from high-chrome alloy steel (or stainless steel options), offering excellent resistance to abrasion and corrosion.
  • Versatility: While optimized for wood, the XGJ700 can be adapted to process various agricultural wastes, including straw, rice husks, and peanut shells, making it a versatile asset for diverse biomass projects.
  • Global Compliance: Manufactured to meet international safety and quality standards, ensuring reliability and ease of integration into existing production lines worldwide.
Technical Parameters:
Parameter Name Specification
Model XGJ700
Type Vertical Ring Die Wood Pellet Machine
Production Capacity 1.2-1.8 T/H (tons per hour)
Main Motor Power 160KW
Pellet Diameter 6mm, 8mm, 10mm, 12mm (adjustable)
Machine Weight 5.8T
Overall Dimension (L*W*H) 2800x1300x2100mm
Control Mode Electric Cabinet Control
Certification CE, ISO
