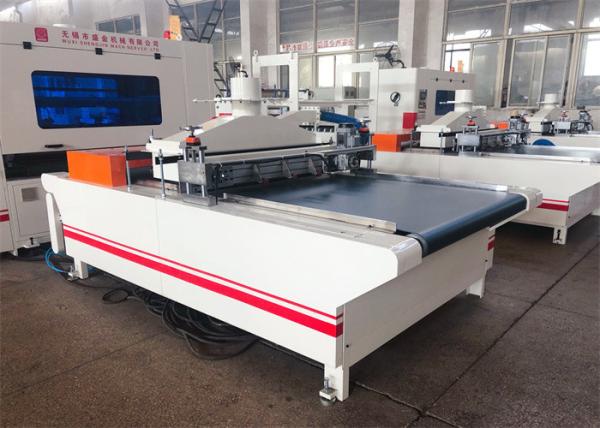

PVC HPL Acrylic PUR Hot Melt Laminating Machine With Auto Cuttor
PVC HPL Acrylic PUR Hot Melt Laminating Machine With Auto Cuttor
PVC HPL Acrylic PUR Hot Melt Laminating Machine With Auto Cuttor
PVC HPL Acrylic PUR Hot Melt Laminating Machine With Auto Cuttor
PVC HPL Acrylic PUR Hot Melt Laminating Machine With Auto Cuttor
PVC HPL Acrylic PUR Hot Melt Laminating Machine With Auto Cuttor
PVC HPL Acrylic PUR Hot Melt Laminating Machine With Auto Cuttor
PVC HPL Acrylic PUR Hot Melt Laminating Machine With Auto Cuttor
PVC HPL Acrylic PUR Hot Melt Laminating Machine With Auto Cuttor
PVC HPL Acrylic PUR Hot Melt Laminating Machine With Auto Cuttor
PVC HPL Acrylic PUR Hot Melt Laminating Machine With Auto Cuttor
PVC HPL Acrylic PUR Hot Melt Laminating Machine With Auto Cuttor
Specifications
Brand Name :
Sheng jin
Model Number :
RTM1300A Hot-Melt Glue Sticking Machine
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD56000~65500/SET
Payment Terms :
T/T ,Deposit 30% Remaining 70% before departure
Supply Ability :
2 SET /Month
Delivery Time :
25 Working Days
Packaging Details :
1×40 HC+1×20GP （Pearl cotton + winding film packaging）
Product name :
PUR Hot Melt Laminating Machine
Usage :
Laminating MLB(Multi laminating board)/PVC foam board /MDF/CHIP board with surface decorative sheet or coil.
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support
Type :
Laminating Machine
Weight :
About 7300KG
Driven type :
Electric
Description

PVC HPL Acrylic PUR Hot Melt Laminating Machine With Auto Cuttor

1. Basic Panel:

MLB(Multi laminating board)/PVC foam board /MDF/CHIP Board

2. Two Laminating Models Of Face Materials:

① Sheet Model:Like Acrylic/HPLthickness0.35-2mm

② Film Continue Model:LikePVC/PET film thickness 0.1mm-0.5mm but High gloss PVC film thickness more than 0.4mm

3. Working Principal:

① Sheet Model:

The bottom plate is manually fed from the1#Dust cleaning conveyor, after 2#Anilox rollgluing machine,the bottom plate is covered with glue and then conveyed to the front stalls by the 3# Automatic laminating machine,the sucker is sucked up from the sheet stacking area (sheet by artificial feeding),automatically attach to glued floor,floor forward transportation,after pressing by 4#Press machine,plate output from 5# Out plate conveyor,artificial feeding.

② Film Continue Model:

The bottom plate is manually fed from the 1#Dust cleaning conveyor,after 2#Anilox rollgluing machine,the bottom plate is covered with glue and then conveyed by inclined rollers along the 3# Automatic laminating machine,to 4# press machine and roll fit,plate output from 5# out plate conveyor,after trimming off by artificial feeding.

3. Technical parameters

1. Panel effective width:800-1300mm

2. Panel effective length:2-2500mm

3. Glued panel effective thickness:5—50mm

4. Composite Panel effective thickness:5—70mm

5. Speed:5-20m/min

6. Opreating height:800mm

7. Total power: About 63KW

8. Visual size:13400*3600*2800mm(With crane)

9. Whole line control:equipment for the whole line control
