380V Wood Sawdust Block Making Machine with Continuous Work Mode and 550-600Kg/m3 Density for Efficient Pallet Block Production
380V Wood Sawdust Block Making Machine with Continuous Work Mode and 550-600Kg/m3 Density for Efficient Pallet Block Production
380V Wood Sawdust Block Making Machine with Continuous Work Mode and 550-600Kg/m3 Density for Efficient Pallet Block Production
380V Wood Sawdust Block Making Machine with Continuous Work Mode and 550-600Kg/m3 Density for Efficient Pallet Block Production
380V Wood Sawdust Block Making Machine with Continuous Work Mode and 550-600Kg/m3 Density for Efficient Pallet Block Production
380V Wood Sawdust Block Making Machine with Continuous Work Mode and 550-600Kg/m3 Density for Efficient Pallet Block Production
Specifications
Brand Name :
BEDO
Model Number :
BD100*100
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
50 Set/Sets per Month
Delivery Time :
7-10 working days after down payment
Packaging Details :
Plastic film packed in full container
Name :
Wood Sawdust Block Making Machine
Voltage :
380V
Pressure :
3-5MPa
Work Mode :
Continuous
Density :
550-600Kg/m3
Material :
Wood Sawdust, Wood Shavings, etc.
Moisture :
10-15%
Block Size :
90*90mm
Description
380V Wood Sawdust Pallet Block Compressed Making Machine
This industrial machine is designed to produce pallet blocks, the core components of block pallets. It efficiently recycles wood waste materials, transforming them into high-quality pallet blocks while contributing to environmental protection. The finished blocks achieve E1 grade certification and can be manufactured as solid or hollow configurations.
Key Features
  • Recycles various wood waste materials including leftovers, building templates, and other wood residues to reduce raw material costs
  • Single machine capable of producing two different block sizes
  • Automated production system with automatic metering, feeding, mixing, discharging, material shortage warning, and cutting functions
  • Labor-saving operation enables efficient 24-hour production cycles
Technical Specifications
Model BD75*75 BD80*80 BD100*100
Block Dimensions (mm) 75-145 75-100 -
Power (kW) 27.2 36 48
Density (kg/m³) 550-600
Production Efficiency (m³/24h) 2-5 5-6 6-7
Dimensions with Saw (mm) 5000×500×1300 8000×700×1500
Weight (kg) 1500 2000 2100
Block size: 75-145 mm width, 75-145 mm length. Custom sizes available upon request.
Compatible Raw Materials
This machine processes various wood waste materials including sawdust, wood chips, shavings, logs, planks, branches, waste pallets, furniture slabs, slats, garden wood core, and waste veneer. It also accommodates non-wood materials such as cotton stalk, reed, bamboo, and other fibrous materials. Raw materials must be crushed to required specifications prior to pressing to ensure uniform fiber alignment and superior block quality.
Production Process

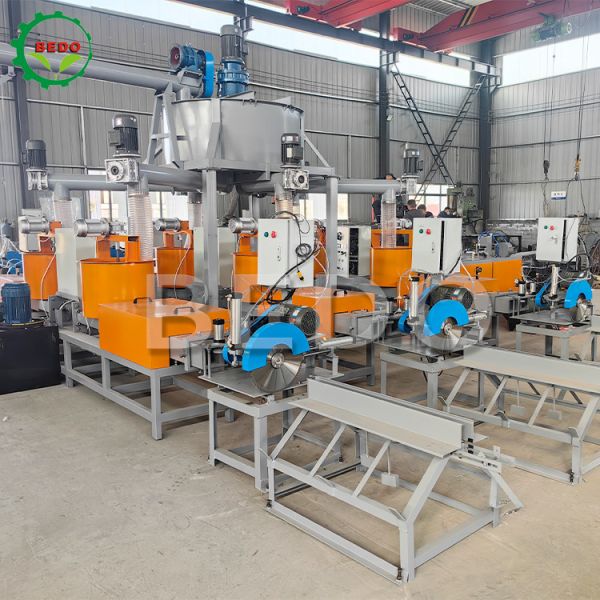

The complete production line consists of a wood crusher, wood sawdust dryer, glue mixer, and the compressed wood pallet block machine.
Finished Block Advantages
Smooth surface finish, high strength, minimal deformation, cost-effective production, and fumigation-free export compliance. Custom block sizes available.
Frequently Asked Questions
  • What is the strength of these blocks?
    Block strength correlates with density. Standard density is 600kg/m³, providing excellent strength. Higher density options available for increased strength requirements.
  • Are the blocks waterproof?
    Yes, our manufacturing technology ensures waterproof properties. Testing shows minimal swelling and maintained strength after 7 days of water immersion.
  • Do blocks meet Epal quality standards?
    Yes, our blocks exceed Epal quality standards.
  • Can blocks be exported directly?
    Yes, blocks undergo high-temperature and high-pressure processing, making them suitable for direct export without fumigation.
  • Do you offer automated production technology?
    Yes, we provide fully automated production solutions tailored to your requirements.
Technical Support & Services
Our company provides comprehensive technical support and service for the Wood Sawdust Pallet Block Compressed Making Machine. Our experienced engineering team offers installation, commissioning, and after-sales services. We provide prompt customer support, regular maintenance, and repair services to ensure optimal machine performance. Customized service plans include onsite visits, remote support, troubleshooting, and operator training programs.
380V Wood Sawdust Block Making Machine with Continuous Work Mode and 550-600Kg/m3 Density for Efficient Pallet Block Production
