High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
Specifications
Place of Origin :
Shandong, China
Condition :
New
Type :
CNC-dovetail tenoner
Brand Name :
OSETMAC
Voltage :
380v, 380v 50HZ 3 ph
Dimension(L*W*H) :
4100x800x1620mm
Power (kW) :
8.65KW
Weight (KG) :
1300 kg
Applicable Industries :
Building Material Shops, Manufacturing Plant, Construction works
Warranty :
1 Year
Key Selling Points :
Long Service Life
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor
HS Code :
8465100000
After-sales Service Provided :
Video technical support
After Warranty Service :
Video technical support, Online support
Local Service Location :
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea
Showroom Location :
Malaysia, None
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Certification :
CE ISO
Packaging Details :
WOODEN CASE PACKING stretch film
Port :
Qingdao port
Supply Ability :
10000 Set/Sets per Year
Price :
$10,800.00/sets 1-2 sets
Description
Product Description

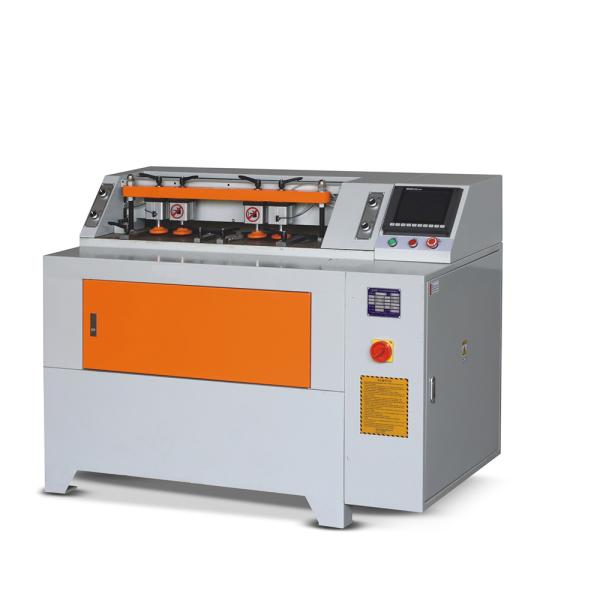

CNC-dovetail tenoner CNC600
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
Main Technical Parameter
Parameters
Model
CNC-600
Spindle Speed
18000rpm
Spindle Motor
4.5kw
X-axis ServoMotor
0.75kw
Y-axis ServoMotor
0.75kw
Install Power
6kw
Processing Width
600mm
Process Thickness
5-35mm
Tenoning Space
Cutting Period
3-30S
Net Weight
589kg
Overall Dimensions
1470*895*1165mm
Packing&Shipping
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
Company Introduction
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One
Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
wood drilling machine and CNC routers. What’s more, our products have been sold to more than 30 countries and regions in Middle
East, Southeast Asia, Europe and South America.OSETMAC is able to do our own R&D, deliver production task on time and provide
customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
CE certificate.
The goal of OSETMAC is to provide high-quality products to our customers, assist your business and become one of the leading
companies in woodwoking machines field.
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece
High Precision CNC-dovetail Tenoner CNC600 for 4100x800x1620mm Workpiece

Our Services & Strength

Our two factories been well-recognized as a professional woodworking machine producer, with such star products as sliding table
saw, brush sanding machine, edge banding machine, etc. What’s more, the products have been sold out to more than 20 countries and
regions in Middle East, Southeast Asia, Europe and South America.
