Specifications
Place of Origin :
Shandong, China
Condition :
New
Type :
Edge Banding Machine
Brand Name :
OSET
Voltage :
380V, 380V/50HZ/3PH
Dimension(L*W*H) :
4100x800x1620mm
Power (kW) :
8.65KW
Weight (KG) :
1490 kg
Applicable Industries :
Building Material Shops, Manufacturing Plant, Construction works , Advertising Company
Warranty :
1 Year
Function :
Gluing, Fine Trimming, End Trimming, Scraping, Buffing
Key Selling Points :
Automatic
Panel Feed Speed(m/min) :
23m/min
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, PLC, Engine
Use :
MDF Production
Panel Thickness :
10-60mm
Edge Band Thickness :
0.3-3mm
Panel Width :
≥60mm
Price :
$9,000.00/sets 1-4 sets
Description
Product Description

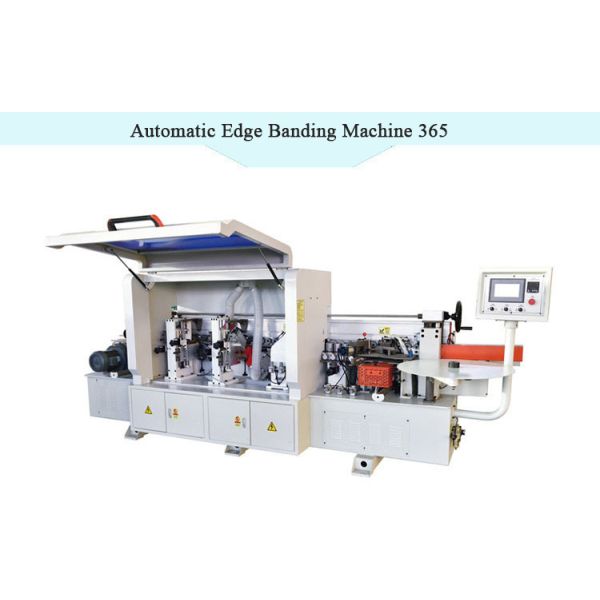

High Speed Automatic Edge Banding Corner Rounding Machine Edge Banding Machine With Trimmer

23m/min Panel Feed Speed High Speed Automatic Edge Banding Corner Rounding Machine Trimmer

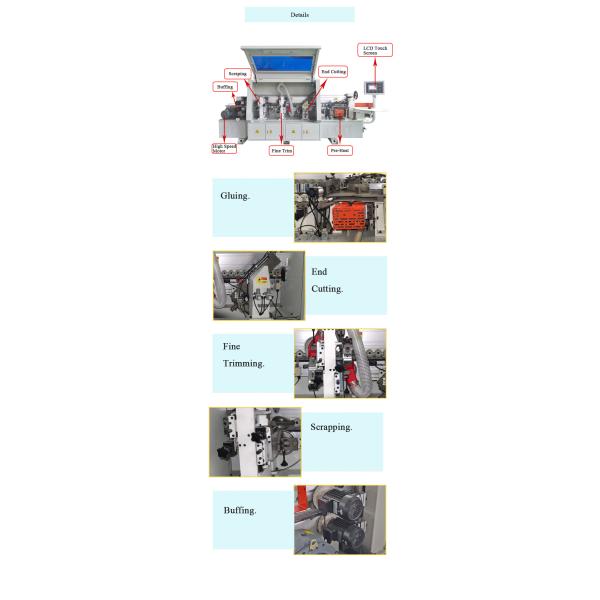

Description： * 5 Functions: Gluing--End Cutting--Fine Trimming--Scraping--Buffing * Working Voltage: 380V/50HZ /3PH * DELTA inverter or MCGS inverter for your choice. * PLC Touch Screen * CC highspeed motor. * The conveyor speed can be adjusted from 13-25m/min *Honeywell travel switch, contactor, air switch. *Air Tac solenoid valve, air cylinder,oil-water seperator. * With automatic oil feeder. *14mm high strenth steel sheet for the whole machine. * In the machine is mounted lights. * Support customization for the machine appearance.

Machine
Function

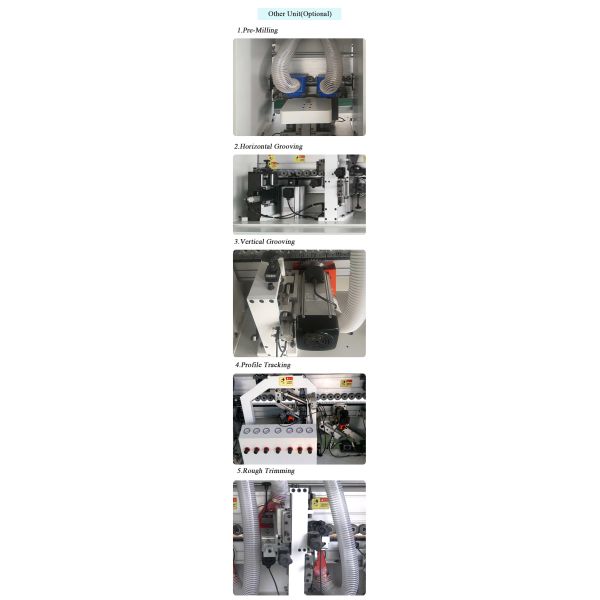

Pre-Milling
Gluing
End Cut
Rough Trim
Fine Trim
Corner Round
Scraping
Buffing
SYS-300
★
★
★
★
SYS-320
★
★
★
★
★
SYS-320A
★
★
★
★
★
SYS-320B
★
★
★
★
★
SYS-360
★
★
★
★
★
★
SYS-365J
★
★
★
★
★
★
★
SYS-368J
★
★
★
★
★
★
★
★
SYS-365
★
★
★
★
★
SYS-368
★
★
★
★
★
★
SYS-468
★
★
★
★
★
★
★
SYS-568
★
★
★
★
★
★
★
★
SYS-868
★
★
★
★
★★
★
★
Specification
Parameters
Model
SYS-365
Panel Thickness
10-60mm
Edge Band Thickness
0.3-3mm
Panel Width
≥60mm
Panel Length
≥150mm
Feeding Speed
15-23m/min
Working Pressure
0.6Mpa
Voltage
380V/50HZ/3PH
Gluing Motor
0.75KW 50HZ 1400RPM
End Cutting Motor
0.37KW * 2 200HZ 12000RPM
Trimming Motor
0.75KW * 2 200HZ 12000RPM
Buffing Motor
0.37KW * 2 50HZ 1400RPM
Conveyor Motor
2.2KW
Glue Pot Heating Power
2.4KW
Lighting Power
0.05KW
Lifting Motor
0.25KW
Total Power
8.65KW
Dimension
4100x800x1620mm
Wooden Crate Package
4200×900×1720mm
23m/min Panel Feed Speed High Speed Automatic Edge Banding Corner Rounding Machine Trimmer
23m/min Panel Feed Speed High Speed Automatic Edge Banding Corner Rounding Machine Trimmer
Packing & Delivery
23m/min Panel Feed Speed High Speed Automatic Edge Banding Corner Rounding Machine Trimmer
23m/min Panel Feed Speed High Speed Automatic Edge Banding Corner Rounding Machine Trimmer
Company Profile
23m/min Panel Feed Speed High Speed Automatic Edge Banding Corner Rounding Machine Trimmer
23m/min Panel Feed Speed High Speed Automatic Edge Banding Corner Rounding Machine Trimmer
23m/min Panel Feed Speed High Speed Automatic Edge Banding Corner Rounding Machine Trimmer
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
Certifications
23m/min Panel Feed Speed High Speed Automatic Edge Banding Corner Rounding Machine Trimmer
FAQ
1. who are we?
We are based in Shandong, China, start from 2018,sell to Southeast Asia(15.00%),Northern Europe(15.00%),North America(10.00%),Eastern Europe(10.00%),Western Europe(10.00%),Southern Europe(10.00%),South America(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Central America(5.00%),South Asia(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
SLIDING TABLE SAW,EDGE BANDING MACHINE,SANDING MACHINE,CNC ROUTER,WOODWORKING MACHINES

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
