Frequency Control 380V/220V Woodworking Sanding Machines
Frequency Control 380V/220V Woodworking Sanding Machines
Frequency Control 380V/220V Woodworking Sanding Machines
Frequency Control 380V/220V Woodworking Sanding Machines
Frequency Control 380V/220V Woodworking Sanding Machines
Frequency Control 380V/220V Woodworking Sanding Machines
Frequency Control 380V/220V Woodworking Sanding Machines
Frequency Control 380V/220V Woodworking Sanding Machines
Specifications
Brand Name :
OSETMAC
Model Number :
DT1000-6S(Z2Y2H2)
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30000set per year
Delivery Time :
5-15days
Packaging Details :
wooden box or as request
Warranty :
1 year
Condition :
new
Voltage :
380V/220V
Power :
12.14kw
Max working Width :
1000mm
Working Thickness :
8-160mm
Description

380V/220V Woodworking Sanding Machines Frequency Control DT1000-6S

Brush Sanding Machine For Polishing wood DT1000-6S

Advantage:

----A variety of arrangements of the roller , it can be customized according to the different polishing requirements .OEM&ODM are available .

----Imported high-quality sandpaper,Japan RIKEN brand sandpaper and Germany sandpaper are available.

----Fuselage platform through gantry milling processing, improve the service life of linear guide, workpiece polishing precision is higher.

----The machine is equipped with a frequency converter device, which can adjust different speed according to the hardness of polishing materials.

----The machine is equipped with pure copper core national standard motor and imported electrical parts to ensure the high quality and high efficiency of the machine.

----High work efficiency , every minute to grind a door , save time and labor .

Description:

Automatic Wood Brush Sanding Machine DT1000-6S is mainly for the grinding or sanding for door, cabinet , plywood,MDF and Other panel furniture or .it is widely applier to the board with primer ,PE ,PU,UV coating because of its good polishing effect .

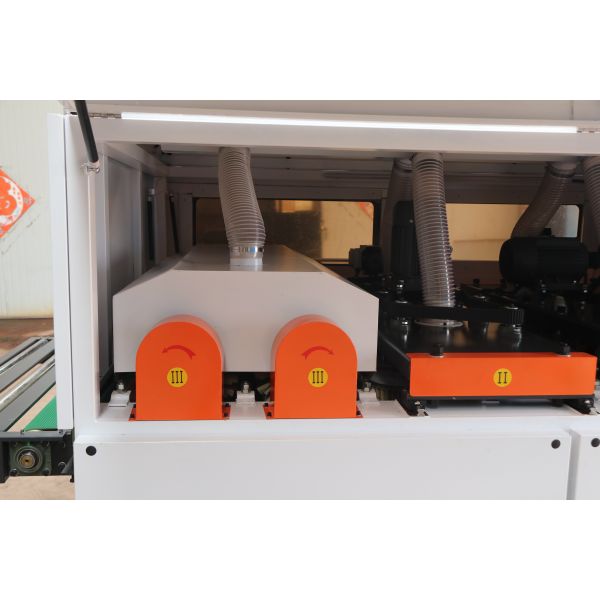

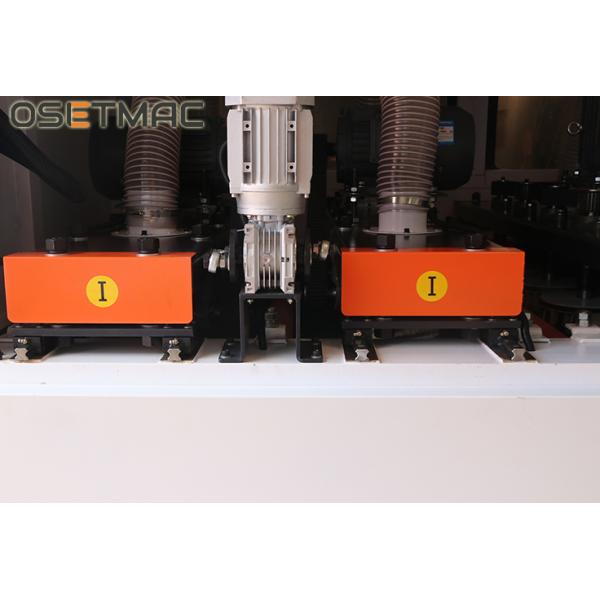

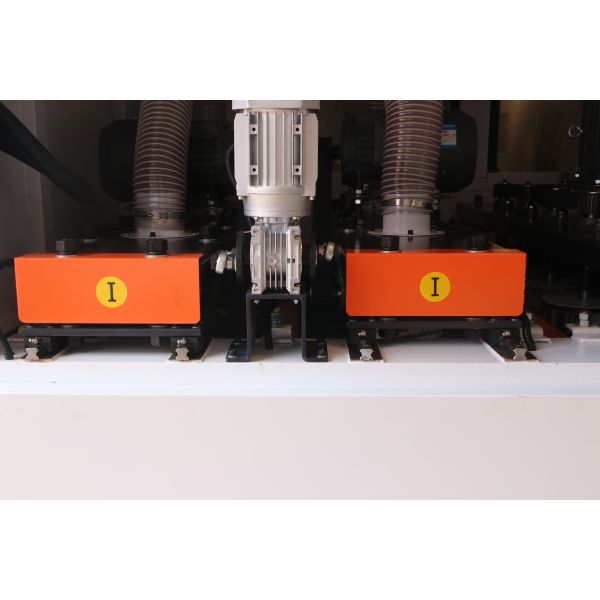

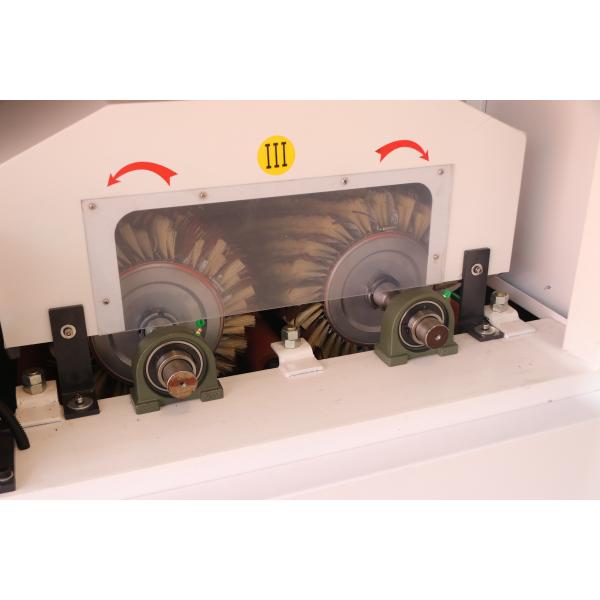

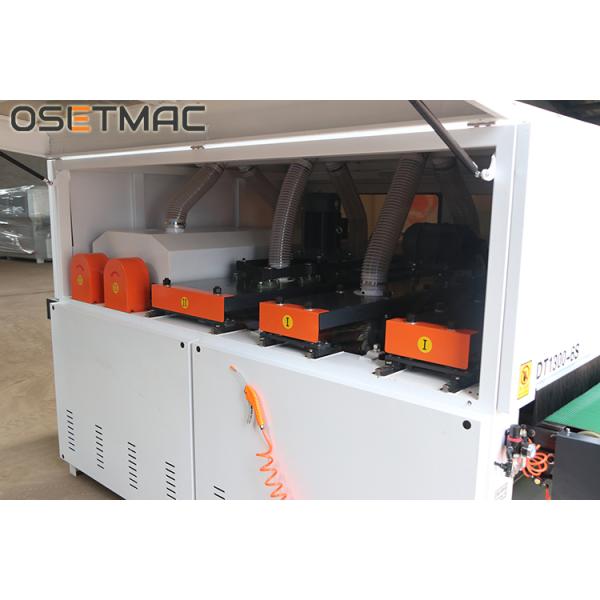

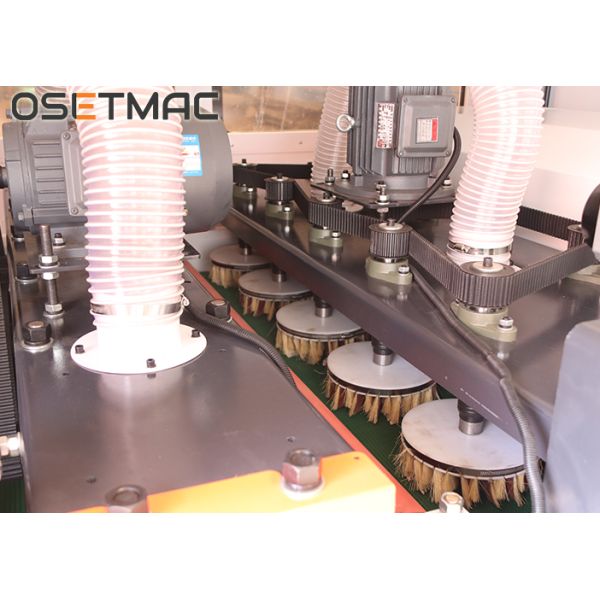

Inner Structure Sketch:

Frequency Control 380V/220V Woodworking Sanding Machines

Frequency Control 380V/220V Woodworking Sanding Machines

Frequency Control 380V/220V Woodworking Sanding Machines

Frequency Control 380V/220V Woodworking Sanding Machines

Frequency Control 380V/220V Woodworking Sanding Machines

Frequency Control 380V/220V Woodworking Sanding Machines

Frequency Control 380V/220V Woodworking Sanding Machines

Frequency Control 380V/220V Woodworking Sanding Machines

Frequency Control 380V/220V Woodworking Sanding Machines

Main Technical Parameter :

Specification Z2Y2H2
Max Working Width 1000mm
Working Thickness 8mm-160mm
Working Length ≥360mm
Conveyor Speed 5-20m/min
Wooden Case Weight 180kg
Total Power 11.47kw
Packing Dimension 3100*1760*1900mm
Net Weight 1600KG
Wooden Case Dimension 3180*1830*2150mm

Frequency Control 380V/220V Woodworking Sanding Machines

Frequency Control 380V/220V Woodworking Sanding Machines

Loading Container:

Frequency Control 380V/220V Woodworking Sanding Machines

Frequency Control 380V/220V Woodworking Sanding MachinesFrequency Control 380V/220V Woodworking Sanding Machines

Other Similar Product:

DT1000-6S(Y2H2H2)

Frequency Control 380V/220V Woodworking Sanding Machines

Main Technical Parameter :

Specification Y2H2H2
Max Working Width 1000mm
Working Thickness 8mm-160mm
Working Length ≥360mm
Conveyor Speed 5-20m/min
Total Power 12.14kw
Packing Dimension 2810*1760*1900mm
Net Weight 1600kg
Wooden Case Demension 2890*1830*2150mm
Wooden case Weight 170kg

DT1000-6S(Y2Y2H2)

Frequency Control 380V/220V Woodworking Sanding Machines

Main Technical Parameter :

Specification Y2Y2H2
Max Working Width 1000mm
Working Thickness 8mm-160mm
Working Length ≥360mm
Conveyor Speed 5-20m/min
Wooden Case Weight 180kg
Total Power 10.15kw
Packing Dimension 3100*1760*1900mm
Net Weight 1600KG
Wooden Case Dimension 3180*1830*2150mm

DT1000-6SY:

Frequency Control 380V/220V Woodworking Sanding Machines

Main Technical Parameter :

Specification Z2Y2H2
Max Working Width 1000mm /1300mm
Working Thickness 8mm-160mm
Working Length ≥360mm
Conveyor Speed 5-20m/min
Roller Speed Frequency Control
Total Power 11.65kw
Packing Dimension 3200*2100*1750mm
Net Weight 2400KG
Wooden Case Dimension 3200*2100*1750mm
