0.6Mpa PLC Control Woodworking Edge Banding Machine
0.6Mpa PLC Control Woodworking Edge Banding Machine
0.6Mpa PLC Control Woodworking Edge Banding Machine
0.6Mpa PLC Control Woodworking Edge Banding Machine
0.6Mpa PLC Control Woodworking Edge Banding Machine
0.6Mpa PLC Control Woodworking Edge Banding Machine
0.6Mpa PLC Control Woodworking Edge Banding Machine
0.6Mpa PLC Control Woodworking Edge Banding Machine
0.6Mpa PLC Control Woodworking Edge Banding Machine
0.6Mpa PLC Control Woodworking Edge Banding Machine
0.6Mpa PLC Control Woodworking Edge Banding Machine
0.6Mpa PLC Control Woodworking Edge Banding Machine
Specifications
Brand Name :
OSETMAC
Model Number :
SYS-300
Certification :
CE
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000set per year
Delivery Time :
5-8 work days
Packaging Details :
wooden case or as request
Description

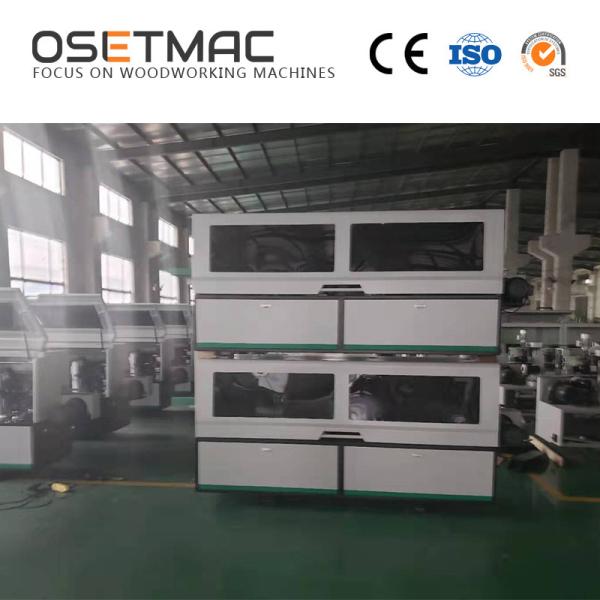

6.7KW Woodworking Edge Banding Machine PLC Control SYS-300

Automatic Edge Banding Machine SYS-300

MODEL: SYS-300
Panel Thickness: 10-60mm
Edge Band Thickness: 0.4-3mm
Panel Width: ≥60mm
Panel Length: ≥150mm
Feeding Speed: 15m/min
Working Pressure: 0.6Mpa
Voltage: 380V/50HZ/3PH
Gluing Motor: 0.37KW 50HZ 1400RPM
End Cutting Motor: 0.37KW * 2 200HZ 12000RPM
Fine Trimming Motor: 0.75KW * 2 200HZ 12000RPM
Buffing Motor: 0.37KW * 2 50HZ 1400RPM
Conveyor Motor: 1.5KW Glue Pot Heating Power:1.5KW
Assistant Heating Power: 0.3KW Lighting Power: 0.05KW
Total Power: 6.7KW
Dimension: 3800x900x1680mm

0.6Mpa PLC Control Woodworking Edge Banding Machine

0.6Mpa PLC Control Woodworking Edge Banding Machine

0.6Mpa PLC Control Woodworking Edge Banding Machine

Description:

*5 functions:Gluing--end cutting--Fine--Trimming--Scraping-Buffing

*PLC control with touch screen (141*195mm)

*Working Voltage:380v/50HZ/3PH

*Taiwan"DELTA"brand inverter,PLC Touch Screen

*The entire machine is painted in a white color

*In the machine is mounted lights

0.6Mpa PLC Control Woodworking Edge Banding Machine

0.6Mpa PLC Control Woodworking Edge Banding Machine
