3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision
3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision
3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision
3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision
3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision
3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision
3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision
3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision
3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision
3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision
3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision
3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision
Specifications
Place of Origin :
China
Brand Name :
Rensolin
Packaging Details :
Wrapped film or wooden box
Supply Ability :
300Sets/Month
Price :
$3,099.00/sets 1-2 sets
Certification :
CE,ISO
MOQ :
1Set
Delivery Time :
5-7days
Payment Terms :
T/T
Condition :
New
Type :
Panel Saw
Use :
Woodworking
Style :
Horizontal
Usage :
cutting board
Voltage :
220v/380v/415v
Dimension(L*W*H) :
3250*3350*900
Warranty :
5.5+1.1kw
Application :
wood factory, making furniture, decoration use
Weight (KG) :
950 KG
Key Selling Points :
Competitive Price
Max.Cutting Height at 90°(mm) :
70mm
Max.Cutting Height at 45°(mm) :
60mm
Max. Length of Workpiece (mm) :
3200mm
Applicable Industries :
Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Advertising Company, Other
Marketing Type :
hot product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
2 years
Core Components :
Motor
name :
panel saw
Dimension of sliding table :
3200*380mm
Gross cut capacity :
3200mm
The biggest cutting width :
1250mm
Height of cut(300mm) :
70mm
Max cutting thickness of 45degree :
55mm
Speed of main saw spindle :
6000r/min
Titing saw blade :
0-45degree
The motor power :
5.5+1.1kw
Model no :
R45
Port :
qingdao port,china
Description
sliding table cutter woodworking machine panel saw automatic 45/90 degree high precision high speed
3200mm Max. Workpiece Length Industrial Table Saw Horizontal Style for Precision Cuts
Products Description
3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision
Product Paramenters
Name
R45 panel saw
Dimension of sliding table
3200*390mm
Main spindle diameter
30mm
Maximum sawing length
3200mm
Maximum sawing width
1250mm
The motor power
5.5+1.1kw
Titing saw table
0-45degree
Speed of main saw spindle
6000r/min
Overall dimension
3250*3350*900mm
Gross weight
950kg
product advantages
Strong body
Use stronger with 6mm thick steel, All the body are cut by laser cutting machine, smoother without burr, make the machine very
stability, Fine appearance, beautiful and wear-resistant;.
3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision
3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision

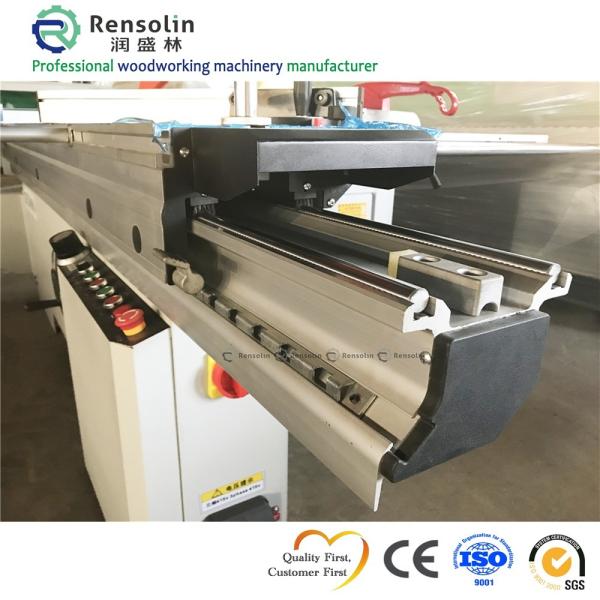

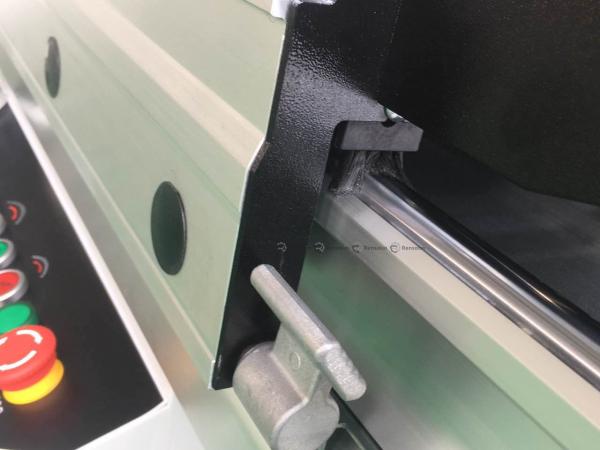

High-quality sliding table
1.use Import Yongli brand sliding table, guarantee high strength, no deformation, long service life; 2.Step-lock device, Firmly
fixed the sliding table; 3.Europe style double table, the double layers sliding table make the machine more stable and durable；

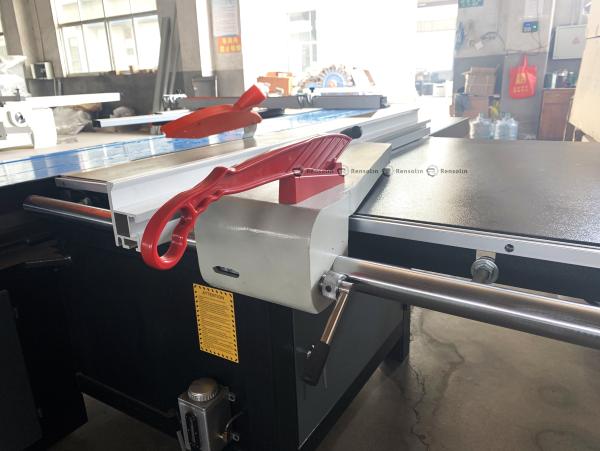

1.9m Large European
1.9m Large European shelf ruler, Aluminum alloy materials, stable and non displacement, saving time and labor,with clear, accurate data
3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision3200mm Industrial Table Panel Saw Horizontal Wood Plank Cutting Machine Precision

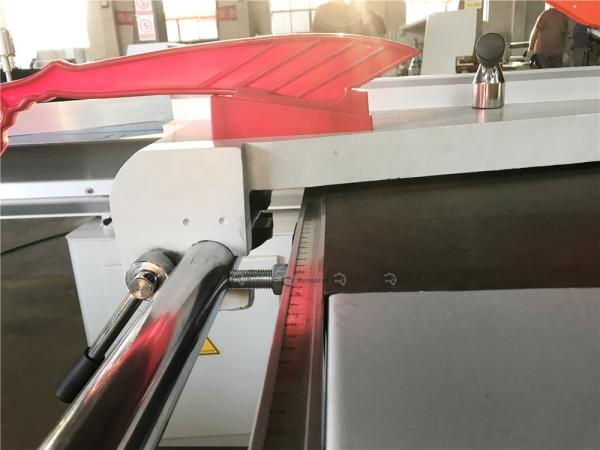

Bigger and longer Profiling seat
Bigger and longer Profiling seat, can be finely adjusted, and the size adjustment is more convenient.
SERVICE
PRE-SALE SERVICES:
1. Introduce and Provide detailed consultation of the machine
2. Strict quality control system, warranty period.:2years
3. Provide custom-made service offering good suggest and design idea to customer
4. Welcome to visit our factory
SERVICES DURING SALES:
1. Fast delivery and 100% QC Inspection before shipment
2. Install and debug the machine well in our factory
3. Provide safety package and shipping to clients
AFTER-SALE SERVICES:
1. Carefully train first-line operators operation knowledge
2. Engineers available to service machinery overseas timely.
3. Our sales team and senior engineer are ready for service for you in every 7*24hours.
FAQ
Q1: How to install?
A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.
Q2: How to ensure the safety?
A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?
A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?
A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?
A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north ofChina.
Q6: Are there any requirements for the dealer?
A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
