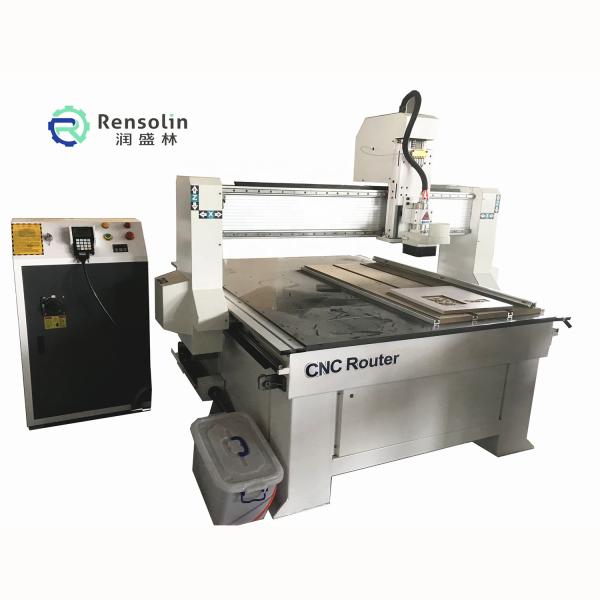

RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm
RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm
RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm
RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm
RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm
RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm
RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm
RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm
RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm
RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm
RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm
RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm
Specifications
Place of Origin :
China
Brand Name :
Rensolin
Packaging Details :
Wrapped film or wooden box
Supply Ability :
300Sets/Month
Price :
$3,000.00 - $7,000.00/sets
Certification :
CE,ISO
MOQ :
1Set
Delivery Time :
5-7days
Payment Terms :
T/T
Condition :
New
Range of Spindle Speed(r.p.m) :
15000 - 25000 rpm
Positioning Accuracy (mm) :
0.02 mm
Number of Axes :
Optional
No. of Spindles :
Optional
Working Table Size(mm) :
1300*1300*200mm
Machine Type :
CNC Router
Travel (X Axis)(mm) :
1300 mm
Travel (Y Axis)(mm) :
1300 mm
Repeatability (X/Y/Z) (mm) :
200 mm
Spindle Motor Power(kW) :
3kw
CNC or Not :
CNC
Voltage :
220v/380v/415v
Weight (KG) :
1000
Control System Brand :
DSP
Warranty :
2 years
Key Selling Points :
Multifunctional
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Energy & Mining, wood curving furniture door
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
2 years
Core Components :
Motor
Model :
UNICORN-RSL1313
XY Movement :
Rack and Pinion,gear drive/Taiwan
Z Movement :
German Ballscrew
Guide :
Taiwan Linear 20 square
XYZ Working area :
1300*1300*200mm
Max.Cutting speed :
25000mm/min
Max.Speed :
35000mm/min
Spindle :
3kw water cooling spindle (option: 4.5kw air cooled spindle)
Work Table :
T-slot vacuum table with 7.5kw pump
Inverter :
Fuling
Port :
Qingdao,China
Description
Taiwan Linear 20 Square Guide RSL1313 Multi 3D Wood Carving CNC Engraving Machine
Products Description
RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm
Product Paramenters
Name
CNC Router Machine RSL1313
XYZ Working area
1300*1300*200mm
Exercise system X axis/Y axis
Helical rack +20 square rail
Exercise system Z axis
R2510 ball screw +20 square rail
Drive System XYZ axis
Leisai HBS758S servo drive motor

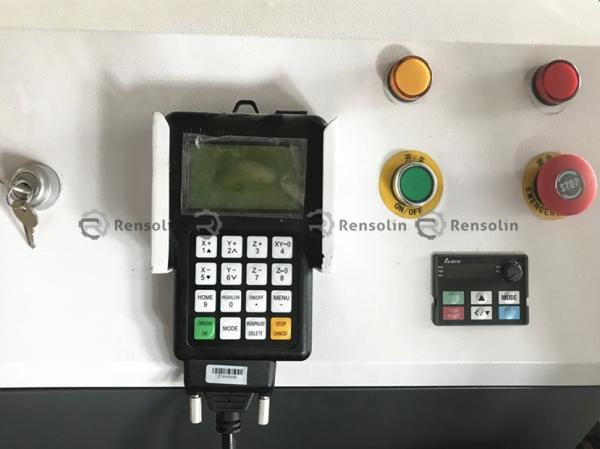

Control System Interface
DSPA11
Software
JD Paint
Engraving instruction
G-Code/HPGL-3D*nc
Spindle Power
3kw water cooling spindle
Lubrication system Thin oil
lubrication pump
Hand pressure pump

Here are its features:

1.The overall steel structure of the bed provides high stability.
2.Excellent components:
linear guides made in Taiwan; double-row four-row ball sliders, large bearing capacity, stable operation; German-made ball screws, accurate cutting
3.Reasonable design:
adopts advanced Y-axis double rack transmission, with fast speed and large power.
4.Worry-free performance:
It has functions such as continuous breakpoint carving, power failure recovery, and processing time prediction. It is a truly user-friendly design.
5.Software compatibility:
Open software interface, compatible with processing codes generated by various CAD/CAM design software such as type3/artcam/castmate/Wentai, to ensure the design is barrier-free.
SERVICE
PRE-SALE SERVICES:
1. Introduce and Provide detailed consultation of the machine
2. Strict quality control system, warranty period.:2years
3. Provide custom-made service offering good suggest and design idea to customer
4. Welcome to visit our factory
SERVICES DURING SALES:
1. Fast delivery and 100% QC Inspection before shipment
2. Install and debug the machine well in our factory
3. Provide safety package and shipping to clients
AFTER-SALE SERVICES:
1. Carefully train first-line operators operation knowledge
2. Engineers available to service machinery overseas timely.
3. Our sales team and senior engineer are ready for service for you in every 7*24hours.
FAQ
Q1: How to install?
A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.For sliding table saw you just need install sliding table on machine body by 4 bolts.
Q2: How to ensure the safety?
A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?
A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?
A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?
A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north of China.
Q6: Are there any requirements for the dealer?
A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
