Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Specifications
Place of Origin :
China
Brand Name :
Rensolin
Packaging Details :
Wrapped film or wooden box
Supply Ability :
300Sets/Month
MOQ :
1Set
Price :
$480.00/sets 3-5 sets
Certification :
CE,ISO
Delivery Time :
5-7days
Payment Terms :
T/T
Showroom Location :
Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Japan, Malaysia
name :
single head hinge drilling machine
Maximum drilling diameter :
Single hole 35mm
Dimensions :
1500*700*1450mm
application :
woodworking
Port :
Qingdao,China
Description

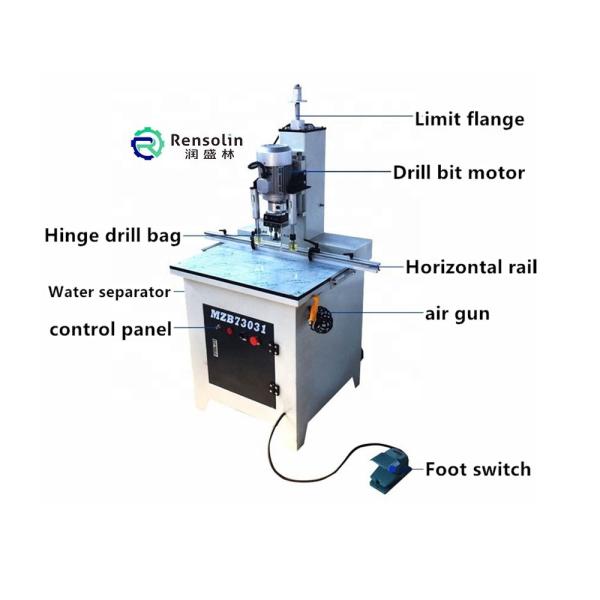

CNC Hinge Drilling Machine for Wood Door MZ73031A Single Head Vertical Boring Machine
Products Description
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Product Paramenters
name
single head hinge drilling machine
Motor Power
2.2KW
Overall size
1500*700*1450mm
Maximum drilling diameter
Single hole 35mm
Number of drill spindles
2 groups, 6
Maximum drilling depth
60mm
Maximum length of workpiece
1300mm
Machine weight
150kg

Use

Mainly for loose-leaf and hinge drilling, the drilling position can be adjusted longitudinally and horizontally, which can be easily and quickly adapted to the drilling processing requirements. It is an ideal equipment for cabinet, wardrobe, and door processing manufacturers.
product advantages
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm

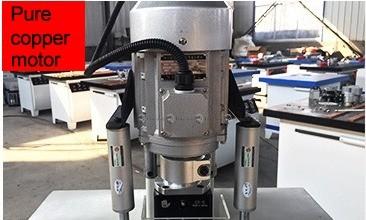

Pure copper motor

Pure copper motor, long-term use, higher efficiency.
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm

Depth positioning

Precision guide rail, deep positioning, high production accuracy.
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
One machine for multiple purposes, can drill different holes with a variety of drill bits
Single Head CNC Hinge Drilling Machine Vertical Boring Machine 1500mm
Service
PRE-SALE SERVICES:
1. Introduce and Provide detailed consultation of the machine.
2. Strict quality control system, warrantyperiod: 2 years.
3. Provide custom- -made service, offering good suggest and design idea to customer.
4. Welcome to visit our factory.
SERVICES DURING SALES:
1. Fast delivery and 100% QC Inspection before shipment.
2. Install and debug the machine well in our factory.
3. Provide safety package and shipping to clients.
AFTER-SALE SERVICES:
1. Carefully train frst-line operators' operation knowledge.
2. Engineers available to service machinery overseas timely.
3. Our sales team and senior engineer are ready for service for you in every 7x24h.
FAQ
Q1: How to install?
A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.
Q2: How to ensure the safety?
A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?
A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?
A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?
A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north ofChina.
Q6: Are there any requirements for the dealer?
A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
