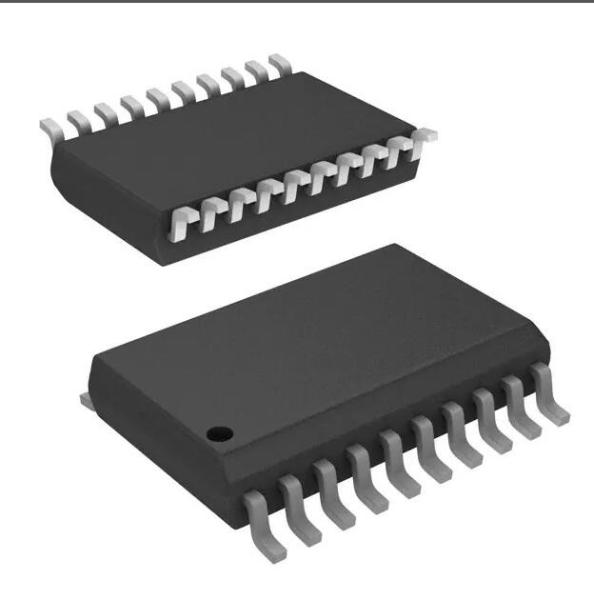

Original PIC16F685-I/SO from Microchip Technology
Original PIC16F685-I/SO from Microchip Technology
Original PIC16F685-I/SO from Microchip Technology
Original PIC16F685-I/SO from Microchip Technology
Specifications
Brand Name :
Microchip Technology
Model Number :
PIC16F685-I/SO
Certification :
Rohs
Place of Origin :
China
MOQ :
100pcs
Price :
US$
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/year
Delivery Time :
2-3 working days

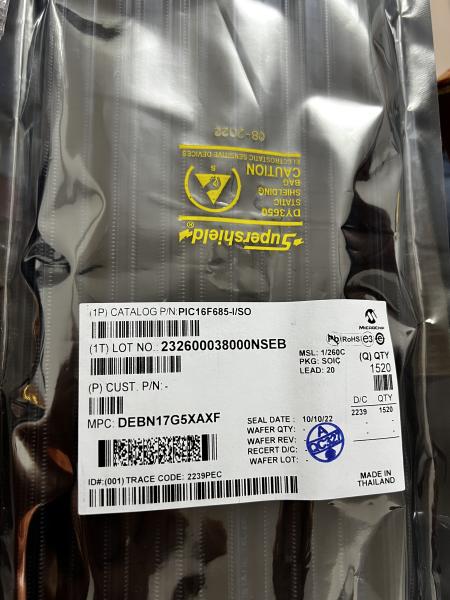

Packaging Details :
1520pcs/box
Package :
SOP20
Stock Conditoin :
New in Stock
Brand :
Microchip Technology
Quality :
New Unit
Description :
IC MCU 8BIT 7KB FLASH 20SOIC
Catagory :
Integrated Circuits (ICs) Embedded Microcontrollers
D/C :
22+
Stock :
In Stock
Description

High Light : eeprom memory / Integrated Circuits (ICs) Embedded Microcontrollers /

Series
PIC® 16F

Original PIC16F685-I/SO from Microchip Technology

Environmental & Export Classifications
Attribute Description
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001

Product Attribute
Attribute Value
Search
ADC Resolution
12 bit
Architecture
RISC
Comparator Type
2
CPU Speed
5 MIPS
Data Rate
5 MIPS
Dimensions
12.80 x 7.50 x 2.35 mm
EEPROM Memory
256 B
Family Name
PIC16
Frequency
20
Height
0.093" (2.35mm)
Input Output
18
Length
0.503 in
Maximum Number of CAN Channels
0
Maximum Number of Ethernet Channels
0
Maximum Number of I2C Channels
0
Maximum Number of LIN Channels
1
Maximum Number of PCI Channels
0
Maximum Number of SPI Channels
0
Maximum Number of UART Channels
0
Maximum Operating Temperature
+85 °C
Memory Type
Flash
Minimum Operating Temperature
-40 °C
Mounting Type
Surface Mount
Number of ADCs
12 x 12 bit
Number of Bits
8
Number of IO Ports
18
Number of Pins
20
Number of PWM Units
1
Number of Timers
3
Operating Voltage
2 to 5.5 V
Package Type
SOIC
Program Memory Size
7 kB
Programmable Memory
7K Bytes
Pulse Width Distortion
1 x 10 bit, 2 x 10 bit, 4 x 10 bit
PWM Channels
1, 2, 4
PWM Resolution
10 bit
RAM Size
256 B
Speed
20 MHz
Temperature Operating Range
-40 to +85 °C
Timer Resolution
8, 16 bit
Timers
1 x 16 bit, 2 x 8 bit
Type
PIC
USB Channels
1 x Device
Voltage Range
2-5.5 V
Width
0 in
