Texas Instruments LM5007SD technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM5007SD.
- TypeParameter
- Lifecycle StatusNRND (Last Updated: 2 days ago)
- MountSurface Mount
- Mounting TypeSurface Mount

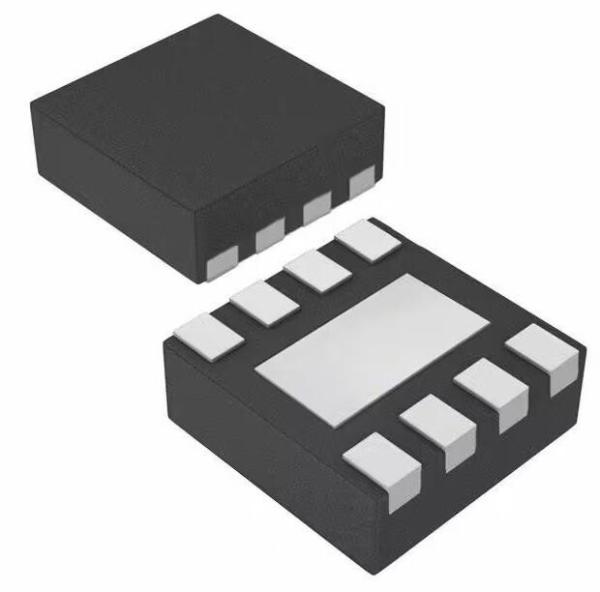

- Package / Case8-WDFN Exposed Pad
- Number of Pins8
- Operating Temperature-40°C~125°C TJ

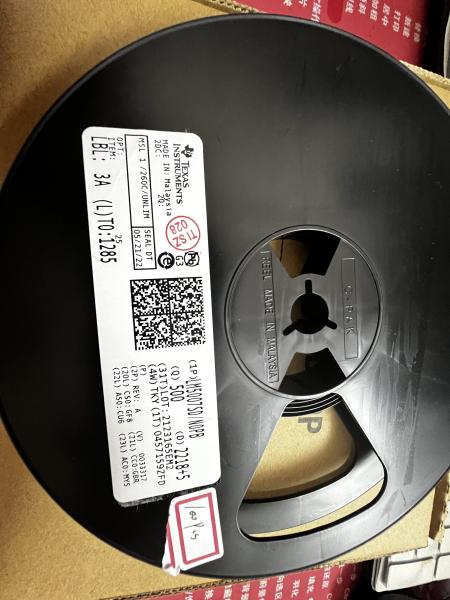

- PackagingTape & Reel (TR)
- JESD-609 Codee0
- Part StatusNot For New Designs
- Moisture Sensitivity Level (MSL)1 (Unlimited)
- Number of Terminations8
- ECCN CodeEAR99
- Terminal FinishTin/Lead (Sn/Pb)
- Terminal PositionDUAL
- Peak Reflow Temperature (Cel)260
- Time@Peak Reflow Temperature-Max (s)40
- Base Part NumberLM5007
- FunctionStep-Down
- Number of Outputs1
- Efficiency93 %
- Voltage - Input (Max)75V
- Output Voltage73V
- Output TypeAdjustable
- Max Output Current500mA
- Operating Supply Voltage7.4V
- Voltage - Input (Min)9V
- Input Voltage-Nom48V
- Analog IC - Other TypeSWITCHING REGULATOR
- Output ConfigurationPositive
- Quiescent Current500μA
- Voltage - Output (Min/Fixed)2.5V
- TopologyBuck
- Synchronous RectifierNo
- Switching Frequency800kHz
- Height800μm
- Length4mm
- Width4mm
- Thickness800μm
- RoHS StatusNon-RoHS Compliant
- Lead FreeContains Lead
