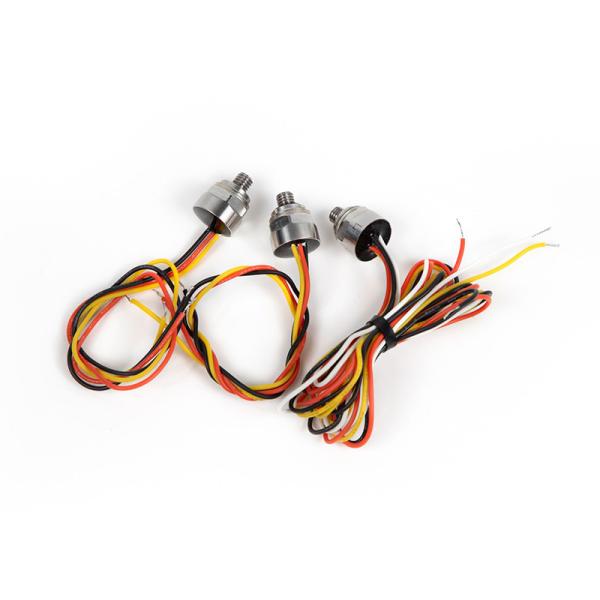

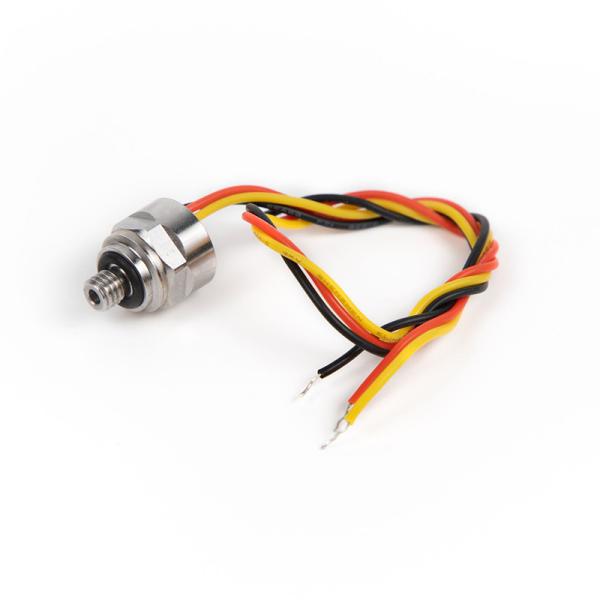

WNK Small Size Pressure Sensor For Coffee Machine Water Dispenser Water Meter
WNK Small Size Pressure Sensor For Coffee Machine Water Dispenser Water Meter
WNK Small Size Pressure Sensor For Coffee Machine Water Dispenser Water Meter
WNK Small Size Pressure Sensor For Coffee Machine Water Dispenser Water Meter
Specifications
Brand Name :
WNK
Model Number :
WNK125SP
Place of Origin :
Chian
Mechanical Connection :
M6*1, Customized
Applicable Media :
Liquid, Gas
Pressure type :
Gauge Pressure, Absolute Pressure
Toal error band :
±1.0%
Pressure Range :
0-5bar, 0~10bar, 0~20bar, 0~40bar
Power Supply :
5VDC
Output :
0.5~4.5V,I2C
Accuracy :
±1%FS
Description

WNK Pressure Sensor for Coffee Machine

The WNK125PS is a diffused silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and doses not require and O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liuqids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in Coffee Machine, Water Dispenser, Water Meter, automotive etc.




Applicable media
Liquid, Gas
Pressure Range
5bar,10bar,20bar,40bar
Pressure measurment
Gauge Pressure,Absolute pressure
Output
0.5~4.5V, I2C
Accuracy(linearity,Hysteresis and Repeatability)
1%F.S.(Typical)
Power supply
5VDC
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
Power(electrical) connect
Customization Connector, Cable outlet
Mechanical Connection
M6*1
Housing Material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP68

Dimensions
