Specifications
Brand Name :
WNK
Model Number :
WNK83mA
Place of Origin :
Anhui, China
MOQ :
10 Pieces
Price :
$6.50/Pieces >=10 Pieces
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
2000 Set/Sets per Week 0.5-4.5V Pressure Sensor
Delivery Time :
5-8 work days
Packaging Details :
each product in one inner paper box with protection
Warranty :
1 YEAR
Customized support :
OEM, ODM
Output signals :
0.5V-4.5V
Measured media :
liquid, gas and steam
Accuracy :
1%F.S.
Protection class :
IP65
Housing material :
304SST
Power Supply :
4.75V-5.25V
Electrical connection :
Parkard
Product Name :
0.5-4.5V Output Brass Pressure Sensor For Air Water HVAC Application
Mechanical connection :
NPT
Cell :
Ceramic capacitive pressure sensor
Port :
shanghai
Description
WNK Brass Pressure Sensor For Water Air Gas

Applicable media Liquid, gas and steam
Pressure range 0-2MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply

4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Parkard
Mechanical connection NPT
Housing material Brass

WNK Brass Pressure Sensor/Pressure Transducer/Water Pressure Transmitter

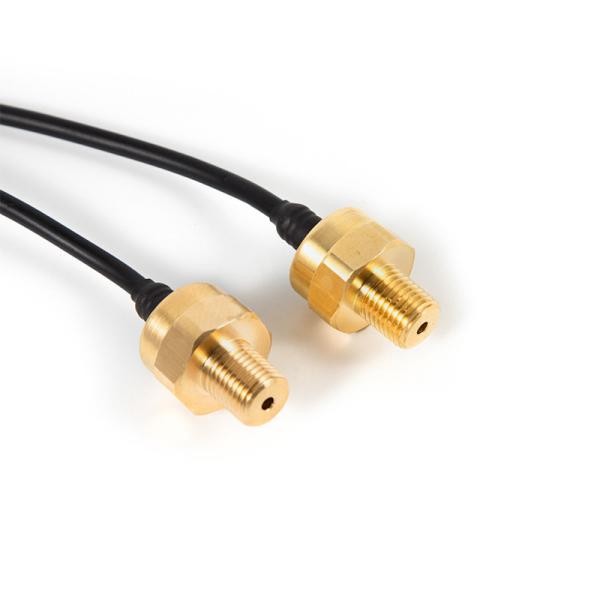

3. Direct cable outlet, G1/4 thread
WNK Brass Pressure Sensor/Pressure Transducer/Water Pressure Transmitter
Product Show

WNK Brass Pressure Sensor/Pressure Transducer/Water Pressure TransmitterWNK Brass Pressure Sensor/Pressure Transducer/Water Pressure TransmitterWNK Brass Pressure Sensor/Pressure Transducer/Water Pressure TransmitterWNK Brass Pressure Sensor/Pressure Transducer/Water Pressure TransmitterWNK Brass Pressure Sensor/Pressure Transducer/Water Pressure TransmitterWNK Brass Pressure Sensor/Pressure Transducer/Water Pressure Transmitter

Hot Product

WNK Brass Pressure Sensor/Pressure Transducer/Water Pressure Transmitter

Company Information

WNK Brass Pressure Sensor/Pressure Transducer/Water Pressure Transmitter

WNK Brass Pressure Sensor/Pressure Transducer/Water Pressure Transmitter

WNK Brass Pressure Sensor/Pressure Transducer/Water Pressure Transmitter

WNK Brass Pressure Sensor/Pressure Transducer/Water Pressure Transmitter

WNK Brass Pressure Sensor/Pressure Transducer/Water Pressure Transmitter

WNK Brass Pressure Sensor/Pressure Transducer/Water Pressure Transmitter

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
