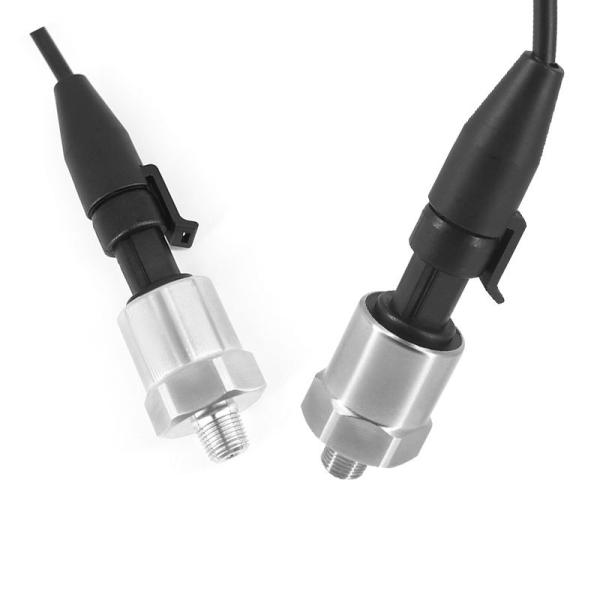

ATEX CE 4-20mA 0.5-4.5V I2C Air Water Pressure Transdeucer Vacuum Absolute Pressure Sensor Transmitter
ATEX CE 4-20mA 0.5-4.5V I2C Air Water Pressure Transdeucer Vacuum Absolute Pressure Sensor Transmitter
ATEX CE 4-20mA 0.5-4.5V I2C Air Water Pressure Transdeucer Vacuum Absolute Pressure Sensor Transmitter
ATEX CE 4-20mA 0.5-4.5V I2C Air Water Pressure Transdeucer Vacuum Absolute Pressure Sensor Transmitter
ATEX CE 4-20mA 0.5-4.5V I2C Air Water Pressure Transdeucer Vacuum Absolute Pressure Sensor Transmitter
ATEX CE 4-20mA 0.5-4.5V I2C Air Water Pressure Transdeucer Vacuum Absolute Pressure Sensor Transmitter
Specifications
Brand Name :
WNK
Model Number :
WNK80ma
Certification :
CE/ROHS
Place of Origin :
Chian
Measured media :
Water, Air, Gas, Steam
Housing material :
304SS, 316SS
Accuracy :
0.5%FS
Pressure range :
10kpa, -100kpa...70Mpa
Applications :
Water Air Refrigerant HVAC, Automobile
Output signal :
4-20mA, 0.5-4.5V, 0--10V, 3.3V, I2C, RS485
Pressure Type :
Gauge Pressure, Absolute Pressure, Sealing Pressure
IP rating :
IP65
Description
Oil Pressure Sensor 4-20ma 0.5-4.5V I2C Vacuum Pressure Transmitter
Product Attributes
Attribute Value
Measured media Water, Air, Gas, Steam
Housing material 304SS, 316SS
Accuracy 0.5%FS
Pressure range 10kpa, -100kpa...70Mpa
Applications Water Air Refrigerant HVAC, Automobile
Output signal 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485
Pressure Type Gauge Pressure, Absolute Pressure, Sealing Pressure
IP rating IP65
Product Description

WNK81MA is silicon oil filled pressure transducer, using imported ASCI signal conditioning chip and diffused silicon oil filled sensor core. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. With long-term stability and high accuracy, it is widely used in the pressure measurement and control fields of HVAC, Auto, Pumping, water treatment and more. Certified with UL, RoHs, Reach, CE, UKCA, WNK81mA will quickly help you expand your market.

Applications
  • Automobile, Compressor and Refrigeration Industry-Engineering machinery
  • Pressure control and monitor
  • Water treatment system
  • Hydraulic and Pneumatics
  • HAVC and BAS Control
  • Pump, fitness equipment, household appliances
  • Factory Automation
  • Fluid Control and Instrumentation Systems
Technical Specifications
Specification Value
Applicable media Liquid, Gas
Pressure Range 0-60bar/-1-700Bar
Pressure Type Gauge Pressure, Absolute pressure, Sealing pressure
Output 4-20mA/0.5-4.5V/1-5V/0-10V/I2C
Accuracy 0.5%F.S./1%FS (Typical)
Power Supply 24VDC/12VDC/5VDC/3.3V
Compensation temperature -20~85ºC
Ambient temperature -40~125ºC
Working temperature -40~125ºC
Temperature drift(zero) ±0.15% F.S. (-20~85ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard, M12, DIN43650, Cable outlet
Mechanical connection G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material 304 stainless steel (inner core is 316 stainless steel)
Protection IP65
Product Images
ATEX CE 4-20mA 0.5-4.5V I2C Air Water Pressure Transdeucer Vacuum Absolute Pressure Sensor Transmitter ATEX CE 4-20mA 0.5-4.5V I2C Air Water Pressure Transdeucer Vacuum Absolute Pressure Sensor Transmitter
Electrical Connection
ATEX CE 4-20mA 0.5-4.5V I2C Air Water Pressure Transdeucer Vacuum Absolute Pressure Sensor Transmitter ATEX CE 4-20mA 0.5-4.5V I2C Air Water Pressure Transdeucer Vacuum Absolute Pressure Sensor Transmitter
