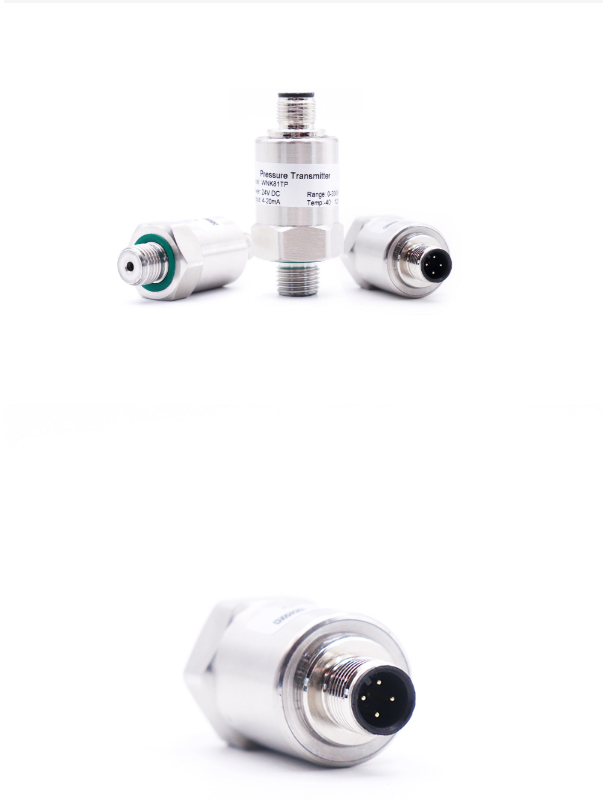

WNK 0.5-4.5V I2C PT100 Temperature Pressure Sensor Transducer 4-20mA
WNK 0.5-4.5V I2C PT100 Temperature Pressure Sensor Transducer 4-20mA
WNK 0.5-4.5V I2C PT100 Temperature Pressure Sensor Transducer 4-20mA
WNK 0.5-4.5V I2C PT100 Temperature Pressure Sensor Transducer 4-20mA
WNK 0.5-4.5V I2C PT100 Temperature Pressure Sensor Transducer 4-20mA
WNK 0.5-4.5V I2C PT100 Temperature Pressure Sensor Transducer 4-20mA
Specifications
Brand Name :
WNK
Model Number :
WNK81TP
Place of Origin :
Anhui, China
MOQ :
1pcs
Price :
$12.00 - $19.00/Pieces
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
2000 Piece/Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
100 pcs per master carton
Warranty :
1 YEAR
Customized support :
OEM, ODM
Application :
Oil&gas, petrol, petrochemical, chemical industry, metallurgy, pharma
Protection class :
IP65
Output :
4- 20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
Housing Material :
304SS, 316L, 316SS
Measured media :
Liquid, Gas, Steam, Oil, Air
OEM service :
OEM, ODM, customization available
Power supply :
5V DC, 12-32V DC
Pressure range: :
-100Kpa ~ 60MPa
Operating temperature: :
-40~85 ℃
Brand name :
WNK
Port :
Shanghai/Ningbo
Description

Temperature Pressure Sensor Transmitter

There is an increasing demand for sensors that can measure temperature and pressure simultaneously.

WNK81TP integrates temperature and pressure measurement in the one sensor, which saves the material cost of the sensor and is convenient for users. It also brings convenience to field installation.

WNK 0.5-4.5V I2C PT100 Temperature Pressure Sensor Transducer 4-20mA

Quik information

1. Temperature range: -40 to 120℃

2.Pressure range 0-40kpa~70bar

3. High performance diffusion silicon oil-filled sensor

4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ I²C + PT100 outputs available

5. Small dimensions, dimension customizble

6. Direct cable outlet,M12

7. OEM, ODM, customization service available

8. Process connector: G1/4, M12*1.5, 1/4NPT

Order code

Model Description
WNK81TP Temp-pressure sensor
Code Pressure type
A Absolute pressure
G Gauge pressure
Code Measure range
A 0.4bar
B 1.6bar
C 4 bar
D 10 bar
E 25 bar
F 40 bar
G 70 bar
H Special to be costomized
Code Output
1 0.5…4.5V + PT100
2 4…20mA + PT100
3 I2C + PT100
4 Costomized
Special to be costomized
Code Electrical connector
C1 M12×1P
C2 Cable output A( Please advise the required cable length, such as 01 for 1 meter )
C3 Cable output B( Please advise the required cable length, such as 01 for 1 meter )
Code Process connection
P1 G1/4
P2 1/4-18NPT
P3 1/8-27NPT
P4 M14×1.5
P5 M12×1.5
P6 1/4-19PT
P7 7/16-20UF(female)
P8 Costomized
Special to be costomized

Typical model code:WNK81TP GB2 C1 P1

WNK81TP GB2 C301 P1________C301 able length 1 meter
