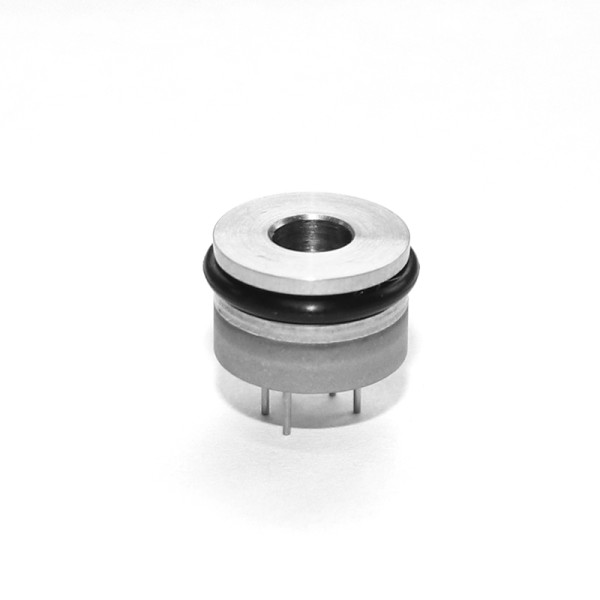

WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers

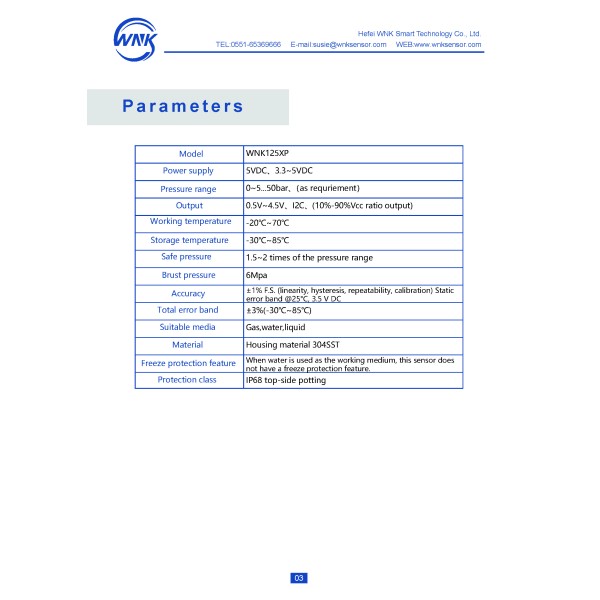

Specifications
Brust Pressure :
6Mpa
Output :
0.5V~4.5V,I2C,(10%-90%Vcc ratio output)
Suitable Media :
Gas,water,liquid
Model Number :
WNK125XP
Accuracy :
±1% F.S. (linearity, hysteresis, repeatability, calibration)
Brand Name :
WNK
Place of Origin :
Chian
Pressure Range :
0~5...50bar,(as requriement)
Storage Temperature :
-30℃~85℃
Protection Class :
IP68 top-side potting
Power Supply :
5VDC,3.3~5VDC
Working Temperature :
-20℃~70℃
Description

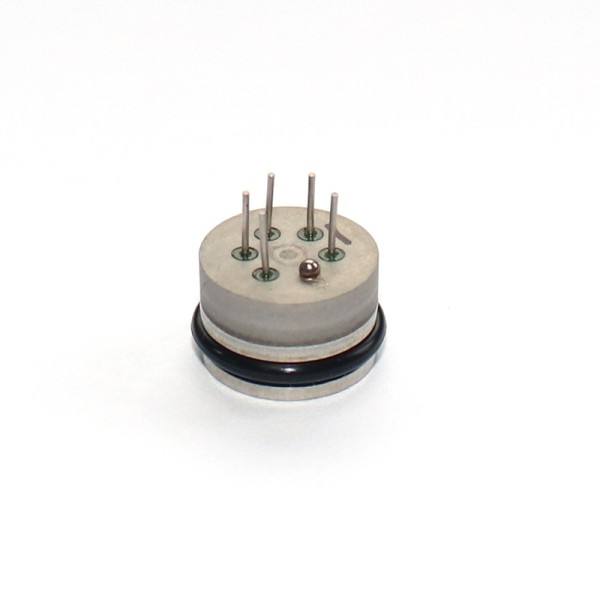

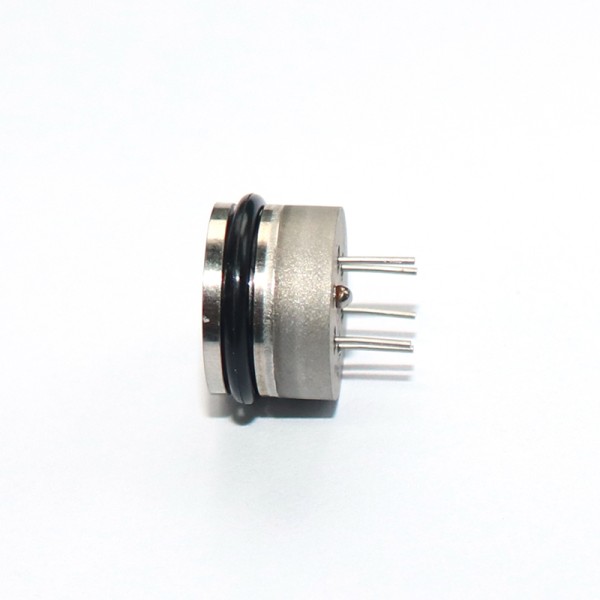

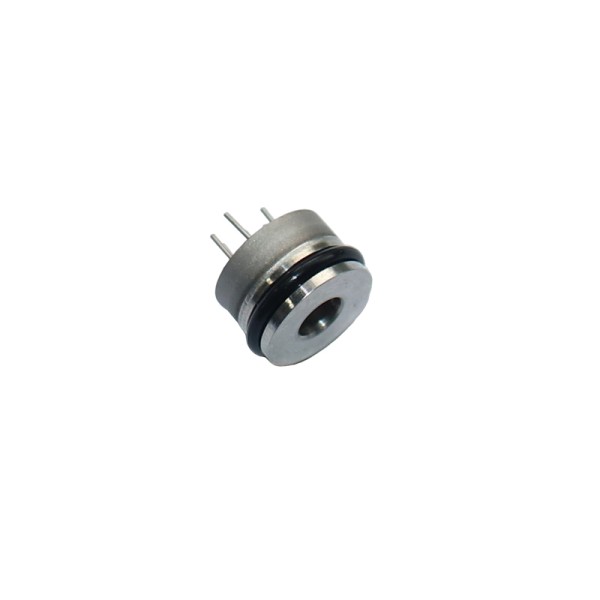

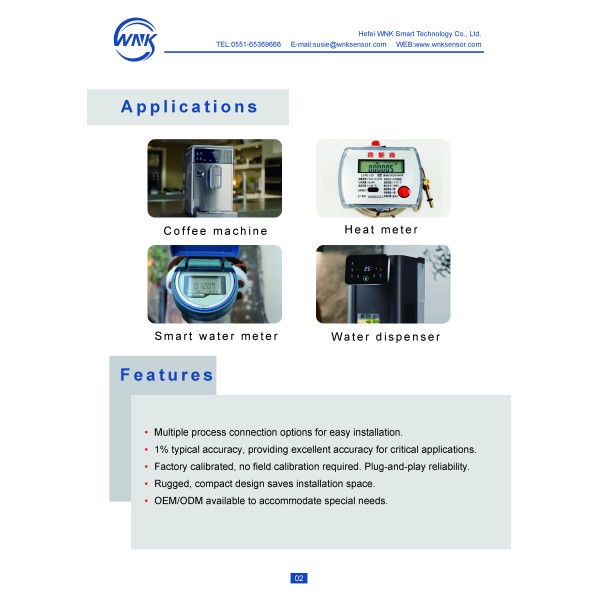

The WNK125XP is a mini size diffused-silicon pressure sensor featuring a fully welded stainless steel construction, ensuring excellent sealing performance. Its compact design allows engineers to save valuable space during product development. This pressure sensor offers high temperature stability and measurement accuracy, and is primarily used in applications such as coffee machines, water dispensers, heat meters, and smart water meters
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
WNK 0.5-4.5V Diffused Silicon Pressure Sensor for Coffee Machines Water Dispensers
About this supplier
Hefei Wnk Smart Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production, sales, and service of various advanced and reliable sensors and transmitters. We are committed to providing users with sensor, transmitter, and product technology solutions tailored to different application needs in different fields. Since its establishment in 2004, WNK has provided reliable products and comprehensive services to customers from over 160 countries worldwide. The goal of WNK is to enable more customers to obtain better products and services at lower prices.
